"Introduction to all kinds of industrial crushers"
⚙️ Dryer
This device is installed after the spiral salt sand and helps to absorb the wind sand in the sholat (sand slurry mixture). After entering the slurry mixture on the drying bed, it is vibrated and the vibration of the bed of this machine vibrates the washed sand and the excess moisture and water of the sand is absorbed, and as a result, the washed sand at the output of this machine is compared to the washed sand at the output. Snail salt sand reduces moisture by 50% and reduces water consumption.
⚙️ Two -axis feeder
What is a Grizzly Feeder?
Grizzly two-axis feeder is one of the most practical feeders used in mines, which is widely used for the regular guidance of coarse stones to primary and secondary crushers. It is similar to other feeders and has the ability to adjust the output by means of a valve and shaft gears.

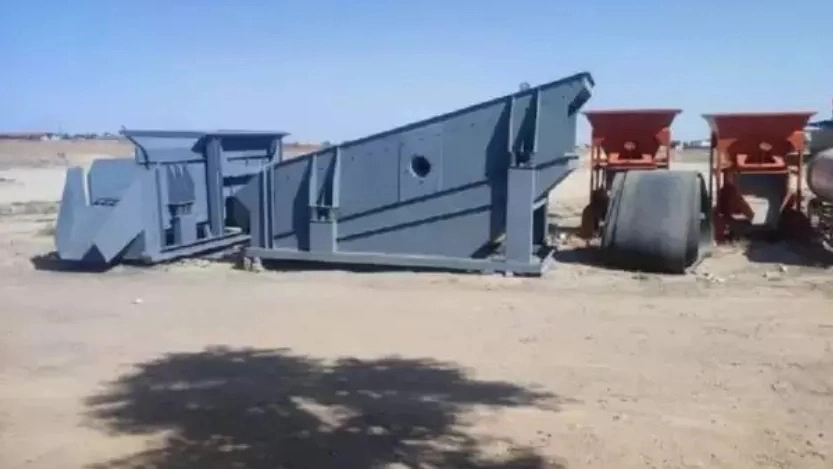

Vibber
The characteristics of the vibrating stone crusher are: In the vibrating stone crusher, sheets without welding seams are used in the body. In a vibrating stone crusher, iron beams are used in the construction of floors to increase their resistance and prevent them from breaking. The vibrating screen of the stone crusher has a standard slope for regular granulation of materials. Alloy steel is used in the construction of shafts in the vibrating sander.
For separation and granulation of crushed products in the stone crushing lines, they use the vibrating screen of the stone crusher. The vibrating screen separates sand and other products based on size. This separation is usually done by creating vibration in the path of the grains on the screen of the vibrating screen of the stone crusher. Regular vibration is created in all parts of the net. The presence of very strong shock absorbers on both sides of the vibrating stone crusher also ensures that the vibration remains only in the separation and nets and does not transfer to the chassis and base of the vibrating stone crusher.

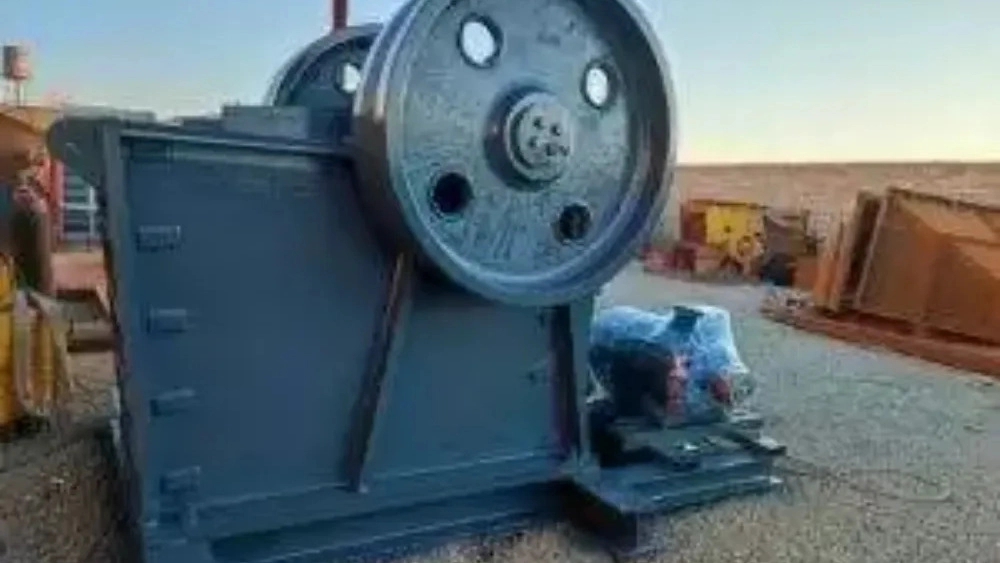

⚙️ Jaw Crusher
This series of stone crushers is used as the primary stone crusher.
These stone crushers are able to crush materials with a compressive strength of 320 MPa.
These machines have a strong body, It is stable, high capacity, easy to maintain and economical.
⚙️ Hydrocon
Hydrocon is one of the types of cone crushers that are used as primary or secondary crushers in mines.
Sturdy structure, high power and capacity in crushing stones, easy adjustment, maintenance and repair costs. Below is one of the unique features of this device.
All the main parts of the device that are in direct contact with the load are made of manganese steel with molybdenum, which have a very high resistance to wear. The automatic lubrication system is used by establishing a constant flow of oil and delivering it to the round bottoms, bronze bushings, gears and shafts.
⚙️HS10
Qubit stone crusher is one of the mineral crushing devices, which is one of the first equipment of processing lines in most mines and mineral processing factories. These systems are also known as impact crushers. This device is designed for crushing work through the rotations of the rotor and is used as a primary and secondary stone crusher in processing plants. Among the types of this device, it can be divided into the jack type and the normal type, in both of which the body can be opened and reassembled. Other features of this device include the possibility of replacing parts and upgrading the device and adjusting screws of the output load opening to control the sizing of output materials.
This device is mostly used to crush mineral raw materials with high hardness, because crushing these materials requires stronger power and blades, which is not possible in other stone crushers. And it is considered one of the usual equipment of sand workshop lines. Due to the high inertia of the rotor, this device requires less driving force, and its internal parts and equipment are abundant, and there is no need to worry about replacing parts and finding them.
⚙️ Calling
Today, conveyors play an important role in the development of transmission and transportation systems and are used in various industries, factories and advanced and up-to-date companies. Using conveyors, raw materials, semi-finished products, or finished products are easily and continuously and safely transported to the desired location in a short period of time.
The conveyor belt has one or more layers. For example, a three-layer belt that has a rubber coating on the top, bottom and manjid. The type of material to be carried and its weight should be taken into account when making a manjid with different materials. Messengers can be made of steel, polyester, nylon, aramid, linen, etc.
The most important components of the conveyor belt can be roller, drum, electric gearbox, metal chassis, rubber, roller, electric motor, gear and chain. , money and so on.

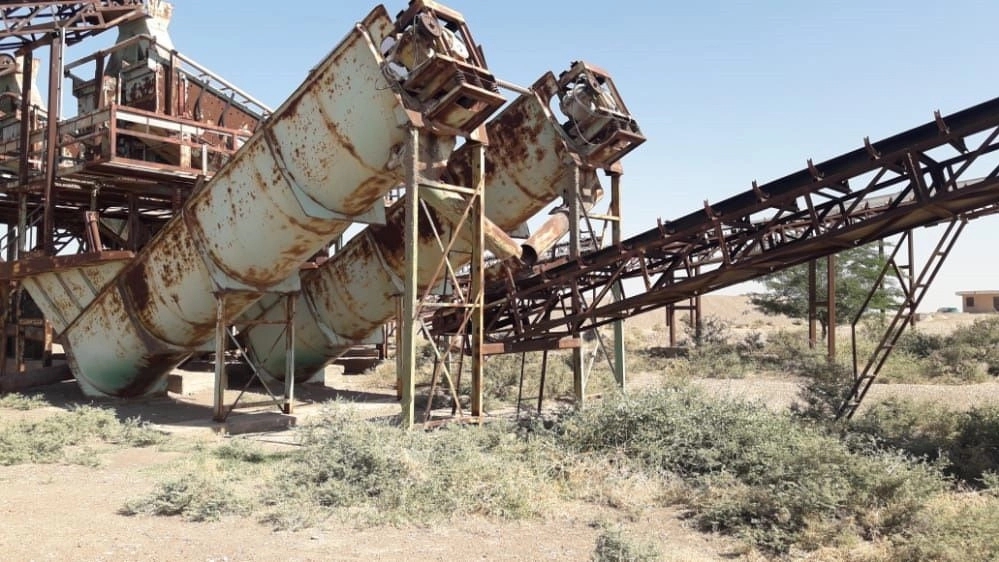

Salt
Spiral salt sand is one of the equipments that is suitable for washing sand with a size of 0 to 6 mm or pea and almond materials in sand mines. The spiral salt sand mechanism includes a basin and a spiral blade. which is rotating at a certain speed and to perform the washing operation, the materials are poured into the basin filled with water and directed by the vane towards the outlet of the machine, and the final product without water is poured out and the washing operation is carried out.
⚙️ Vibble Fedor
Vibrating feeder feeds and directs the materials entering the mines and is one of the equipments of the material transportation and separation subcategory, which is usually placed at the beginning of the production process. This device is designed and built in such a way that it guides the load regularly and with the capacity to adjust the load, and with the help of the adjustable output valve, it carries out the mechanical operation of the load guidance.
