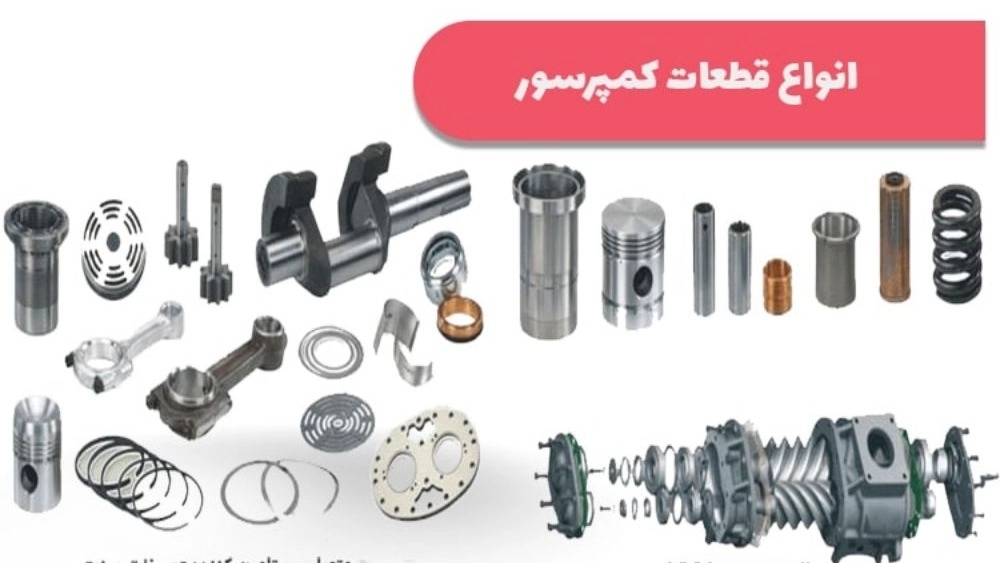

Compressor Side Effects
Water trap: absorption of coarse oil and water droplets up to 20 mic in the air coming out of the compressor, which is similar to a steam trap, the water trap prolongs the life of faucets and pneumatic equipment. It creates high-quality air consumption in production.
In fact, the air produced when entering the water trap is placed in the centrifuge and rotation path, and the deposited droplets inside the compressed air are transferred to the moisture discharge path.
Thermostat: because the systems work with different temperatures, they need to be controlled to work with heating or cooling mechanisms. In other words, the thermostat is used to control the temperature of the operator's inlet water, which exists in one-stage, two-stage and multi-stage types.
Compressor filter (oil, air, separator) Air Filter - Oil Filter - Separator Filter
Oil has a great effect on the use of the compressor and the efficiency and lifespan of the compressor, for example, when the device is turned off or during the summer season, according to the usual working hours, 700 or 2500 oil should be changed. Also, the lack of quality causes damage during the start of the compressor.
Temperature sensor
Among the other side parts of the compressor, the sensor is for temperature control, in such a way that it gives an order to stop or operate the compressor by increasing and decreasing the temperature, and it has an input and an output.
Compressor Pressure Sensor:
Sensor, which means sensor, is one of the side parts of the compressor and is known as pressure transducers, pressure transmitters, pressure transmitters, pressure indicators, and metromanometers, which are used to measure the pressure through the effect of a follower. Electricity is converted into an electrical signal by the effect of electrical pressure.
Heat Exchange heat exchanger
For correct and reliable operation and energy reduction, a heat exchanger is used that transfers heat that is physically separated and does not come into contact with each other, usually in the form of shells and spirals, u-shaped, spiral, etc. are.
Compressor radiator:
The role of the radiator in the compressor is for two basic actions, i.e. cooling the air and cooling the oil. The compressed air has an increased temperature based on the molecular kinetic theory, and the oil used for lubrication and cooling has an increased temperature that must be cooled. The two mentioned operations, i.e. air cooling and oil cooling in the radiator, are performed simultaneously. The fluid is circulated through the radiator tubes, which are made of spongy aluminum, and the heat is separated from the fluid by displacement and fan.
Intercooler:
In a group of compressors, to produce the required pressure, two air conditioning units are used, which are designed in a series (consecutive) way, for example, in the first air conditioning unit, 5 bar air is condensed, and after leaving the second air conditioning unit, this density is 8bar, the compressed air arrives from the outlet of the first air-conditioning unit, its temperature has increased, which needs to be reduced before the second-stage condensation, the intercooler does this.
Elderly (After Cooler):
due to the effect of air compression based on the molecular theory of air, the temperature has increased, the temperature of the condensed air needs to decrease, this action is done by the radiator, which passes through the tubes of the liquid The aluminum material is spongy and the fan takes the heat of the liquid and the temperature drops.
Gear Wheel compressor gearbox
The gear wheel of the screw compressor must be cut from a special alloy and plated on it in the hard working part so that it can work at high temperature and high speed. This piece is also one of the side parts of the compressor.
Valve valve
Between this piece and the valve seat, the valve is sealed. It is one of the most vulnerable parts of the valve and its surface is polished, so special attention should be paid to this part and the part of the seat that is connected with it.

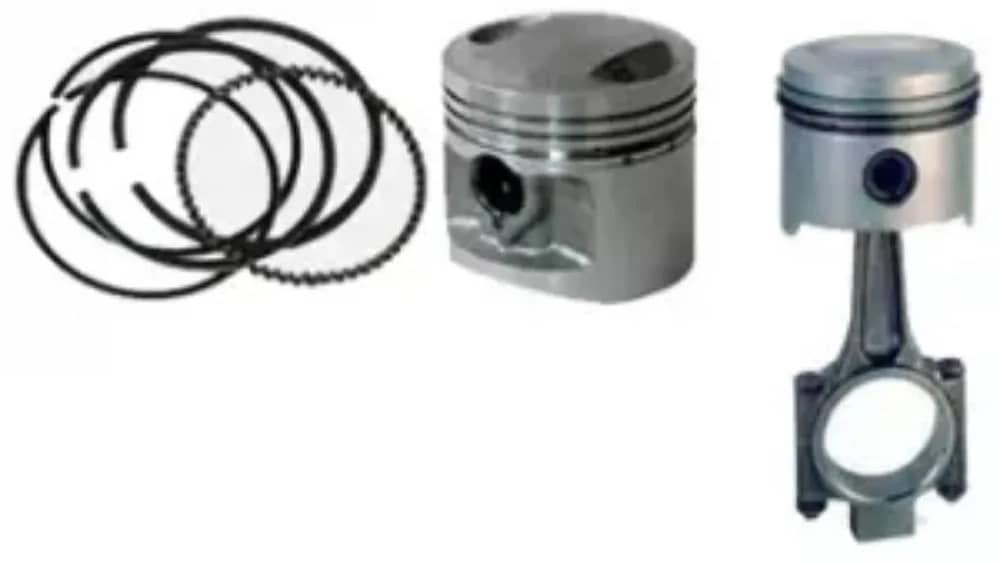

Piston Piston
It is a moving part that is placed inside the cylinder and it actually transfers the power using a connection called a connecting rod. In the compressor, the power is transferred from the crankshaft to the piston. It is made of aluminum alloy and is the first part of the engine that It starts to move and produces energy.
