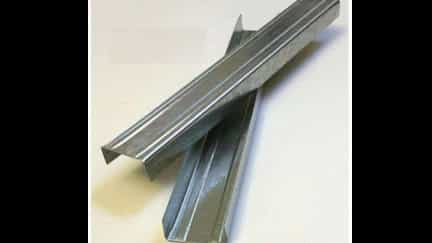

Kenaf profile structures are made of galvanized steel sheets. As mentioned, these structures are made by cold rolling technology with a roll forming machine. This structure is prepared in two ways, master and runner sections.
Master: The master is the vertical part of the steel frame in the structure of dry walls. The master structures are installed vertically from each other at average distances of 30, 40, 60 cm and are used as the substructure of the panels. The depth of this structure is 50, 70, 75, 100 mm. Another name for that structure is c, because it is c-shaped. This structure is produced in two types, DIN and NF.
Runner: The runner is the horizontal part of the steel frame in the structure of dry walls. This structure is U-shaped, that's why its other name is U structure. The use of this structure is in the ceiling and floor and the conductor of the master structure in the wall as well as around the opening. The runner structure of this profile is available in two types, DIN and NF. Also, the master and runner profiles of Kenaf can be easily installed. In addition to these two structures, which are the main factors of the construction of the Kenaf profile, there are other important components to improve the performance of the wall, which we will discuss further. Corner or Corner Conflict Protector Professor Profile
This structure is used to install the external corners of the profile, which has a significant effect in creating triangular and uniform edges. The main role of the corner protection structure is to prevent damage from possible impacts.
edge structure with Gi willow profile
This profile structure is used for uniform and smooth designed decorations. One of the advantages of this structure is protection against the impact of free edges.
Structural seam of Canaaf Profile Disposal
This Kenaf profile structure is used as a seam cover, because continuous walls with a long length need to create a gap seam. So far, we have talked about the galvanized substructure, including the components of the Kenaf profile, now we are going to examine another of these important components, including plaster-coated plates - gypsum panel.
These profile plates include cream-colored coating. It is with the blue seal of Kenaf on the back. The use of these plates is general and they are produced in thicknesses of 5, 6, 9, 12.5 and 15 mm. Also, these plates are used to implement the wall and roof of the Kenaf profile. Panel Resistant Panel MR Profile of Humanity
This type of Kenaf profile plates are made of fibers and simple plaster panels and special additives. The specifications of these pages are in the form of a green cover with a blue Knauf stamp on the back. One of the features of the resistant panel is its resistance to moisture, and these panels are generally used in humid places.
Fire Profile FR Fire Profile
As can be seen from the name of these pages, the FR resistant panel is made of fireproof compounds and fibers that are resistant to fire. Covering metal columns and beams with Kenaf profile is one of the advantages of these panels and plates.
FM FM Panel Panel Profile against Moisture and Fire
This profile panel is used in places where, in addition to humidity, there is a possibility of fire. Installation ducts are among the advantages of these panels.
Gardex Profile Pages
These profile sheets include a cream colored cover with a blue Kenaf seal on the back. The use of these plates is general and they are produced in thicknesses of 5, 6, 9, 12.5 and 15 mm. Also, these plates are used to implement the wall and roof of the Kenaf profile.
Panel Resistant Panel MR Profile of Humanity
This type of Kenaf profile plates are made of fibers and simple plaster panels and special additives. The specifications of these pages are in the form of a green cover with a blue Knauf stamp on the back. One of the features of the resistant panel is its resistance to moisture, and these panels are generally used in humid places.
Fire Profile FR Fire Profile
As can be seen from the name of these pages, the FR resistant panel is made of fireproof compounds and fibers that are resistant to fire. Covering metal columns and beams with Kenaf profile is one of the advantages of these panels and plates.
Gardex Profile Pages
These profile plates are new products that have recently entered the market. The gypsum core of these panels has special compounds in such a way that both sides of these plates are covered with a layer of fiberglass.
Feature The Gardex profile pages of Kenaf are: Environmentally friendly Fire resistance Moisture resistance Mildew resistance High breathability Diamant profiles of Kenaf The gypsum core of this Kenaf profile panel is made of glass fibers and silicone materials. The density of these panels is higher than gypsum panels, so these panels can be used to achieve higher resistance.
acoustic and air purifier plates in the profile of Cannabi
These profile sheets are produced and made of zeolite. One of the advantages of this material is reducing the level of pollutants in the air. The cracks and holes that are made on the surface of these plates and panels also cause sound absorption. And this action causes a sharp reduction in the sound pollution of the working and living space.
Among other components of the Kenaf profile for the Kenaf wall, the following can be mentioned: • Pointed page connecting the panel to the KenafTN structure • Cermet page for connecting the panel to the KenafTB structure • Pointed screw connecting the structure to the LB structure • Head screw connecting the structure to the LN structure • Screw connecting the structure to the dry structure FN Also, other components of the Kenaf profile for sealing materials can be mentioned as follows: • Sealing tape • Tranfix separating adhesive tape • Fugen Fuller sealant • Mastic coating plaster
