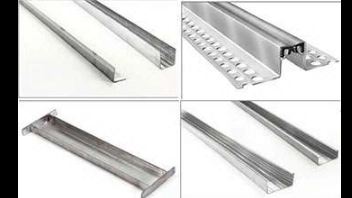

Types of Conflication

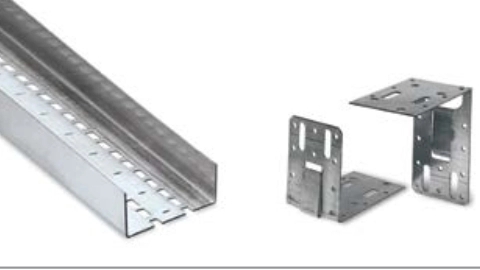

UA structure:

Its material is made of galvanized sheet and its thickness is more than 2mm and it can bear the load. It is a structure that can be used as a load-bearing structure It can be used to strengthen the infrastructure (master + runner). Application: Use of UA structure in the structure of dry wall in places such as around the door with high weight (25kg/m2) and windows, frames and places that need canning as well as heavy openings

Supporting structure (SP60):

* This structure is used to install vertical loads of facilities such as pipes, etc. * Kenaf structures (K Plus) cannot be used as supports because they are not thick

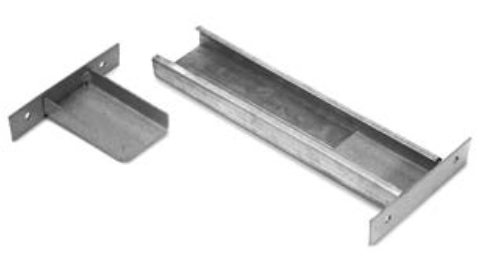

Support connection part (SC47):

This part is used in such a way that it is placed between two F47 roof structures and its shape is T-like and mostly for Electricity and water cans are used, this support can also be used for electrical and mechanical installations.

Ceiling structure:

The section of this structure is "C" shaped and it is produced in two types named F47 and CD60. F47: The F47 structure is a roof structure and is used in the roof (for underlaying the false ceiling) and because it is cheaper compared to the CD60 structure, this structure is used more in the country, and because of its form, it is indicated by the English letter "F". This structure is considered one of the panel structures and its thickness is 0.6 mm. Its width is 47mm, its wing height is 1.7mm, and the length of each branch is 4m CD60: Its use is the same as the F47 structure and it is a roof structure and it is used in the roof and it is used as the substructure of the panel structure, but its dimensions are larger and its resistance is greater, and in terms of standards and efficiency, it can be said that it is higher than the F47 structure. And if the standard is higher than the cost for someone, it is suggested to use this structure as infrastructure. They have a higher performance both in terms of earthquakes and loading European countries, as well as Persian Gulf countries and Turkey, their infrastructure is completely CD60

Integrated roof level structure:

This structure is produced in two types named UD28 (with stud section) and L25 (with corner section).

UD28 structure: The UD28 structure is the level structure for CD60, that is, if we want to use the CD60 structure, which is the foundation of our roof, the level structure must be UD28. If you want to use F47, its level structure must be the same angle as L25

Getting started: For our false ceiling, the first thing we have to do is to implement the level structure first. For example, the client wants the ceiling to be 25 cm lower than the original ceiling, so the first thing to do is to level the walls on the walls. We specify the data (we mark its path on the wall with a laser and a colored string and we do the work around the level structure) and the work becomes very easy and the middle structures are easily leveled. The level of our roof that was obtained, according to the same structure, we execute the level of the rest of the structures.

L25 structure: Because it looks like "L" and the pillow is 25mm, it is used as a level structure in the false ceiling If our level structure is CD60 ——-> UD28 level structure (corner) If our level structure is F47 ———> L25 level structure (corner)
