Taco, Takho, or sensor hall are all names of the same piece. The tacho, the rotor position sensor, is part of the washing machine's automatic system. This sensor helps the control part of the device to ensure the correct operation of the washing machine. Takho monitors the motor of the washing machine and adjusts the correct operation of the washing program.
Where is the Takh?

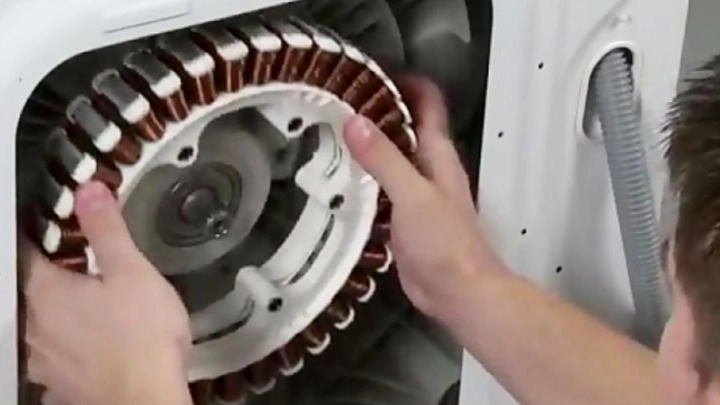

The tacho is located on the stator (fixed part of the device), behind the engine. In most cases, you can see the motor by opening the washing machine and removing the back panel. In the next step, you can also remove the rotor by unscrewing the main screw located behind the motor. In this case, the stator is determined to be in the form of a large ring and has multiple copper windings. You can easily unscrew the stator bolts, remove the stator and disconnect the electrical connections that go to the tacho. Depending on the type of washing machine you have, this sensor may be a small plastic rectangle with three square holes in the middle and is mounted on two or more stator coils.
how does it work?
When the washing chamber rotates due to the rotation of the rotor inside the motor, the tacho, which is installed on the stator and is located near the rotor inside the motor, remains stationary. The electrical current in the tacho tracks the position and speed of the rotor and sends this information to the electronic control unit of the washing machine. By receiving this information, the control department makes the necessary decisions about the washing process and has control over the correct operation of the various components of the system.
3 Reasons for Breaking the LG Washing Machine
There may be different reasons for the part of your LG washing machine to fail. In such a situation, for example, the washing machine shakes violently during operation or when draining water, the water does not reach the desired level for washing. In the following, we will refer to these cases:
* Strong power fluctuation
* Moisture penetration
* Unbalanced load
One of the reasons that causes the LG washing machine to face problems is the intensity and weakness of the electricity current. In such a situation, pressure may be applied to the tacho and it will stop working.
Solution:
If you know that the electricity in your house or area is fluctuating, we suggest you a Put an electrical protector in the way of the washing machine. In this way, strong and weak power pressure can no longer damage your device. 2. Moisture penetration
One of the other reasons that cause problems with Takho's performance is the exposure of the LG washing machine to moisture.
Solution:
To solve this problem, you need to put the washing machine in a place that is not exposed to moisture.
You can also check the hoses as well as the valve behind the washing machine so that if they are leaking, you can quickly solve this problem and avoid damage. Avoid getting tacho.
3. Unbalanced load
One of the things that can cause a lot of damage to the LG washing machine is putting more clothes than the washing machine can handle into the pot for washing. As you know, there are different types of washing machines in the market with the ability to wash a certain weight of clothes. Of course, the degree of wetting and heaviness of the clothes is also taken into account. For example, you can put 4 kg of clothes in an 8 kg washing machine. But if this amount is more than the limit, pressure will be applied to the drum, motor and also the washing machine and cause problems for washing.
Solution:
To prevent damage When buying an LG washing machine, you should keep in mind that the amount of clothes in the washing machine should not exceed the capacity of the machine.
