Nowadays, there are four ways to build a villa that has the necessary standards of the municipal bodies and the engineering, housing and urban planning systems. data so that all our customers are sure of choosing their method and do their work with confidence.
1- LSF prefabricated structure (light steel frame)
2- Construction of a villa with a wooden structure (full wooden frame - round slats)
3- Building a villa or a metal frame (cans - iron beams - sheet beams)
4 - Building a villa with a concrete frame
Definition of LSF structure Lsf

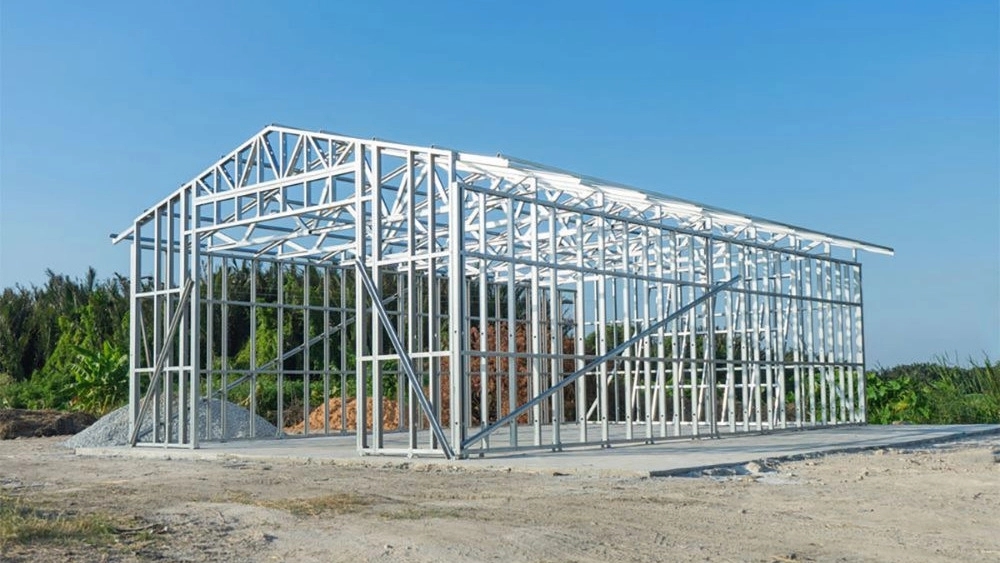

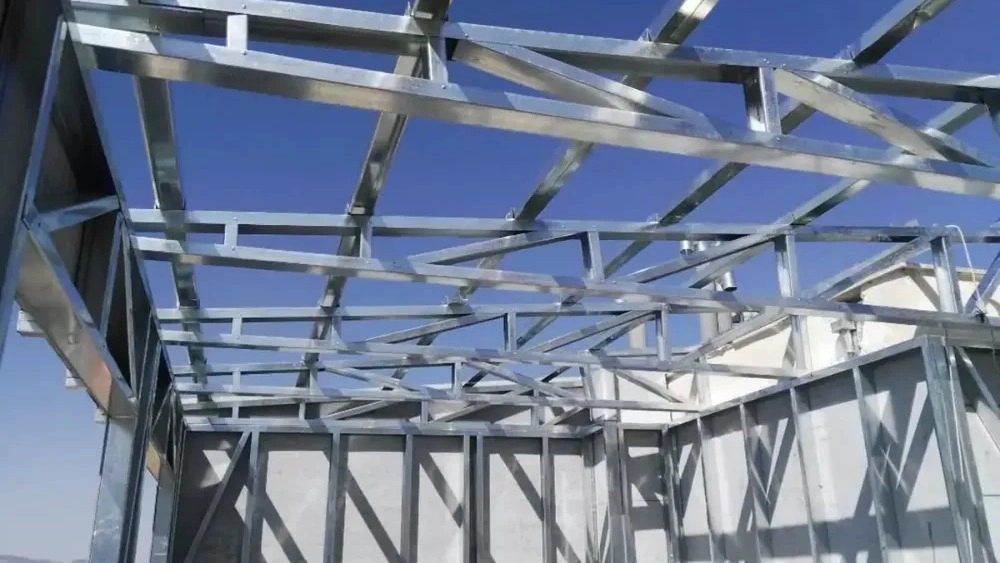

Light steel structure, which is abbreviated as LSF (Light Steel Frame), is one of the modern building systems that is used to implement buildings with limited floors, usually up to 5 floors. It is used and it is one of the systems approved by civil engineers in developed and modern countries.
LSF structure (LSF) is a prefabricated and light structure that is produced at the factory site based on the architectural plan of the building and then at the building site using drill head screws, bolts and Other connections will be installed
Connections of LSF structures (LSF)
LSF structures are used to build prefabricated lightweight walls. These structures, which are based on cold rolled steel or CFS structures, have light weight and narrow width. The idea of LSF structures has been expressed to deal with earthquakes in seismic areas, which due to its light weight and high flexibility can well neutralize thrust and stress energies caused by earthquakes. reduce the destructive effects of earthquakes in the construction industry to a significant extent. is raised The pressure that is applied to the building due to the thrust energy in an earthquake can break thick concrete and iron steel. Perhaps the reason for this is the lack of proper connections of concrete and steel structures. Therefore, it is better to use structures that can be flexible during an earthquake.
Concrete structure, advantages and disadvantages
Concrete structure is mostly used in high-rise buildings and it is less used in villa construction due to the thickness of the structure column and its visibility in the building, but there are people who build their structure only with concrete. Concrete structure is made of concrete due to the high strength of the column and roof.
Technical specifications and applications
The design and implementation of the building is done with the method of LSF light steel frames based on the AISI (American Iron and Steel Institute) standard, and the sections are cold-formed. The construction speed of these types of structures is very high with a calculated planning. Cold-rolled sheets are protected against rust and corrosion by galvanizing.
The connections of this system can be implemented by automatic screws or welding. The foundation operation is much simpler and less bulky than the foundation of traditional buildings.
In areas with high seismicity, the use of this method is very important due to the significant reduction of the dead load of the building, and the destruction of the building, especially sudden collapse, practically does not happen. br>Thickness of the non-load-bearing structure 0.4-0.85
Galvanized sheet material, coating 180 microns and above
Automatic screw connections - welding
The shape of U, C, and Z sections and combined sections
