Stone is considered one of the most widely used materials for building facades and interior decoration of houses. To use stone in the facade and interior decoration of buildings, they must be cut first. There are many tools for cutting stone, most These tools require a lot of power and high experience for an ideal cut, but today, with the advancement and growth of stone cutting machine technology, they have been able to create the best cutting surface for you with the least power and the least work experience.
The main components of the stone cutting machine
The main engine of the machine
Normally, the engine power of stone cutting machines varies from 1.5 to 4 kW (in portable and workshop models), the most important thing about the engine Stone cutting machines protect the engine against splashing water, to solve this problem machine manufacturers usually use splash resistant engines or protective frames to prevent water impact. Note: stone cutting machines are also They are produced in single-phase and three-phase models. They must use water to warm up while working, for this purpose, all workshop and portable stone cutting machines have water equipment including tank, water pump and float. Note: To increase the life of the water pump, it is better every few days. Drain the water in the tank completely once and drain the mud settled in the tank.
Liner Guide (moving rail)
One of the most important parts used in linear guide stone cutting machines is the moving rail of the machine, this rail must be designed correctly and have no defects so that the machine can move smoothly on it, usually the material used in The linear guides are chrome shafts and in some machines, iron profiles. Note: every few days, use oil to lubricate the chrome shafts. Razor frame Disc saw
The frame of the disc saw blade is where the motor is connected to the hub of the disc saw blade, usually the engine of stone cutting machines either directly or through a gearbox (models that can adjust the speed have been connected to the frame where the circular saw blade is located, among other components installed on the circular saw blade frame, it is possible to refer to the circular saw blade protector and the water guide tube. Do not remove the disc saw blade when cutting.
Types of stone cutting machines
portable stone cutting machine (mobile)

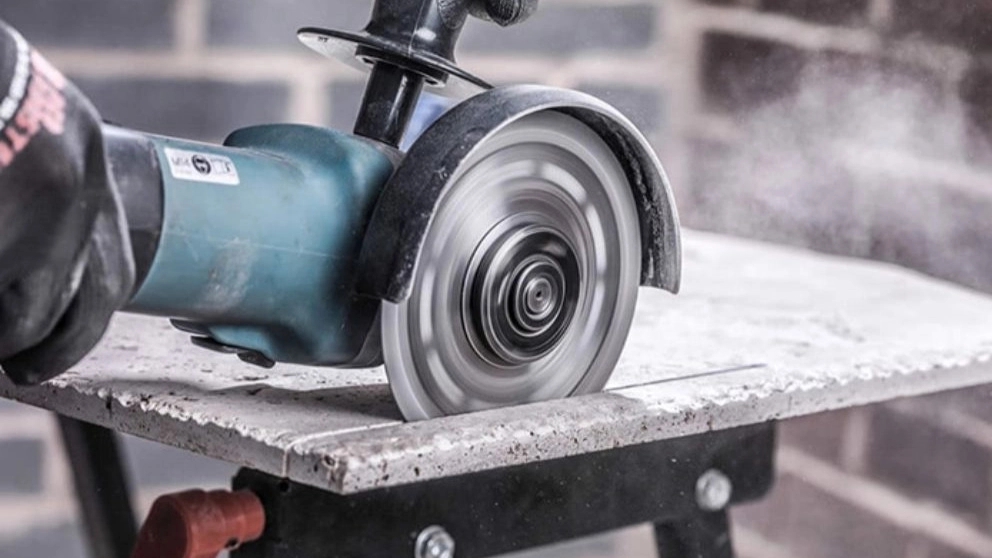

In most cases, cutters need to perform cutting operations on site to increase speed and reduce time, portable stone cutting machines The reason for the relatively low weight and the necessary equipment for moving is the best option for this, portable stone cutting machines are produced in different models and have the ability to cut all kinds of stones from 65 to 265 cm in length, most of the stone cutting machines are capable of cutting. They have an angle of 0 to 60 degrees. Stone cutting machines are produced in both manual and semi-automatic models; In manual models, the movement of the device is done by the operator and in semi-automatic models by a semi-automatic gearbox.

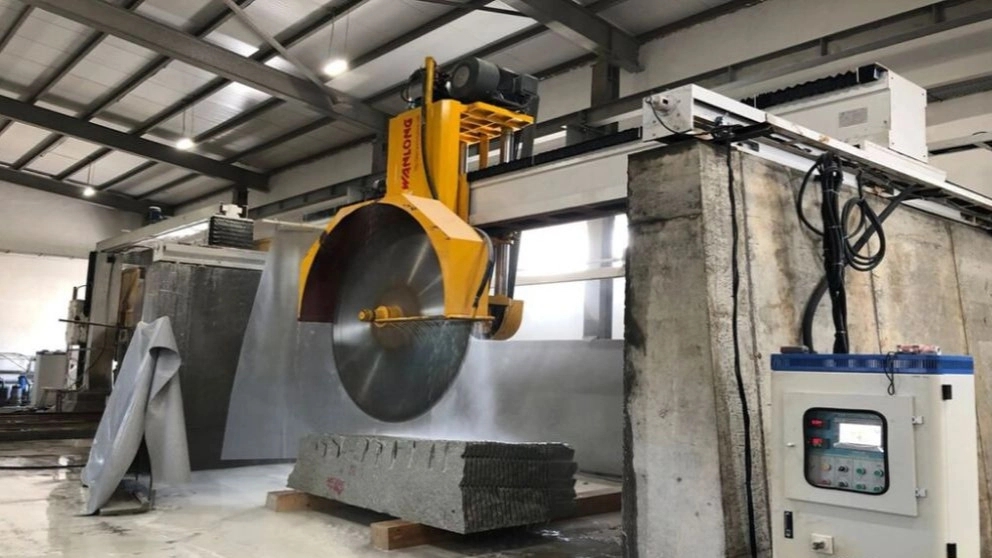

Workshop stone cutting machines As it is clear from the name of the device, it is suitable for use in heavy and workshop work, unlike portable stone-cutting machines, workshop stone-cutting machines have a lot of weight and must be fixed in their location, workshop stone-cutting machines have higher engine power and The cutting length is longer than the portable models, workshop stone cutting machines have excellent performance in continuous cutting, and some models have the ability to adjust the engine speed and the automatic movement of the device, the ability to cut under an angle (Persian) Berry) is also present in most workshop stone cutting machines.
