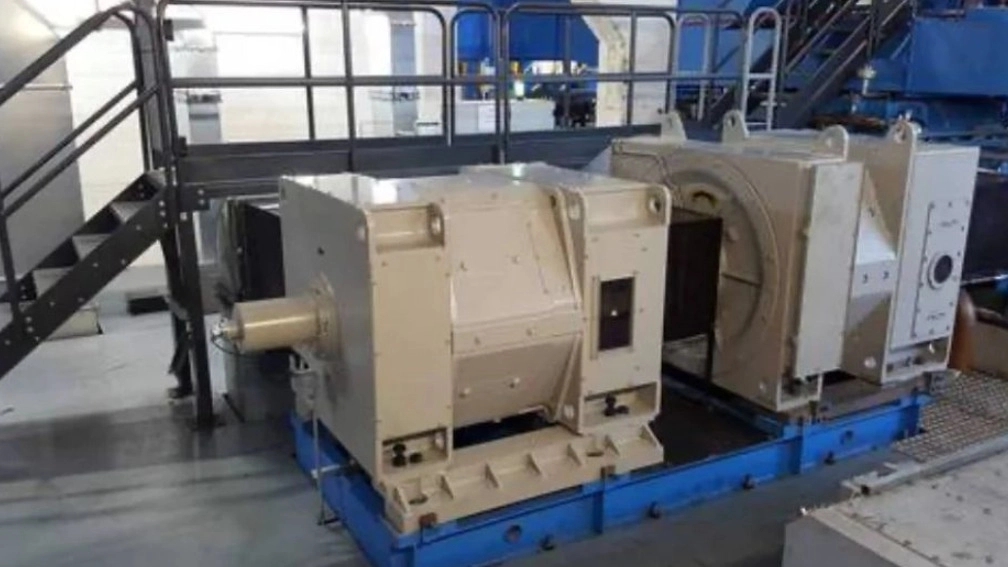

🔵 Heavy industrial DC motors for rolling mills from Sicme Motori
Sicme Motori's SM/ML series heavy industrial DC motors are designed for use in heavy duty applications such as steel mills, rolling mills and mines. These motors have slanted armature grooves that ensure consistent torque even at low speeds.
Common applications:
- Steel factories
- Rolling mills
- Aluminum factories
- Mineral industries
🔵 Features and technical specifications
🔵 Design and standards
Heavy industrial DC motors of SM-ML series of Sicme Motori company based on A.I.S.E. standards. are designed and include the following features:
- Output power (torque, speed, power, etc.)
- Overall dimensions and connection dimensions
- Dimensions and position of ventilation valves
These motors are completely interchangeable with other DC motors that meet A.I.S.E. standards. have been produced The technical specifications and dimensions of these motors are determined based on technical report number 1-1991/IPSS 1-03-002-94 and general characteristics and tests in accordance with IEC60034-1.
🔵 power source
These motors are fed from fully controlled three-phase bridges and do not require a yoke if the armature current shape factor is 1.05.
🔵saturation operation
SM-ML series DC motors use the VPI impregnation process with solvent-free resin, which increases the life and performance of the motors.
🔵 Coil terminals
The armature winding connections to the commutator are made through TIG welding, which makes for a strong and reliable connection. 🔵 Experience and Customization
With extensive experience in DC motors and drives, Sicme Motori can customize motors based on customers' specific needs. This capability helps customers find the right engine for their new application or upgrade existing installations. Heavy industrial DC motors of SM-ML series with torque up to 17400Nm are used in mining and rolling applications all over the world. These engines meet the standards of A.I.S.E. They are fully compatible and easily replaceable with other DC motors. Due to these features, Sicme Motori's SM-ML series DC motors are an ideal choice for heavy applications in various industries.
