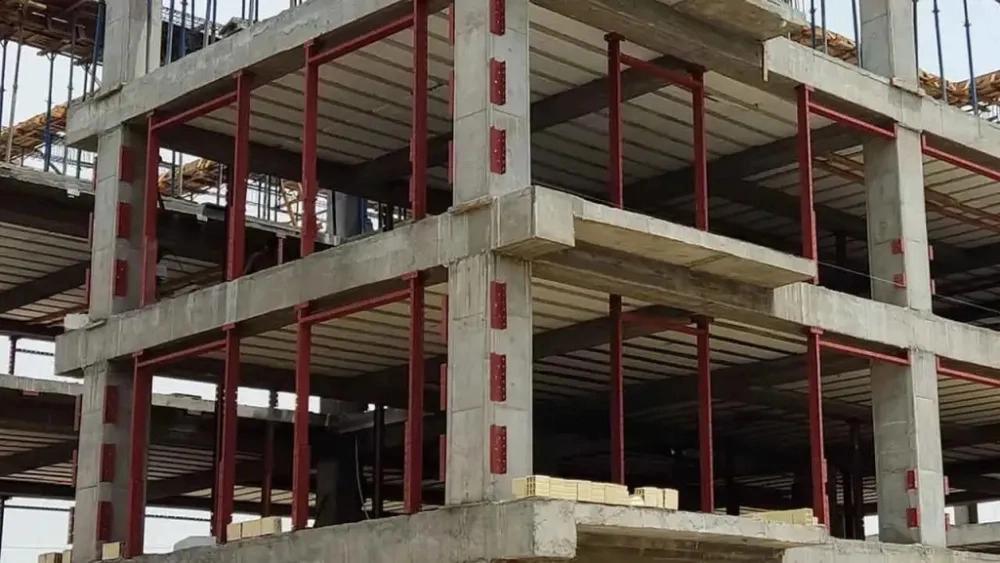

Wall post is a member that connects the structural and non-structural intermediate frames and the blades to the building skeleton, to resist the lateral forces of wind and earthquake. Interframes are walls that are renamed due to their connection or non-connection to the structure and are divided into 2 categories of structural or non-structural intermediate frames. Blades are also walls that run outside structural frames, and their naming has nothing to do with the thickness of these walls.
Wall Post Runs agenda
1) Implementation of the base plate under the concrete beam and at the location of the wall post, before concreting the roof.
2) If Before concreting the base plate, we must connect the plates to the beams from above and below with roll bolts. Under no circumstances should you use 3 cm steel nails that are installed by a nailer (Hilti gun) to install the plates to the beams. Also, it is not possible to connect the post wall to the beams according to the shape and with the rebar.
How to run the correct wall
Structural and non-structural intermediate frames and supervisor's duty: In buildings where the building designer has included the wall stiffness in his calculations during the design, the walls can be directly connected to the column and ceiling. But if this difficulty is not included in the calculations, the contractor is not allowed to directly connect the wall in the middle frame to the structure. In order to separate the wall from the structure, the post wall should be installed with a distance of 5 cm from the column, and at the time of the porcelain wall, bent rebars should be welded into the corner at the height of the wall and at a distance of 70 cm from each other, and this distance of 5 cm from the corner Fill the column with plastofoam.
