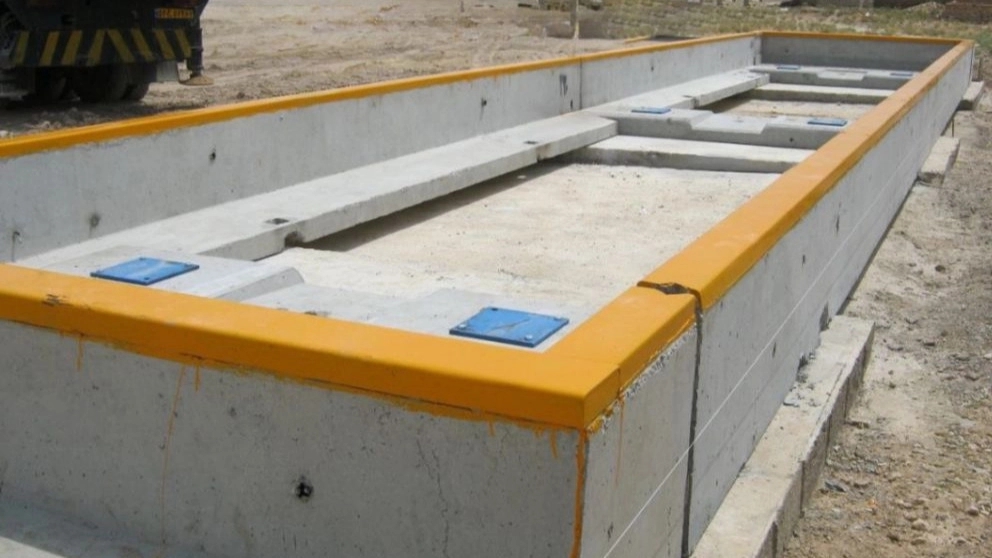

💠 Fund
The bottom structure of the scale, which is made up of rebars (rebars) twisted together and plates (base plates) for the placement of weight sensors (load cells), and the space between the rebars is filled with concrete after molding. The role of the foundation is to reduce the pressure caused by the weight of the load and prevent it from settling and sinking in become the ground Some manufacturers provide the foundation in a prefabricated form and transport it to the site for installation. The remarkable point about the prefabricated foundations is that the speed of the construction and the strength of the concrete (provided it is executed under controlled conditions and materials) and proper processing of concrete) in it is more, and its cost (due to less excavation) is less than the case of implementing the foundation in place.

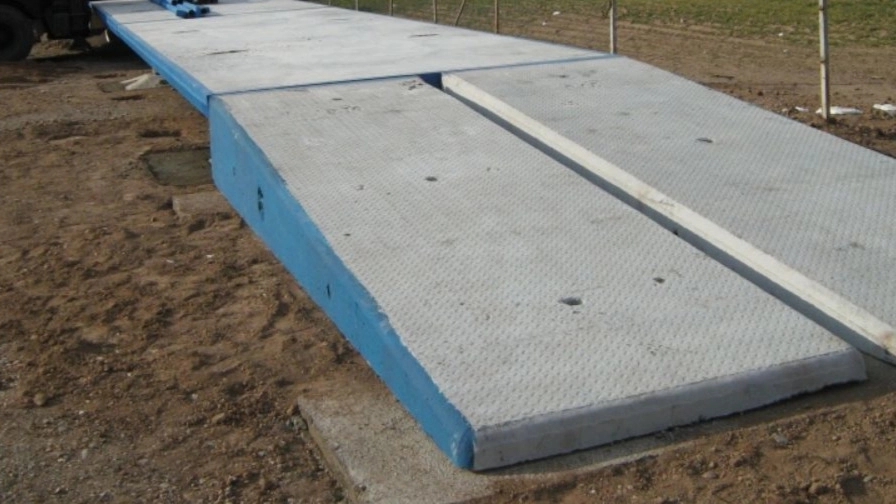

💠 Page
i.e. the weighing plate or platform or the main structure, is the most visible face of the weighing structure and the place where the load is placed. The purpose of building the structure is to achieve a surface that, while bearing the force caused by the weight, correctly transfers the force to Accurate weighing is obtained. Therefore, the accurate design of the structure for the correct transfer of power to the weight sensors (load cells) requires accurate design by engineering software and the use of experienced experts. The load plate also has metal, concrete, and concrete-metal types; The type of concrete-metal usually does not have the ability to be moved after installation.
Electronic equipment
which itself has several sub-sections including weight sensor (load cell), distribution box, connection wires, indicator, printer, outdoor display, traffic light and roadblock.
