Application of silicone in candle wire

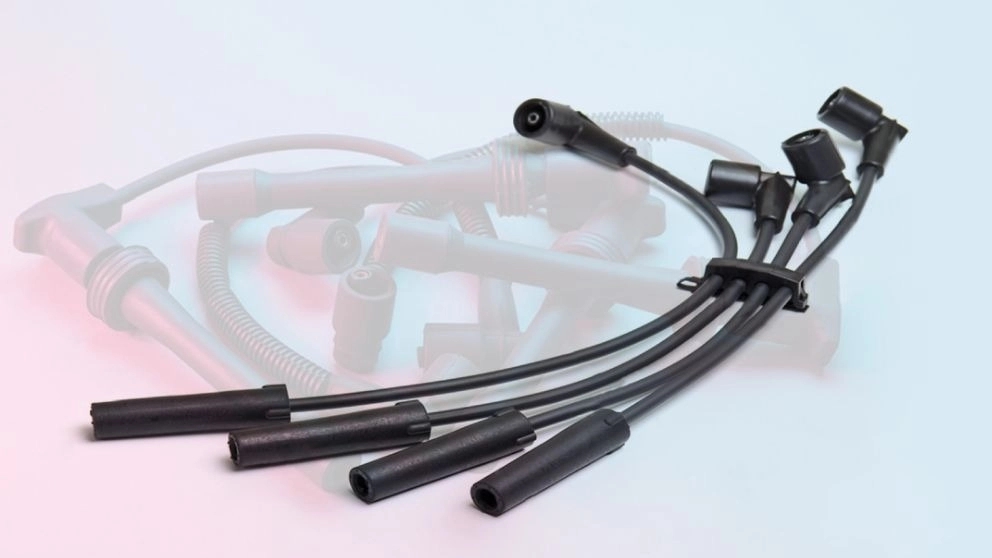

☑️ Silicone candle wire

Silicone spark plug wire is a cable that is responsible for transferring electricity from the coil or delco of the car to the spark plug. The candle wire cable is made of Class F silicone material, which is suitable for transmitting 40kv instantaneous voltage.

☑️ Silicon use in candle wires

The reason for using silicone as insulation for spark plug wire cable is its durability, resistance and strength against destructive factors inside the car engine, including high heat. Engine, oil leaks, antifreeze in the engine compartment. It can be said that silicone is almost resistant to all these factors and increases the life of the spark plug wire cable.

☑️ Benefits of silicon pile wires

☑️ Silicone Candle Wire Characteristics are:

⚫️ It has low resistance to electric current ⚫️ It has protective layers against moisture, dust, oil and wear ⚫️ It has high flexibility and ability to bend ⚫️ It has a long life and the least need for replacement

☑️ Silicone Candle Wire Structure

1. Caps for connecting to spark plugs and coils 2. Connection sockets 3. Cable wire candle

☑️ Types of silicone pile wires

Silicone candle wire is generally divided into three categories.

☑️ Wireless wires

The conductor in this wire of candles is steel or copper type. Due to the use of this conductive material, noise and interference occur in the transmission of electricity. These interferences have a direct impact on the performance and the way the car's ECU works. Therefore, the use of this type of spark plug wire is obsolete.

☑️ Silk candle wire

This category of wire spark plugs, which have been used the most until today, due to their flexibility and high resistance in all types of injection vehicles. and carburetor are used. To transmit electricity in this type of wire candles, several threads similar to silk, which are impregnated with graphite, are used. And they do not have any noise and jamming. But the big disadvantage of this type of cables is that the current with the right voltage does not reach the spark plug of the car, and as a result, it reduces the efficiency of the engine and then increases the fuel consumption of the car.

☑️ Wire of the coil candle

Currently, the best, most used and most efficient type of car spark plug wire cables is the bobbin type. This type of cable has conductivity such as nickel-chromium alloy, which is wound around the core as an inductor, and the low resistance of the conductor of this type of cable increases the speed of electric current transmission to the spark plug, and does not affect the performance of the car's ECU in several stages of jamming and noise reduction. put.

☑️ The structure of wireless wireless candle cable

☑️ Fiber Glass Fiber or Aramid Fiber

The innermost part of the cable is the pile wire and its main function is to reduce interference. And in addition, it also causes the mechanical strength of the cable.

☑️ Freight coating

It is used as a coating of fibers and prevents noise.

☑️ Nickel chrome coil (nicom)

The electric current is carried out by this layer of the cable, which is in the form of an inductor, and it is also the conductive part of the cable.

☑️ Silicone insulation

This layer comes as a cover on the cable conductor and while helping to reduce jamming and noise, it also prevents the wastage of electrical energy. In addition, this part is also responsible for protecting the conductive layer of the wire against destructive factors and makes the cable stronger.

☑️ Fiber Fiber Glass Texture

This layer, while maintaining full elasticity, makes the cable strong and connects the middle silicon layer to the outer silicon layer.

☑️ Final silicone layer (protective insulation)

It is the outermost layer of the cable and keeps the inner layer coherently together, and its task is to protect the inner layers against heat and contact with oil.
