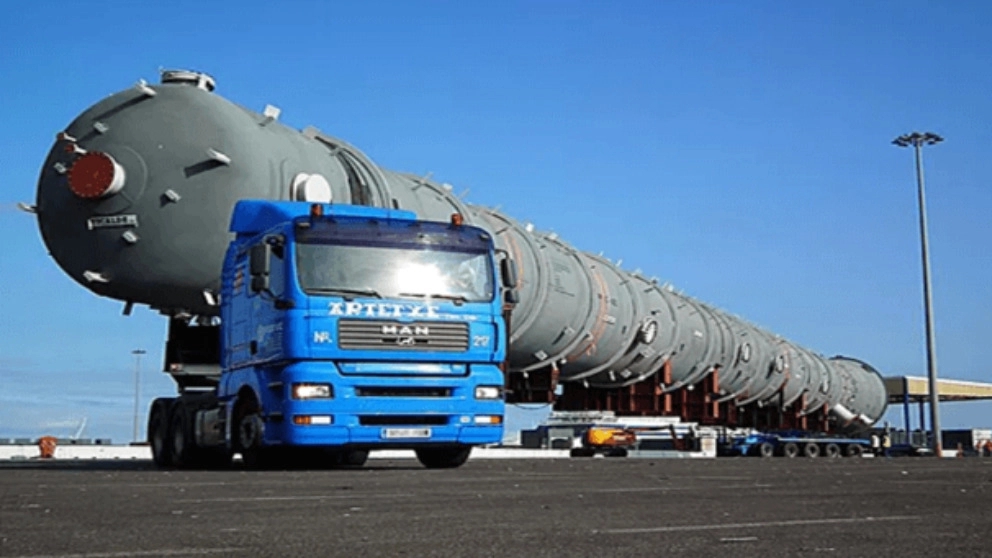

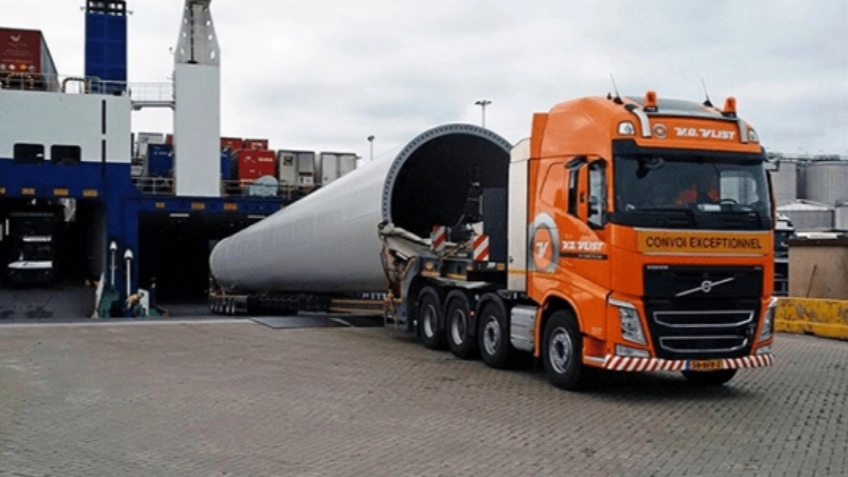

A traffic truck is a truck that carries a larger and more voluminous cargo than the standard one. The cargoes carried by these trucks are included in the traffic plan.
مان Types of traffic trucks
>
🔹Specifications of the 6-wheel room traffic truck:
Length of the truck room: 5.80 to 6 meters, width of the truck room: 2.20 meters and carrying capacity up to the ceiling 10 tons.
The point that should be considered is that the cargo should be almost 2 cm smaller than the walls of the truck room.
🔹 10-wheel room truck :
This type of traffic truck is used to transport cargoes that have a larger volume or weight than a 6-wheel room truck.
🔹 Characteristics of the 10-wheeled traffic truck:
Length and width of the truck room are 80.6 to 7 meters and 2.25 meters respectively, carrying capacity up to 15 tons.
The point that was said about the 2 cm distance between the cargo and the walls of the 6-wheel truck room also applies to this type of truck. This type of traffic truck is used to move packaged cargo. Unlike the floor trolley, this type of truck is used to carry cargo that is not large.
🔹Specifications of the tented trailer truck:
Length and width of this device. Carrying capacity is 12 to 13.60 meters and 2.50 meters respectively, height from the ground to the top of the tent: 2.60 to 2.85 meters and load carrying capacity: 22 tons.
🔹Jumbo truck:
Jumbo trucks are among the largest transit vehicles and the length of the cargo carried by them is not less than 13.60 meters. .
. There are different types of backbreakers, and in this section we will describe the characteristics of each one. Total length (tractor length plus trail): 16.50 meters, length of floor or cargo: 8 to 9 meters, width 2.60 meters, total weight of the device with load: 40 tons and load carrying capacity: 24 tons. p>
🔹4-axis back breaker:
Total weight: 24 tons, total weight of the device and load: 62 tons, total length including the length of the device and trail: 20 meters, length Floor or cargo: 11 to 12 meters, width: 3 meters and cargo carrying capacity: 38 tons.
🔹11-axis backbreaker:
The axes of this type of backbreaker are: 3 vehicle axles plus 4 dolly axles plus 4 trail axles. Dolly weight: 10 to 12 tons, total weight including the total weight of the device, dolly and trail: 41 tons, total back-breaking weight with load: 96 tons, total length including the total length of the device, dolly and trail: more than 22 meters, floor length or Load capacity: 11 to 12 meters, width: 3 meters and load carrying capacity: 55 tons. It is used to move traffic cargoes that are loaded by cranes and do not need packaging.
🔹Specifications of this type of traffic truck:
Floor length: 10 to 13.60 meters, height from the ground: 1.40 to 1.70 meters , width: 2.40 to 2.50 meters and load carrying capacity: up to 40 tons. Although it is almost similar to room trucks, it has a higher weight and volume carrying capacity compared to them. The feature of this type of vehicle is that it is possible to open all the side doors for easier loading and unloading. Height from the ground: 1.40 to 1.50 meters, height of the walls: 80 to 120 cm, length of the floor or sequence: 12 to 60.13 meters, width: 2.40 to 2.50 meters and load carrying capacity : 40 tons.
