☑️ Industrial connections
Industrial connections are one of the main links in the piping industry. Wherever it is necessary to lay a pipeline for the purpose of transferring fluids, industrial connections are also needed. As you know, industrial connectors are different from each other in terms of their types and applications. Even the type of fluids that are supposed to pass through the constructed pipelines can determine the type of connections and their resistance.
Industrial fittings that are used in the piping industry are as follows, each of which has its own definition and use.
☑️ Types of plumbing joints:
☑️ Brain connections:
Usually, the use of nuts is to connect two pieces of piping components. Or, when it is necessary to change the diameter of the pipes, nuts are used. Nuts are one of the most widely used industrial connectors. A piece of cast iron whose two ends are so-called ribs is called a nut. Brains are classified in two ways. Brains called Topich Topic and Brains called Simple. Of course, there is another nut in industrial fittings, both ends of which are threaded, and its length is usually less than 30 cm.
☑️ Tube cap:
Another industrial connection that has its own place and application is the pipe cap. Caps are used to block pipes that are not going to be used for the time being. Square caps are usually used for smaller diameter pipes and hexagonal caps are used for larger diameter pipes. Caps are used in construction piping to reserve pipelines and block them. Inspection valves are also one of the uses of these industrial connections.
☑️ Masora Nut:
If we intend to connect 2 pipes together, we use a pipe nut. The bead of the coils consists of 3 parts. Their beginning and end parts have threads, which are also called male and female. The middle part of the spool nut also acts as a connector and connects 2 pipes to each other. When a pipe is punctured or broken, the defect can be fixed by cutting the defective part of the pipe and using a spool nut.
☑️ Industrial connections in the form of three -way and four -way:

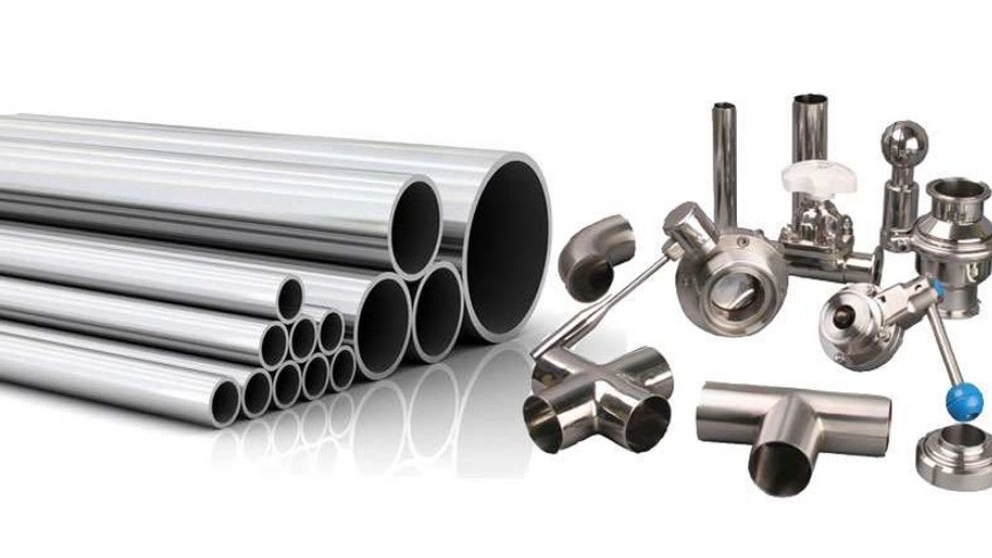

One of the most widely used industrial connections are interfaces that are produced in different forms and to achieve different goals. Tees are one of them. Wherever we want to have a new branch of a pipeline, we use a tee. There are different types of tees, including conversion tees, equivalent tees, and 45-degree tees.
The four ways also have exactly the same use, but the four ways are used to take 2 different branches from the same pipe. Remember that four ways are usually not used for branches of small diameter pipes. By means of conversion tees, we can connect pipes with different diameters to each other and actually make a new branch from them.
