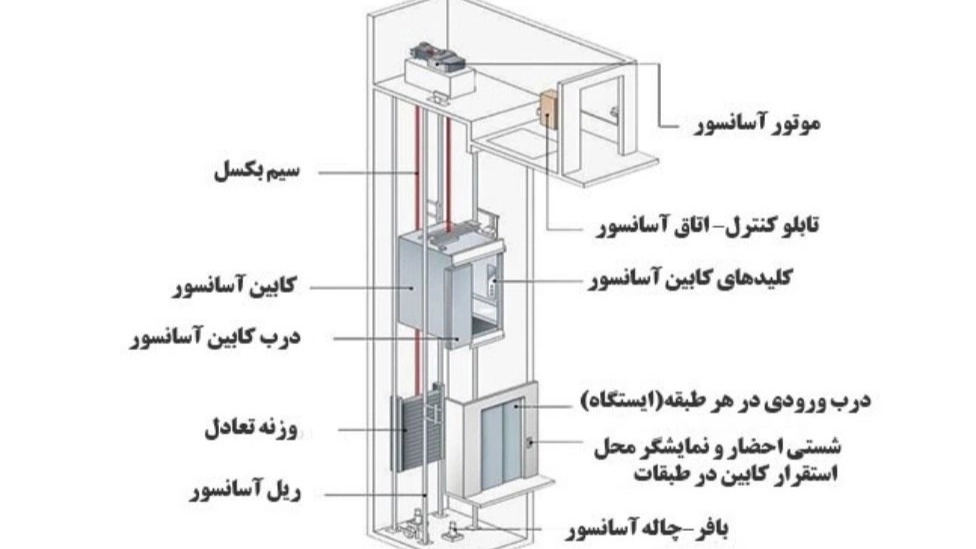

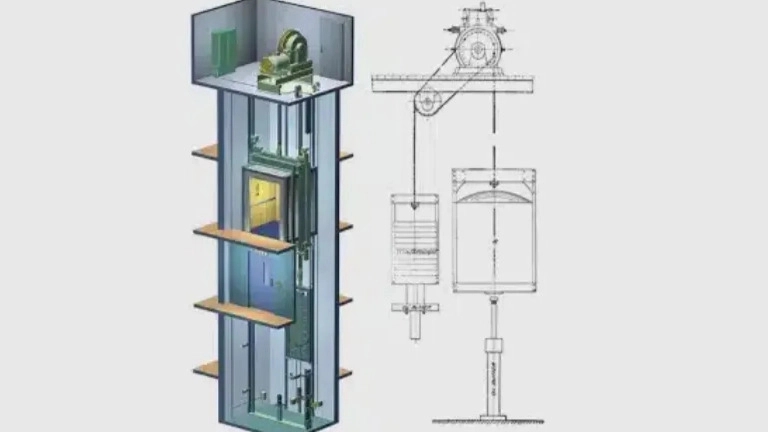

✳️ Machine Dimensional System:
One of the main components of the elevator, which is the main factor of movement in the elevator, is its motor. Engines are available with and without gearbox.
✳️ Car Cabine:
It is a part of the elevator that has a completely safe door, and passengers or cargo can be placed inside it, and it is possible to control the movement from the inside. It can be selected from the type of furnace painted sheet, formica coating, steel coating and glass, so this type of cabin is called glass (panoramic).
✳️ Control Panel:
Among the other main components of the elevator, we can mention the part that is located in the engine room of the elevator and its task is the complete control of the elevator, which plays an important role in the relationship between the components of an elevator. The control panel is divided into two main categories:
- Microprocessor which is used in two-speed elevators.
- Microprocessor with VVVF control drive which is used in single-speed elevators. It takes a breath.
One of the advantages of this drive is reducing energy consumption by 50%, reducing the depreciation of the gearbox motor and preventing the shock caused by the start and stop of the elevator. In addition, the movement in these types of elevators is done smoothly by using the drive.

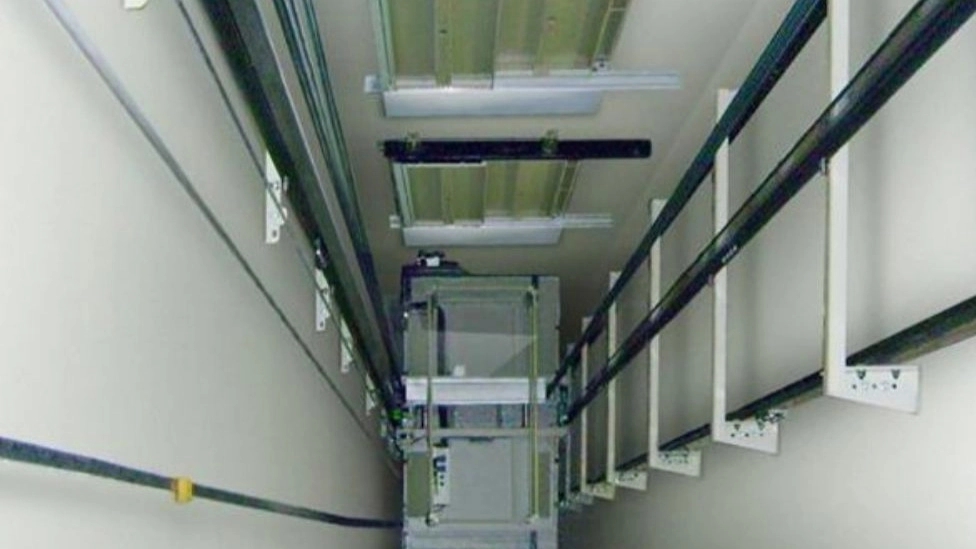

✳️ Guide Railguide Rail:
Rail is a device made of hard material (steel) that has the role of guiding the cabin and the balance weight in the elevator, and its accessories and connections must bear the forces caused by the operation of the safety brake (parachute) as well as the curvature and twists caused by Unbalanced load inside the cabin.
✳️ Wire Rope:
The collection of several strands of coils woven from thin steel wires is called pixel wire. SimPixel is responsible for transferring the engine power of the gearbox to the cabin in order to move it between floors.
✳️ Travel Cable Cable:
He is in charge of transferring the operation command of the elevator between its components.
✳️ Landing Door:
According to the type of elevator, the location and space of the elevator shaft is different and it may be selected from the semi-automatic (hinged) or full automatic type. The type of use and available space is variable.
✳️ Car Door:
The use of this door is determined according to the type of use of the elevator and is usually automatic.
✳️ Summoning Panel:
These chassis are responsible for commanding the elevator to move the cabin according to the selection of the desired floor position, which is used inside the cabin and also on the floors (next to the floors).
