What to consider when installing a scaffold?
Scaffolding pipe is a metal pipe, and its main difference with other industrial pipes is that this pipe is not used as a fluid carrier, and rather, it holds the structure and building. Even if you are not in the iron market, you have heard the name of metal scaffolding or you have encountered it closely. It should be mentioned that the scaffolding is made of metal pipes. The most common size of scaffolding pipe is 11.2 inches, or the same grade 5, and is usually known as pipe 5.
Scaffolding
If you want to do something at a high height and you need to move at a height and have freedom of action, the only thing that can help you is using a set of metal pipes that can be connected together. These metal pipes are called scaffolding pipes and their connection is called metal scaffolding. Today, the scaffolding pipe is considered one of the necessities of construction, because from the beginning to the end of the project, we may need to close the scaffolding several times. Scaffolding pipe is a pipe produced from black sheet which is available in the market with lengths of 3 or 6 meters. Special connectors are used to connect these pipes and a structure is created by placing the pipes together. Scaffolding tubes have a thickness of 2 to 4 mm, and the most common thickness used to close the scaffolding is 3.2 mm. These pipes are sealed and, as mentioned, they are not suitable for the passage of fluids.

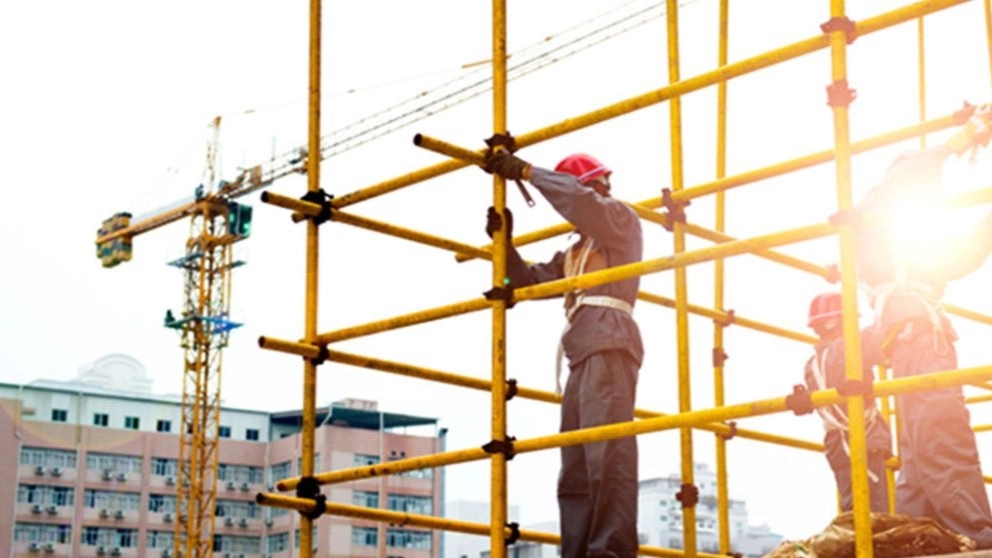

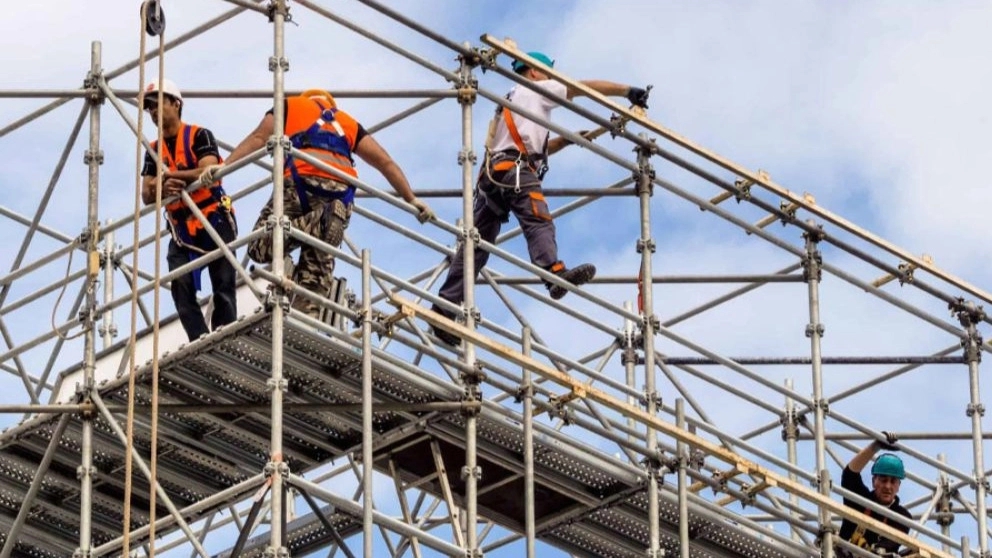

Important points in the scaffolding in the building
Scaffolding must be used to work at heights greater than two meters from the work surface. Scaffolding is a type of temporary structure that includes connections, supports and multiple executive positions. Scaffolding is needed to do some work such as facade construction, repairs, painting, etc. due to the high height of the workplace.
Technical tips in scaffolding
🔰 The horizontal beams of the scaffold must be connected and secured to at least 3 vertical supports. be more than 2 meters.
🔰 The standing timbers should have a width of 25 cm and more.
🔰 There should not be more than 1.8 meters between vertical bases for heavy work For light works, this amount reaches 2.3 meters.
🔰 The timber used must be healthy and free of any cracks. 5 cm.
🔰 In addition to their own weight, the scaffolding should be able to bear 4 times their own weight.
🔰 Guardrails or protective fences must be installed for the platforms. The middle guard rail with a height of 55 cm and the upper guard rail with a height of 110 cm higher than the level of the work platform should be installed along the path of the cliffs.
