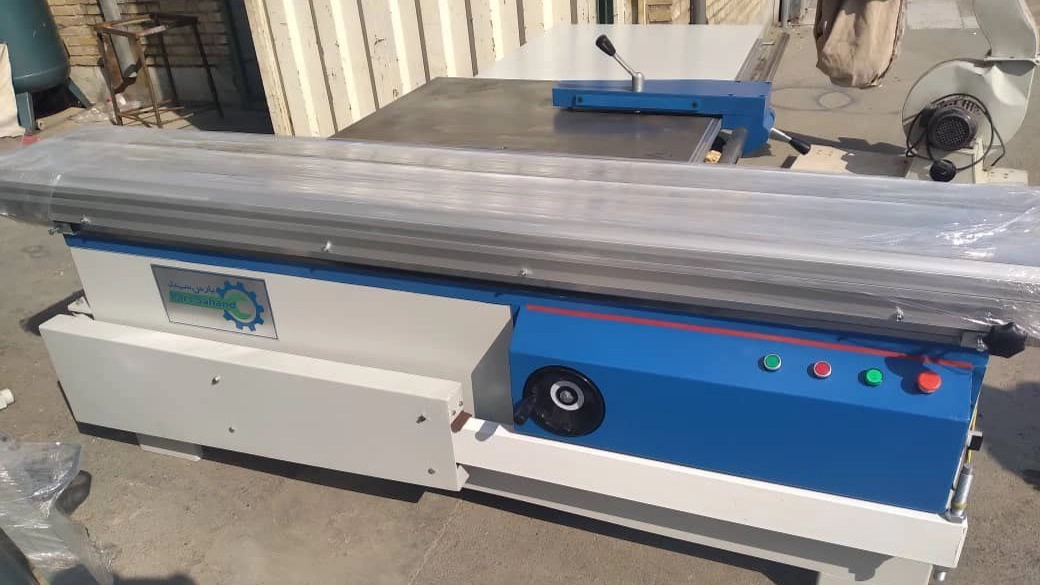

Durkan, or MDF cutting table, is a widely used device in the MDF industry. This cutting machine is widely used in carpentry workshops and factories and industries related to wood and MDF, as well as wooden and PVC products. Durkan is available in two types, automatic and manual, and the automatic type has more features.
What is a Double Saw Machine?
One of the best options for cutting in woodworking workshops such as sofas, cabinets, etc. is a circular saw machine. These devices are manufactured and marketed in different dimensions, sizes and power tonnages according to their function in different businesses. Also, the Durkan saw can make transverse and longitudinal cuts both directly and at an angle to the parts with the utmost accuracy and speed.
This machine has a very good ability to cut at different angles. This machine is capable of cutting parts in different dimensions and actually has no limitations in cutting parts and can easily cut small parts to large and very large parts. Insignificant depreciation, fast performance and ease of working with the machine have made it the most used machine in this industry. Circular saw has components and parts that we will get to know later.
Saws and their application
Main saw unit
This unit creates various and desired cuts on wood due to its ability to move at different angles.
< /p>
Chassis or table saw rail
It is the main part of the machine, which is the location of the work piece to move for cutting. Note: The rails have various technologies, including wagon and ball rails and bearings for movement. Basically, the material of wagon rails and aluminum balls are mesh and resistant. Due to the lightness of the rail, it moves forward and back very easily and smoothly. Wagon and bearing rails are also made of iron.
Line saw unit
This type of unit is activated when the device is cutting in an inactive angle and in straightening mode.
Motor
Durken saw has two separate motors. One of the motors is responsible for the cutting operation and the other motor is responsible for the line drawing operation. In fact, the motor moves the saw blade and it is very important that the material of the machine's motor is good and of good quality. In some models of this machine, which have a line, a weaker motor is also used for the line in addition to the main motor.
Saw blade
Basically, a cutting machine has two saw blades, the name of one of the blades is the main saw blade, which is used for cutting. is used, and the other is the blade of a line saw. In terms of dimensions, the diameter of the main saw blade is greater than that of the line saw blade. The type of blade that is used to do this work is very effective in the elegance and quality of the work.
Gunya behind the saw
All the straight or angular cuts are made by the Durkan saw behind the gonya, which is placed exactly behind the saw. is.
Wooden sheet holder
Another part of the circular saw is the wooden sheet holder, which, due to keeping and fixing the sheet during cutting, ensures accuracy. It will bring you a very high and elegant work.
Goonia on the table
This goonia, which is placed on the circular saw table and right in front of it, is used for measuring and grading angles.
p>Front cutting table
It is used to cut the workpiece for cutting into larger pieces.
Gunya in the middle of the rail
This gonya is used for cutting in triangle (angled) mode.
