☑️ Gate cranes and difference with ceiling crane

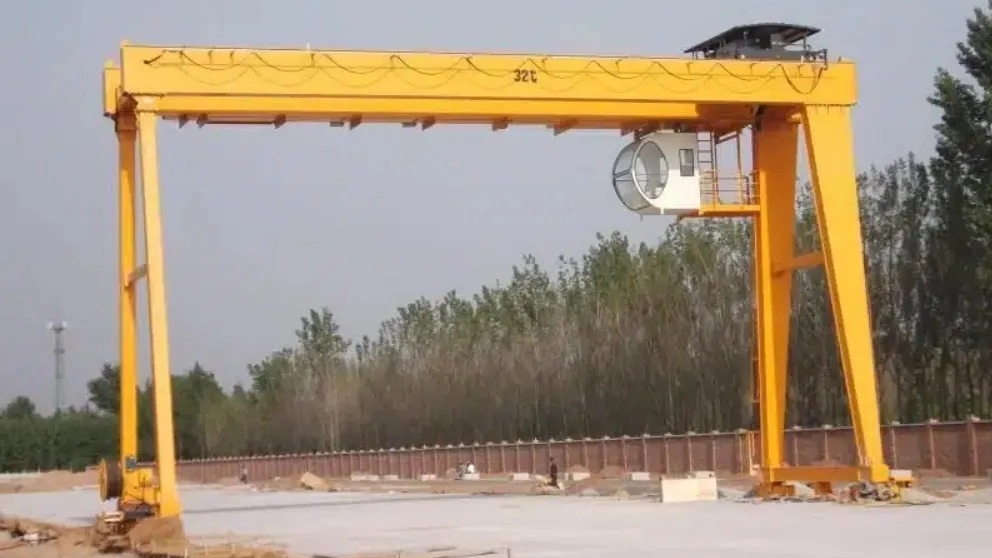

In fact, the gantry crane is similar to the overhead crane, but its horizontal bridge is placed on two bases and is made in the form of a "door frame". Unlike overhead cranes, gantry cranes do not need to be attached to the supporting structure of the building. These products are typically used in outdoor operations, but can also be used indoors, such as warehouses. Outdoor double girder crane is used for loading and unloading. These types of cranes, which use two bridges, have two bases to hold the wagon and hoist and electrical equipment. The equipment is usually controlled from a control room. Longitudinal power supply is made with spring or motor cable. And the single bridge crane is made with limited capacity and width and is used in open spaces for moving, unloading and loading. The type of cantilever crane can operate in a wider width.
These cranes are usually made in single-bridge and double-bridge models and are used outdoors. The bridges of this crane are placed on the base and the wheels on both sides, and the longitudinal movement of these cranes is done on the rails located on the ground. These cranes are usually used in docks and stone-cutting workshops. The semi-gantry type of these cranes (semi-ceiling and gantry) are used in workshops where there is a loading request in a part of the workshop.
☑️ Gate crane is used for?
Cranes are basically widely used in various industries. Such as: lifting parts, transporting trains and wagons at the railway transportation station, lifting ships at the shipyard, loading and unloading containers at port stations, lifting and transporting heavy goods inside the factory, construction work in Location and installation, etc.
A gantry crane is one of the most important materials transportation equipments in the industry, next to the overhead crane. It is usually used for loading, unloading small or large objects inside or outside. This crane can do things beyond our capabilities and advantages, greatly improving your performance and saving you money.
Bridge cranes have a variety of applications due to their high efficiency and good performance. On the one hand, we can install them indoors such as warehouses, workshops, garages, factories, etc. But for external applications such as ports, shipyards, etc. are widely used. In warehouses where there are more materials and loads to transport, gantry cranes are often used, because they can withstand up to 15 tons of weight on average.
☑️ What are the benefits of gate crane?
The gantry crane has a special place in the transportation industry. We can state the advantages of this widely used structure as follows:
Using a gantry crane is very simple and does not require much skill.
Outdoors, it is easy to move objects using a mobile crane.
The gantry crane is very economical in terms of energy consumption.
The gantry crane can be used as a single bridge or double bridge.
Frame cranes can be designed and implemented in different sizes and for different purposes. The combination of these elements along with low cost and easy maintenance is one of the advantages of gantry crane.
☑️ Gate Crane Risks
There is a risk of serious injury and even death when working with a crane. The main cause of crane death is pedestrian collision with crane load. Many of these accidents can be avoided with some kind of warning that sounds when a pedestrian approaches the crane.
☑️ Introduction to the gate crane of a bridge
Types of gantry cranes are usually made in two types, single bridge and double bridge. In the single bridge crane, as the name suggests, it is placed on the crane columns with only one bridge. Of course, the carrying capacity of single-bridge cranes is less than that of double-bridge cranes. In the same way, the cost of building a single-bridge gantry crane and its implementation is also different from a double-bridge crane.
Single bridge cranes usually have the capacity to carry cargo weighing 1 to 20 tons. The maximum length of their opening is about 50 meters. These cranes are cost-effective tools for light industries and workshop operations and can withstand loads well.
☑️ Movable Gate Crane Applications

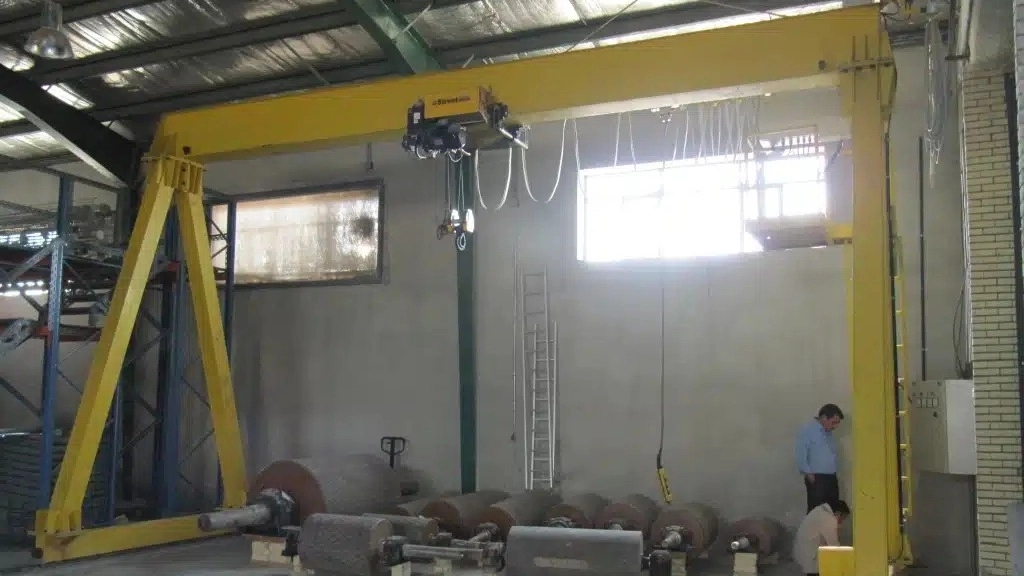

Mobile gantry crane, which is one of the most widely used cranes in the world, has the ability It is very adaptable to different conditions. The dimensions of this crane can be adjusted in any scale and various functions can be implemented with its lift. This crane can be used instead of the overhead crane and in covered places. In any part of the building where it is not possible to use a roof crane, the use of a mobile crane can be useful. Construction of small portable gantry cranes are also used as inexpensive equipment instead of equipment such as forklifts.
Other applications of gantry cranes include using this structure to transport dangerous materials. Some objects or materials can be easily moved by using a mobile crane. Portable gantry crane is a suitable option for transporting goods, tools and heavy objects to different spaces. This crane is widely used in many places such as factories, factories, workshops, ports, warehouses and mines.
☑️ Information and Technical Specifications about Gate Crane
The technical specifications of mobile gantry cranes are among the things that should be considered before buying. Specifications generally include things like crane power, lift height, lift type, power supply, building materials and crane control system.
As mentioned earlier, gantry cranes are often made as single or double bridges and can move at one or two speeds. Crane capacity refers to the weight that the crane can lift. The lifting height also shows the crane's ability to lift objects.
Hoists are usually of the tow or chain type, and their power source is often electricity. Apart from these things, the gantry crane is different in terms of specifications such as body, resistance to moisture, heat, cold and other environmental factors, height base and having some accessories.
Capacity: 1 to 10 tons
Span: from 4 to 30 meters
Height: 4 to 30 meters
Type of lift: electric - wire rope or electric - chain
