✔️ What is a sand maker?
Sand crusher is a device that is used as a secondary or tertiary crusher in the crushing line and turns stones into very small pieces with dimensions of 0 to 6 mm. This stone crusher is used in mines that intend to crush stones to the size of sand.
Hyper Sanat Famco Company provides various types of sand making crushers as follows:
rock and rock sand crusher
Rabbit sand crusher
Pocket or double-sided sand crusher
✔️ Sand Crusher Technical Specifications
The sand making machine is one of the types of stone crushers that has the ability to produce stones of the same size as sand. This stone crusher has high resistance and can crush stones with compressive strength of 450 MPa such as quartz, lime and granite. The types of sand makers have different capacities, dimensions, weight and features, but the average capacity of the sand maker is about 30 tons per hour.
✔️ Rock & Rock Sand Crusher

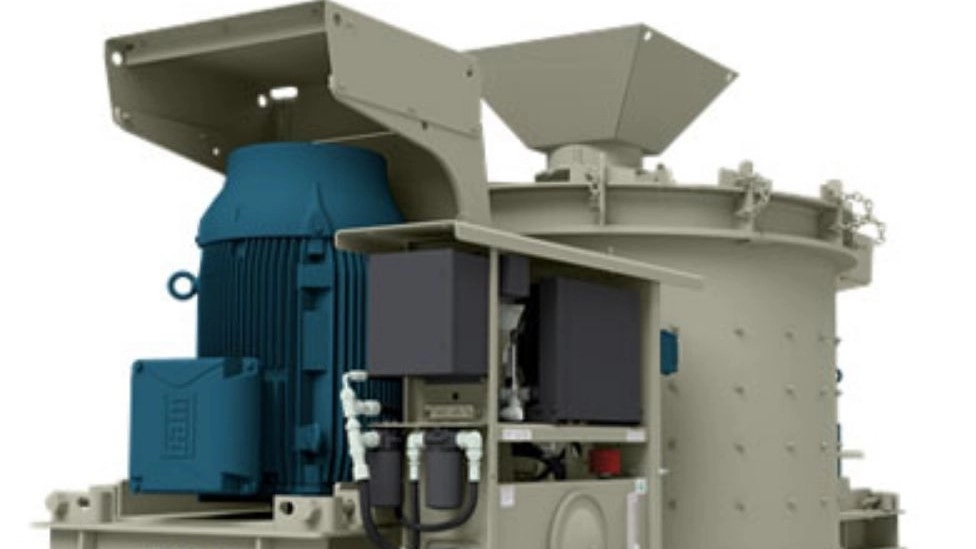

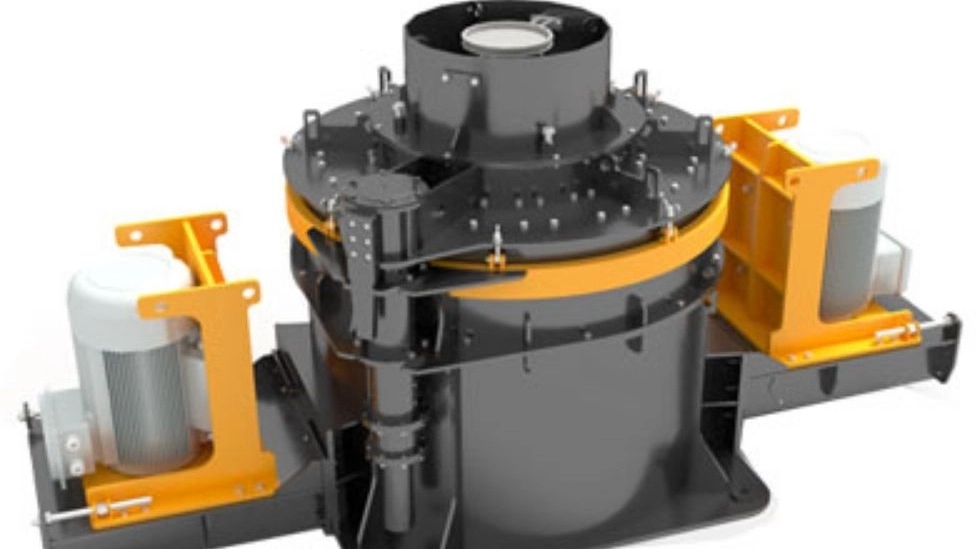

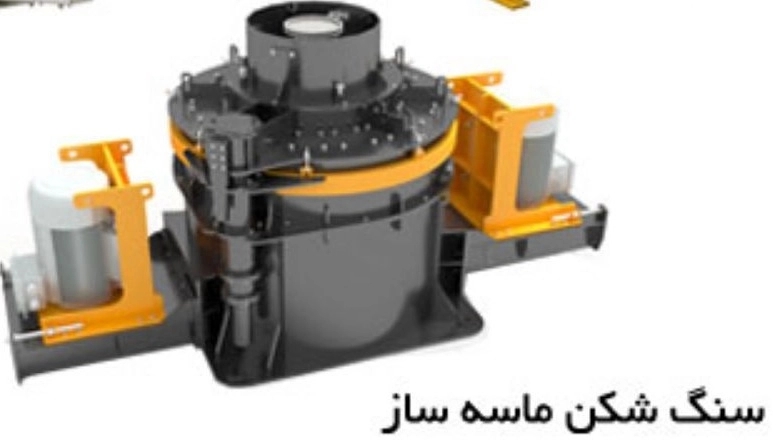

Rock and Rock crusher, vertical shaft impactor (VSI) is a type of sand maker whose crushing mechanism is self-destructive. In this stone crusher, the rotor rotates around a vertical axis at high speed, and the incoming stones hit each other and are crushed under the influence of centrifugal force. This stone crusher is widely used in asphalt factories and sand factories.
The capacity of rock and rock sand maker is about 25 to 60 tons per hour and its product is stones with sharp and multifaceted corners. The stones entering this crusher must have small dimensions, and the rock and rock crusher is not used for crushing large pieces. A number of hammers or bits are installed on the rock and rock crusher rotor for better crushing of stones, which is mostly made of tungsten.
✔️ Crusher Crusher Pacific or Bilateral
The crushing mechanism and structure of the double-sided, triangular or pocket crusher (reversible impact crusher) is very similar to the qubit crusher, and for this reason, it is sometimes known as a type of qubit crusher, with the name of double-sided qubit. The crushing mechanism in the two-way sand maker is such that after entering the crusher, the stones hit the hammers installed on the rotating rotor and are thrown towards the anvils. As a result of these successive blows, the stones are crushed and then come out of the exit valve. The difference between the performance of the qubit crusher and the two-way crusher is that the two-way crusher has two rows of anvils in front of each other and is located at a short distance from the rotor. This has caused the impact of stones with an anvil and hammer to increase and the product of the two-sided sand maker is smaller and almost the same size as sand.
The two-way sand maker is available in different types of 4 hammers and 6 hammers. The double-sided six-hammer sand maker has a higher efficiency than the four-hammer type. Also, the double-sided sand maker can be provided as jacked and simple. The parts of this crusher, including the hammer and anvils, are exposed to erosion and are usually made of alloy steel. The capacity of Pakti sand maker is more than other sand makers and reaches up to 130 tons per hour.
✔️ Rabbit Crusher
The working method of the rabbit sand maker is similar to impact crushers, and crushing is done by hitting the stones with the hammer and throwing them towards the anvil. With the difference that the hammers in the rabbit sand maker are placed vertically and have the shape of a rabbit.
Rabbit sand maker is usually used as a tertiary stone crusher and is used for crushing relatively soft stones and crushes the stones into very small dimensions up to 6 mm. The number of hammers in the stone crusher is 4 and its capacity reaches 30 tons per hour. This device has two types of thick shaft and thin shaft. In the thick shaft rabbit sand maker, the diameter of the shaft and the thickness of the body are more than the thin shaft type and it is more useful. The price of the rabbit sand maker is lower than other types of sand makers, and for this reason, it has gained many fans among small and medium-sized mines.
✔️ How to Functional Crusher Crusher
As mentioned, the performance of all three types of sand makers are similar to impact or qubit crushers. The stones enter the crushing chamber through the inlet valve and are thrown towards the anvil by hitting the rotating hammers and are crushed after successive blows. With the difference that there is no anvil piece in the rock and rock crusher and the stones are crushed by hitting each other and with a self-crushing mechanism. In a triangular or double-sided crusher, two rows of anvils are placed at a short distance from the hammer, and the stones are crushed by multiple collisions with the hammer and anvil, and in the rabbit crusher, which is very similar to rock and rock, the hammers are in the shape of a rabbit. and are placed vertically.
✔️ Usage of sand maker
Lime mines
< font color="#2c3e50">silica mines
Dolomite mines
feldspar mines
sand production factories
asphalt factory
cement factory
✔️ The benefits of sand maker crusher
The ability to crush soft to hard stones in the same dimensions as sand< /font>
has a resistant hammer made of manganese steel
easy maintenance
Ability to produce sand in high tonnage
