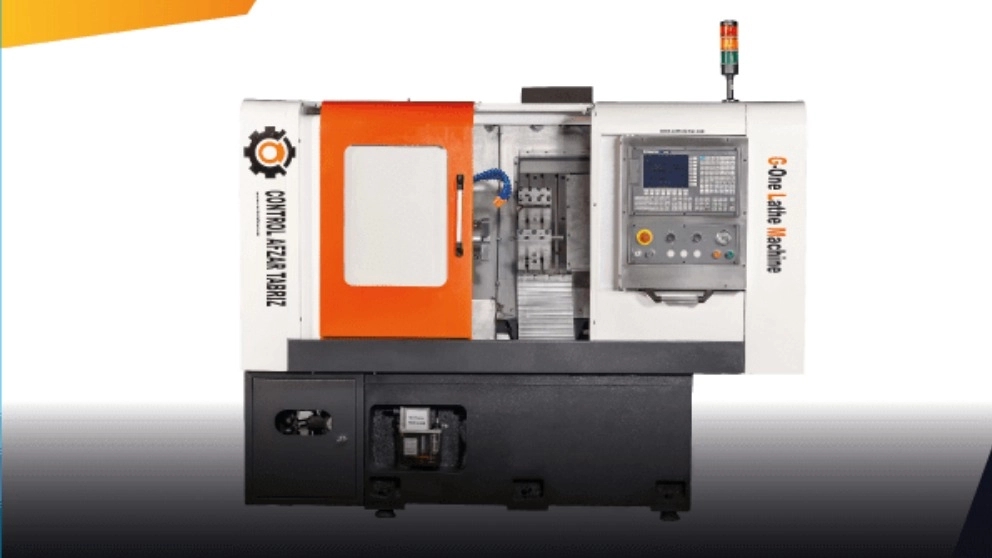

☑️ Define the CNC lathe and how it works
CNC lathe (Computer Numerical Control (CNC)) is placed in a variety of new technologies and machines. Such a machine used for a wide range of manufacturing processes is known as a CNC lathe
With the advancement of technology, CNC lathes such as multi-spindle quickly replaced some old and traditional production lathes. CNC lathes have many advantages:
They are easy to set up and run.
They offer exceptional repeatability along with first-class manufacturing accuracy.

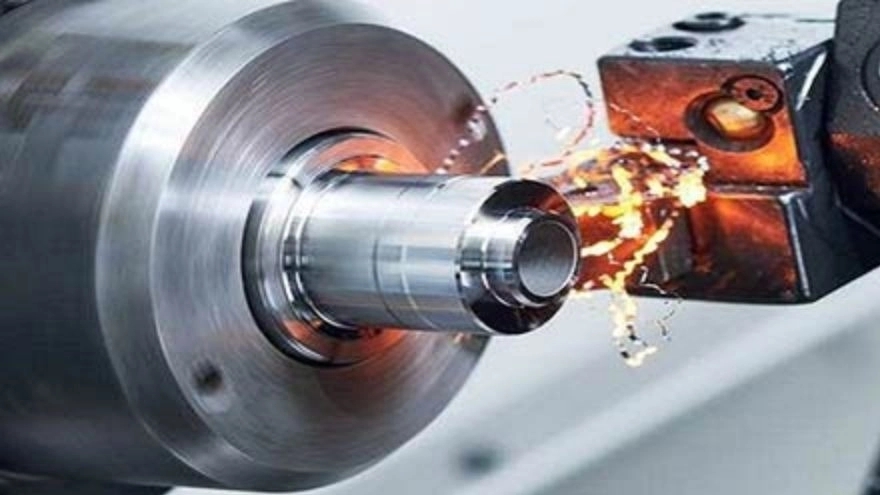

The act of cutting any material using a lathe is called "turning".
☑️ How to operate the CNC lathe
A CNC lathe is typically designed to use modern versions of carbide tools and processes. The part can be designed for customization and machine toolpaths are often programmed using CAD or CAM processes.
However, a programmer can also manually design a part or toolpath. The G-Code computer file is then loaded into the CNC machine, and then the machine automatically produces the desired parts that are programmed to be designed. The CNC lathe is controlled by a menu-type interface on the computer. The operator managing the process can actually see a visual simulation of how the machine will perform during production. CNC lathes are designed in different ways. However, most of them have significant similarities in their compositions.
☑️ Blind
A turret is a part of the device that holds the tool holders and indexes based on it.
☑️ Spindle
The spindle is designed to hold the workpiece. In addition, there are slides that allow the turret to move simultaneously in several axes. CNC machines are usually fully enclosed for health and safety reasons with every operator present. There has been significant growth in the CNC machining industry, especially in the design and use of CNC lathes.
Different lathe manufacturers use different user interfaces, which can be a challenge for operators. But these systems are largely built on principles across the board, as a CNC lathe is programmed to perform similar functions.
Like other CNC machines, CNC lathes have become a major part of the manufacturing industry in recent years. Therefore, it is expected that the performance of such machines will continue to improve and have significant use in this field.
☑️ Using CNC Landing Machine
The lathe has countless uses. This device is used in industries like :
car , electronics, aerospace, weapon manufacturing, sports and many others are used. A CNC lathe can also be used to cut metal and produce plate surfaces and screw threads.
There are also ornamental lathes that are specifically designed to work on complex designs such as 3D products. In the CNC machine, the material is firmly fixed using clamps and collets. This device is also used for metal work, wood turning and even glass work.
A small number of products you can produce using a CNC lathe are:
Musical instruments
crank
Baseball bats
standing dining table and chairs
☑️ Car parts parts
The lathe consists of several parts that are connected to each other. Correctly assembled turning machine is very important. Let's take a look at the important parts of the lathe
☑️ The base of the lathe
Since the lathe has to work on many different materials, it needs to be flexible enough, and this is where strong lathe bases come into play. It keeps the base of the lathe in a fixed position and also creates flexibility when adjusting the work height.
☑️ Hood
This is one of the important parts of the lathe. The head consists of three main things: spindle, change mechanism Speed and gear shifting.
A cover usually It is one of the strongest parts because it contains the 3 main parts of the CNC machine and because of the operation of the CNC machine, it has to endure a lot of vibrations and resistance.
☑️ Spindle
The spindle is located in the head and is connected to a tube that is then connected to the chuck (three systems) Connects. The spindle holds the piece of work and also allows you to rotate it according to the requirements of the final product. There is even a formula for deciding the cutting speed of the spindle, which is determined by it.
4xSFM / D = RPM
SFM = surfaces per minute (cutting speed)
RPM = revolutions per minute
< span style="white-space: normal;">D = working diameter in inches
☑️ Gearbox gearbox
It is a part of the CNC machine that is responsible for controlling the speed of the motors. It is located in the main part and rotates the chuck.
☑️ Drill
The bird drill is located in front of the spindle, which is a moving part in the CNC machine and if needed The final product is subject to change. A bird drill consists of a barrel that can move forward or backward. If the length of the piece is large, they place the piece between the spindle and the bird so that the piece does not vibrate.
