An electric motor is a type of machine that is used to change energy from electrical to mechanical. Most motors work on the principle of interaction between the electric current and the magnetic field inside the winding. This can create a force in the form of shaft rotation. These motors can be powered by DC or AC sources. DC sources are batteries while AC sources are inverters, power grids, generators.
What is the engine coil?
The definition of an electric motor winding is that the windings in an electric motor are the wires inside the coils, which are generally placed around a coated flexible iron magnetic core rather than the magnetic poles. shape and at the same time be strengthened by the flow. Electric machines are available in two main magnetic field pole configurations, a salient pole as well as a non-salient pole. The winding diagram of the motor is shown below.
In the salient pole configuration machine, the magnetic field pole can be produced with a coil winding almost below the pole surface. In the non-prominent pole configuration, the winding can be dispersed in the slots of the pole surface. A shaded pole motor consists of a winding placed around the pole portion that maintains the phase of the magnetic field. Some types of motors include conductors with thicker metal such as sheet metal, otherwise rods are usually copper, otherwise aluminum. Generally, these are powered by electromagnetic induction.

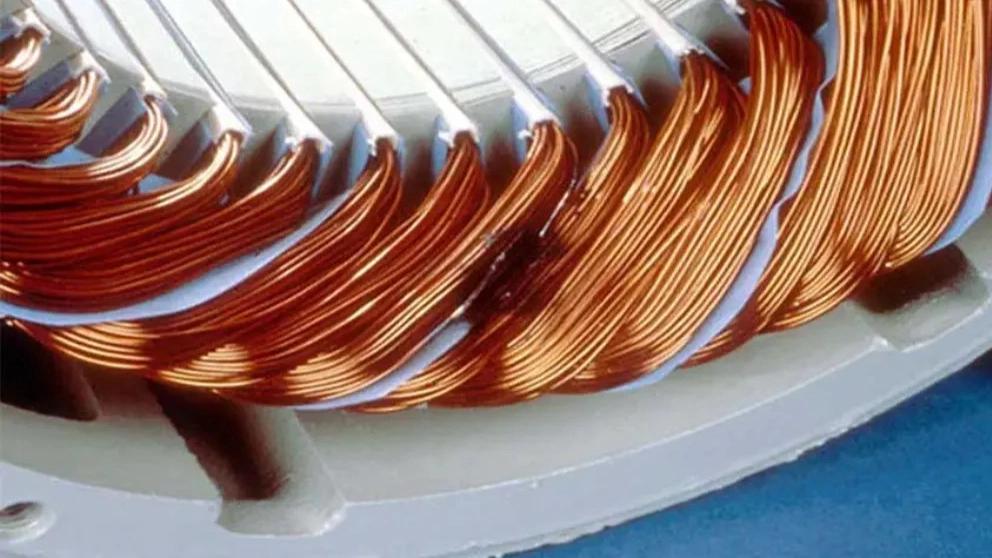

Motor coil
There are two types of motor windings, which include the following. Armatures are classified into two types, which include the following.
- Lap winding
- Wave winding

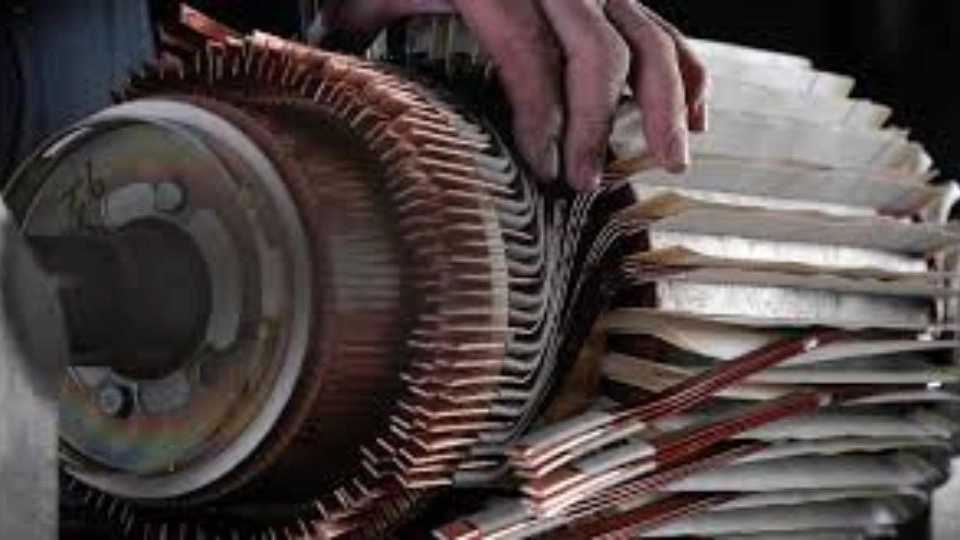

Motor coil tool
- Varnished wire
- Lacquer solvent
- Varnish
- Large thread
- Micrometer
- Torch
- Chisel or a tool for cutting the previous coil
- Money for bearings
- Types of wrenches
- Hammer
- Types of screwdrivers
- Lubricant spray
- Copper wire
- Aluminum wire
- Insulation paper
- Pliers
- Stator winding coil cutting machine
- Copper coil removal chisel
- Cutting discs for stator or rotor
- Manual coil pulling machine
