UPVC Galvanized Profile and Lola Tahmasebi Belt
✔️ galvanized manufacturer, hinge strap, upvc galvanized, galvanized upvc window door

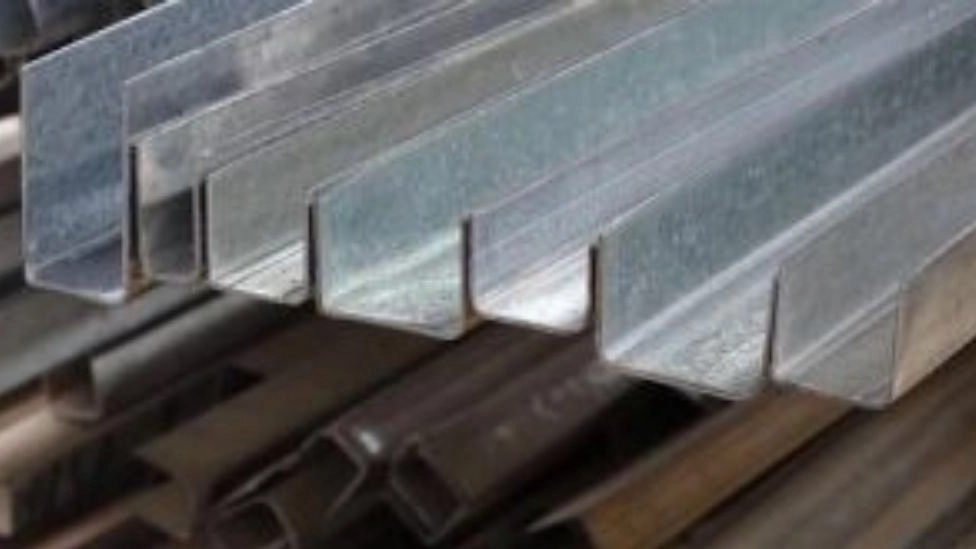

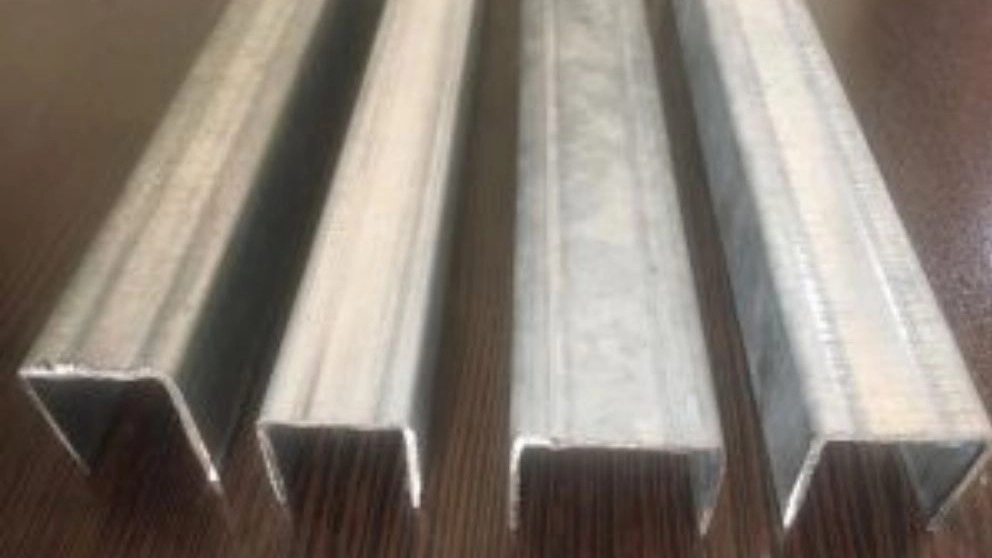

✳️ What is a galvanized sheet?
🌀 One of the most important components of the upvc double-glazed window, which has a great impact on the quality and price of the final product, is galvanization in the double-glazed window. Galvanized double-glazed steel sheet whose surface is coated with an alloy like zinc and has a thickness of at least 1.25 mm and are placed inside the cross section of the profile in a u shape.
✳️ What is the difference between the galvanized door and the galvanized double -walled window?
🌀 Since the thickness of the uPVC profile in the doors It is more than the windows, so their inner compartment is bigger than the windows and as a result, the dimensions of the galvanized used in the doors are much larger than the dimensions used in the windows.

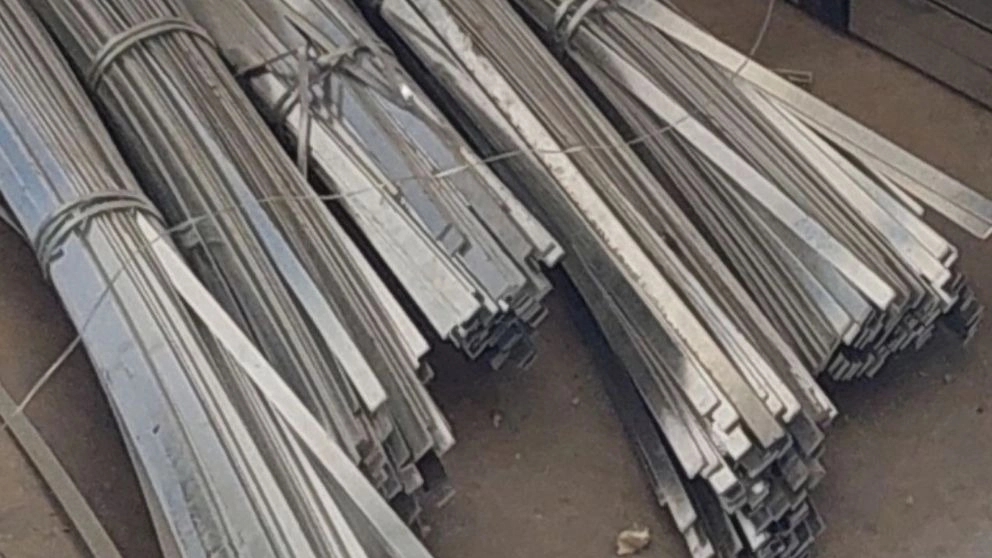

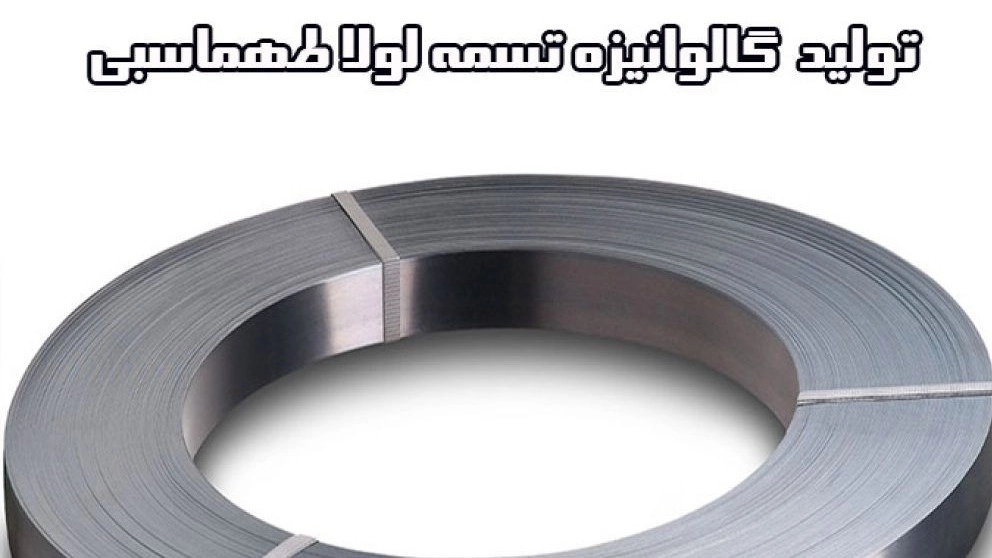

✳️ Lula strap
🌀 It is one of the important parts in double-glazed windows, which is a rectangular plate made of iron with a thickness of about 1 mm and coated with zinc.
🌀 The efficiency of the hinge belt is in places where it is not possible to pass the screws through the galvanized, and as a result, it is necessary to use the hinge belt in order to keep the screws stable inside the profile. One of the measures of longevity and increasing the efficiency of windows is the use of a hinge belt inside the window groove
✳️ The main task of Galvaniere and the hinge belt in the window
🌀 UPVC galvanized and hinge straps do two basic jobs in doors and windows:
Strengthening the built doors and windows
It helps to properly adjust the window fittings, because the lack of stability of the double-glazed window adjustment may happen after 2 to 6 months after installation.

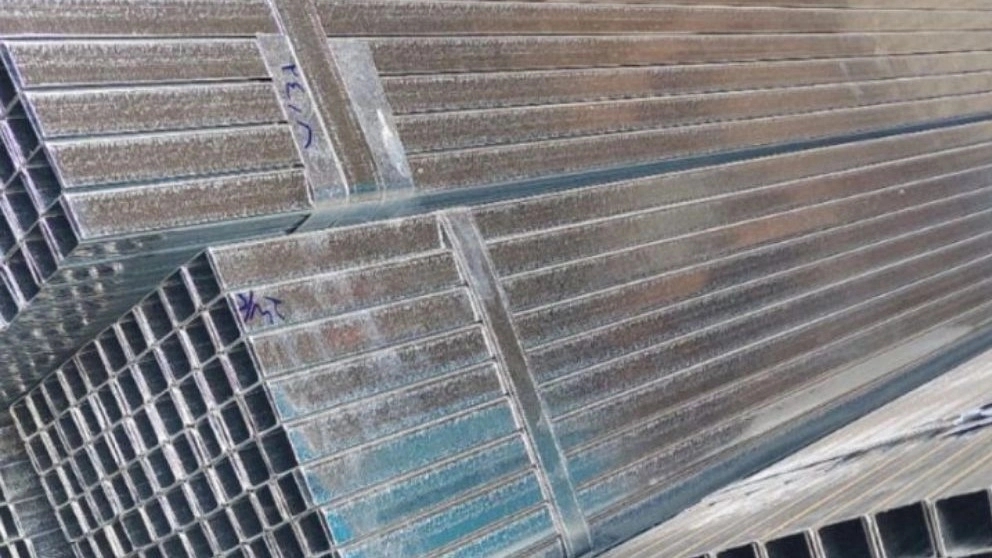

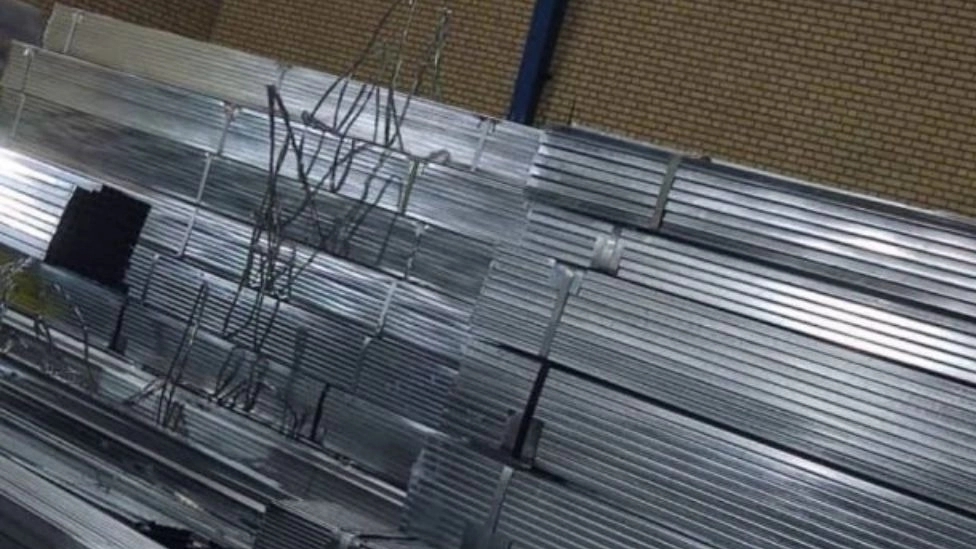

✳️ Galvanized sheets with standard thickness
🌀 These types of sheets are produced in thicknesses of 0.7 to 2 mm and According to the height, wind pressure and the details of the implementation of doors and windows, they are used
✳️ Galvanized Double Window Window Performance with Standard and Non -Standard Thickness

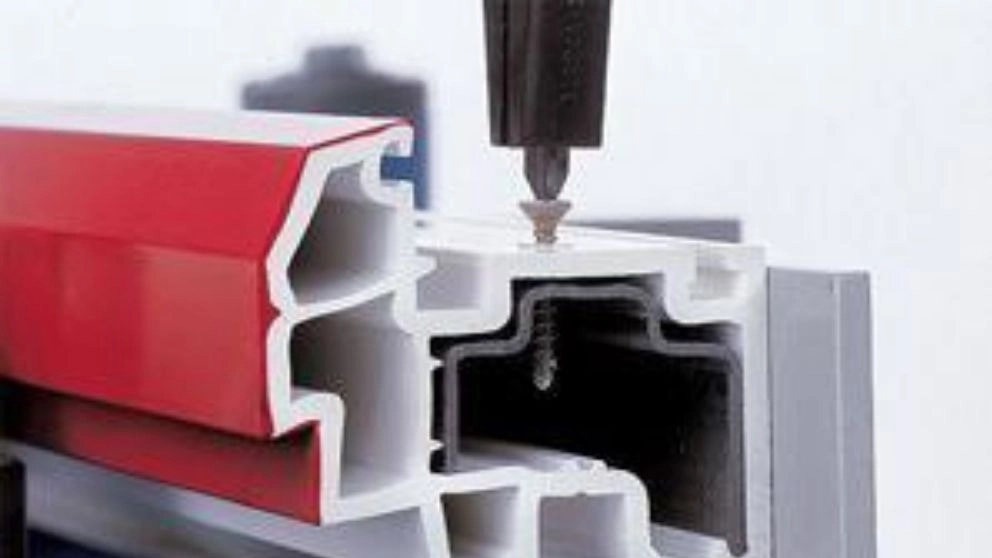

🌀 The key and important role of standard galvanizing in upvc window is that when it is placed inside the uPVC profile housing, it acts like a washer or holder and the screws that pass through the profile as a result of connecting hinges, connectors and mullion fasteners keeps.
For this reason, after a lot of opening and closing and the pressure caused by the weight of the window sash and glass on the hinges, the galvanization inside the window does not allow the screw to move and keeps it in place, and as a result, increases the life of the window. Gives.
🌀 The use of light and so-called non-standard galvanizing with a thickness of less than 1 mm causes the screw to reach the galvanized sheet after passing through the profile surface, and due to the low thickness of this sheet, there is a possibility of moving and corroding the galvanized sheet, and after 1 or 2 mm movement, the window hinges are out of place, the window regulation is messed up and causes problems such as the passage of heat and cold, the passage of wind and rain, lack of insulation, hearing the sound of wind from inside the window, etc.
