Types of overhead cranes

Crane

Single-bridge overhead crane: Single-bridge overhead cranes are used to move materials in halls with small openings and tonnages of less than 10 tons, which reduces the dead load of the bridge on the columns of the structure and is economical in terms of cost-effectiveness. It is lighter because it reduces the overall weight of the structure. In single-bridge structures, one bridge is placed in line with the opening and two longitudinal guides that move the single-bridge structure along the rails on the rails. The opening is by a trolley located in the elevator, which moves it with the elevator's transverse motion motor, and the movement along the hall is the responsibility of the longitudinal guides, which move the elevator along the hall with the wheel box and gearbox motor. Lower working class and lower working height compared to double bridge overhead cranes can be mentioned.

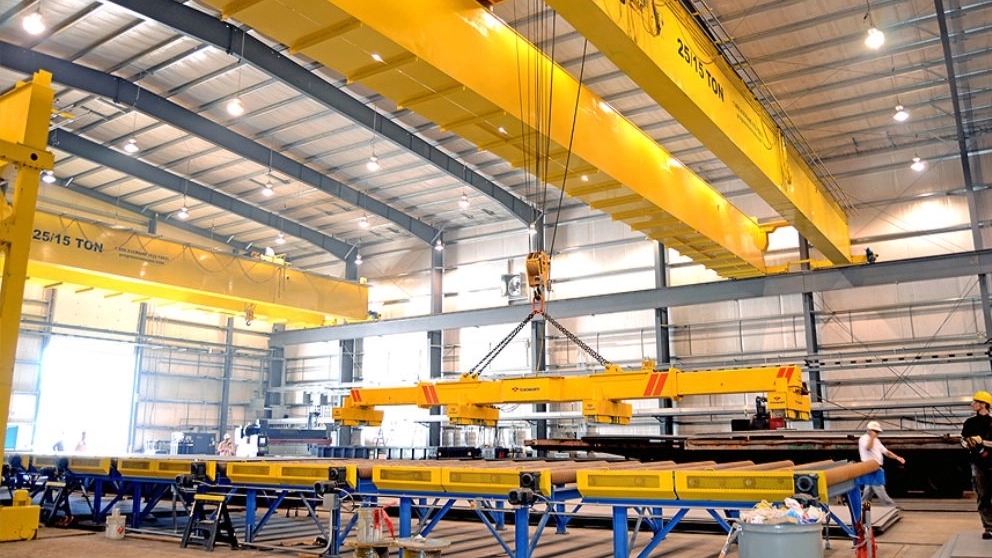

Double-bridge overhead crane: Double-bridge overhead cranes are the best solution for moving materials in halls with a span between 10 and 50 meters and a capacity between 1 and 100 tons, and also with this structure you have the best working class and You also get the highest working height, and also by using engineering calculations and construction of the structure according to the standard and with low dead weight, you can also make the best use economically. Also, another advantage of this type of cranes is that despite the selected corridor in the crane body, in addition to In addition to the ease of access and the possibility of repairing trolley parts, it also provides a suitable opportunity to repair and replace hall lamps, hall heating facilities and power lines.

Straight and curved overhead crane: This type of crane, in cases where you are not able to install columns and beams, by setting up this system, you have the possibility to easily move objects in the hall area, and also this system for moving Materials with a span between 4 and 10 meters and a capacity between 0.5 and 10 tons are widely used, which in this type of structure gives you the possibility of the greatest lateral access (more than the span of the worked beam) or the greatest working height. It has the ability to move the lift in any direction. This type of crane is mostly used in the rail industry, and it is available in two types: direct and overhead crane.

Features of overhead crane
A little cost is required to maintain an overhead crane.
A overhead crane can access all points independently.
To repair the crane. The cost to be paid is low.
Overhead crane will save energy.
The best option for moving parts that have heavy weight will be overhead crane. Roofing does not require special skills and is very easy to do
