What is a type or drip irrigation bar and what is it?

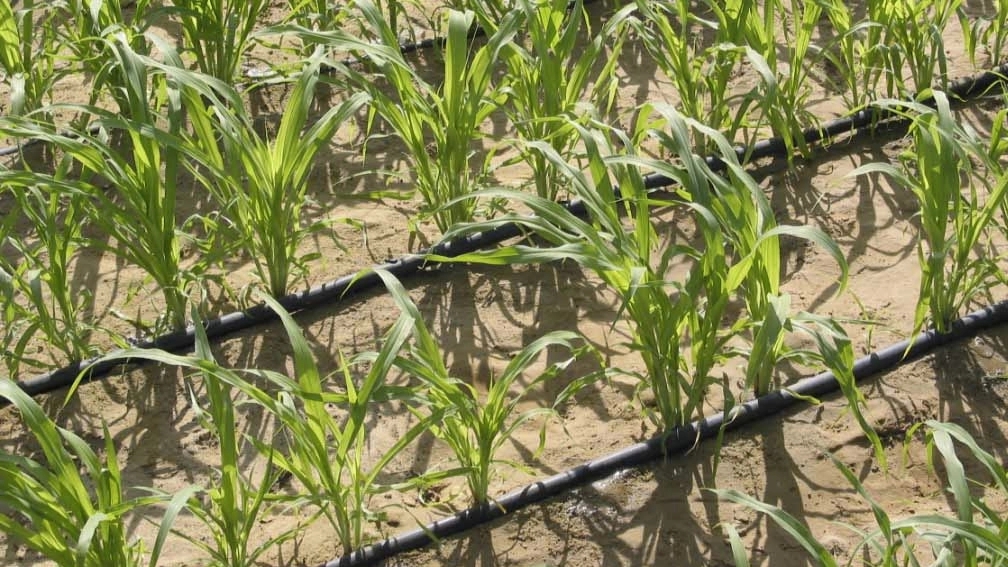

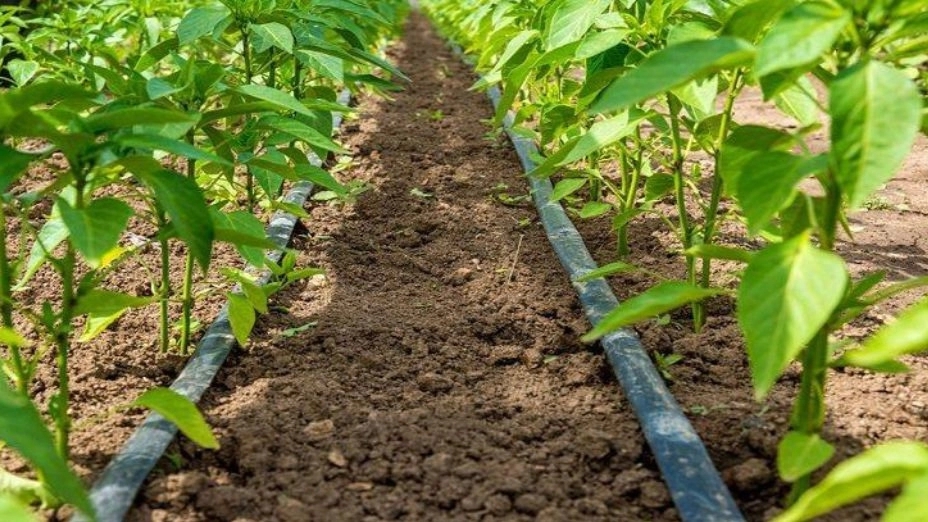

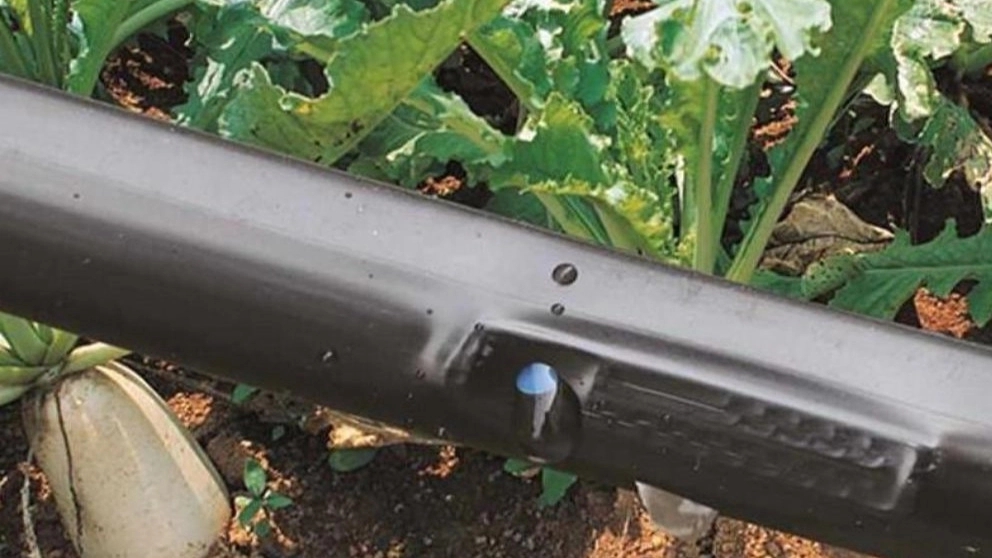

Tip or drip irrigation tape is a tape with a thin wall that is used for drip irrigation. The tank is made of polyethylene and is almost flat and very soft and flexible, which fills up when water enters it, and drops of water exit through the doors installed on the tank, and after the end of irrigation, the tank returns to The face is flat. The wall thickness of the tape is very thin and the distance between the drippers in the irrigation tape is different. Thicker types are usually used for subsurface irrigation of various plants. Tape types have different types, so their prices are based on technical specifications (thickness - size) and production quality.
Introducing Type Irrigation System
Tipp irrigation system consists of pumping station, main and secondary pipes, taps, connections and tip irrigation strips. For proper and uniform irrigation of tip pipes, the usual working pressure for the operation of this system is 1 bar, which is supplied by the pumping station. In addition to providing and regulating the necessary pressure for water circulation on the field level, the pumping station also provides the uniform exit of water from the openings of the tip pipe. , is responsible for preventing the entry of small and suspended water particles into the irrigation system. This work is done by installing different filters in this station. Selection of suitable filtration for each farm is done by the irrigation system designer based on the quality of irrigation water. Removing small and suspended water particles by filters is necessary to prevent clogging of pipes and to create uniformity in water output and to increase the useful life of tip irrigation strips. Also, if the fertilizer tank and fertilizing equipment are installed in the pumping station, the field fertilization operation can also be done by the brigade pipes. The diameter of the main and secondary pipes also depends on the area under irrigation and the flow through them, which at the time of designing the system, They are determined by the relevant designer. These pipes are mainly made of polyethylene or lyfelt with the required diameters.
The benefits of using the type tape
Saving water consumption and increasing the area under cultivation
Easy and fast installation and easy transportation of tape (light weight)
Ability to install on the soil, under the soil or even suspended
Prevent The adhesion of algae and mineral deposits due to its material
Easy to use in irregularly shaped lands
Reduction of soil erosion
Reduction of weed growth
Uniformity of water distribution
Less pressure required than others Methods
