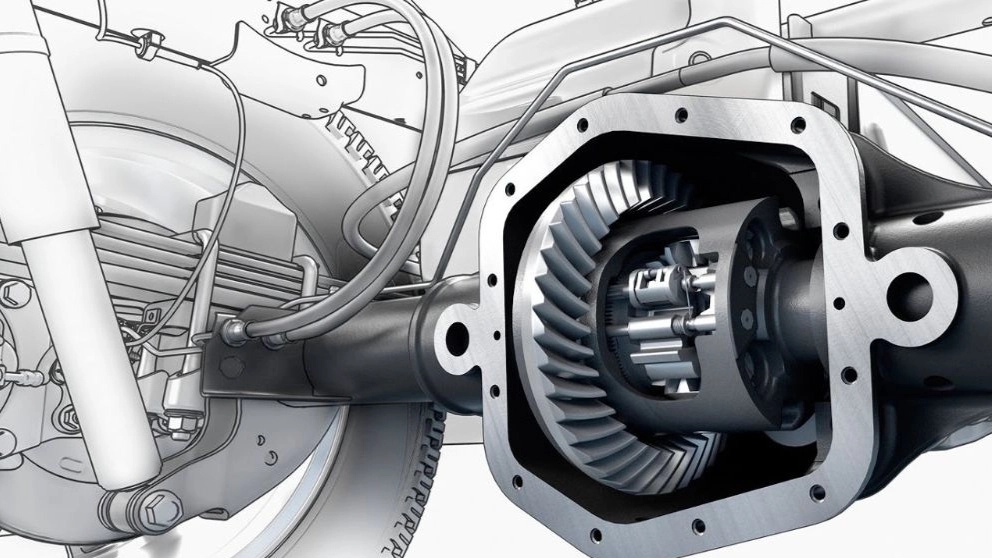

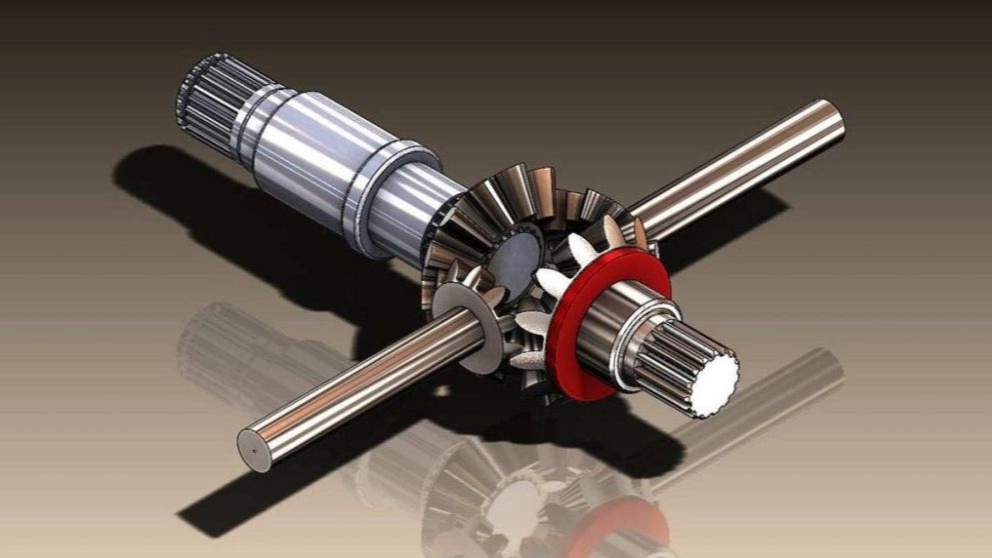

Forklift differential consists of a number of parts such as pinion gear, ring gear, side/spider gears, differential case assembly, rear drive axle and bearings and axle housing. The pinion gear transfers power from the drive shaft to the ring gear. The ring gear transfers most of it to the differential case assembly. Side/spider gears facilitate the movement of the drive wheels to rotate independently during rotation. The differential case assembly serves to hold the ring gear and other components that drive the rear axle. Rear drive axles are steel axles that transmit torque to the drive wheels. The rear axle bearings are placed between the axle and the axle housing. While the axle housing encloses and supports the rear axle assembly and its parts.
Task of the forklift differential
The forklift differential does three important things. Transmission of power from the engine to the axis that moves the wheels, and secondly, the control and speed reducer of the forklift operates from the gearbox to the wheels, and thirdly, it allows the wheels to move at different speeds from each other. Forklift differential gears adjust the rotation speed of each wheel separately. It drives the inside and outside wheels at different speeds, providing positive traction to both.
Sometimes, a differential uses a gear and works in two ways: It provides two outputs and receives one input. Another way differential works is by combining two inputs to produce an output that is the difference, sum, or average of the inputs. A forklift differential allows all tires to rotate at different speeds while providing equal torque to each.
How do we find out that the forklift differential has trouble?
1) There are problems in moving the forklift, especially when turning.
2) You feel the movements of the gears. ) smells of burning.
What may ruin the forklift differential?
Forklift differential is exposed to pressure, friction and wear like all other forklift parts. Using the wrong oil, not taking care of the differential oil, or the rusting of its gears due to the penetration of water droplets or environmental humidity may cause the breakdown of the forklift differential over time. When water gets in, it emulsifies the differential lubricant and leads to rust on the gear and bearing surfaces.
