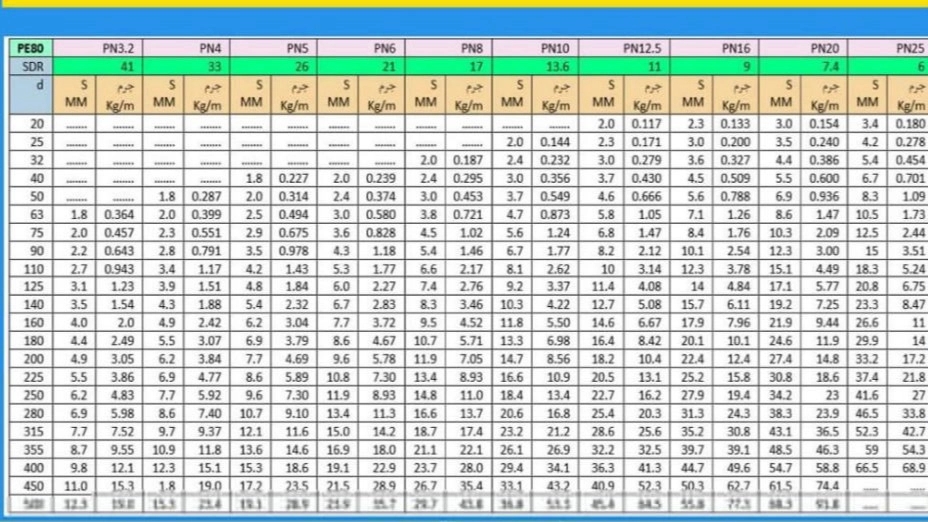

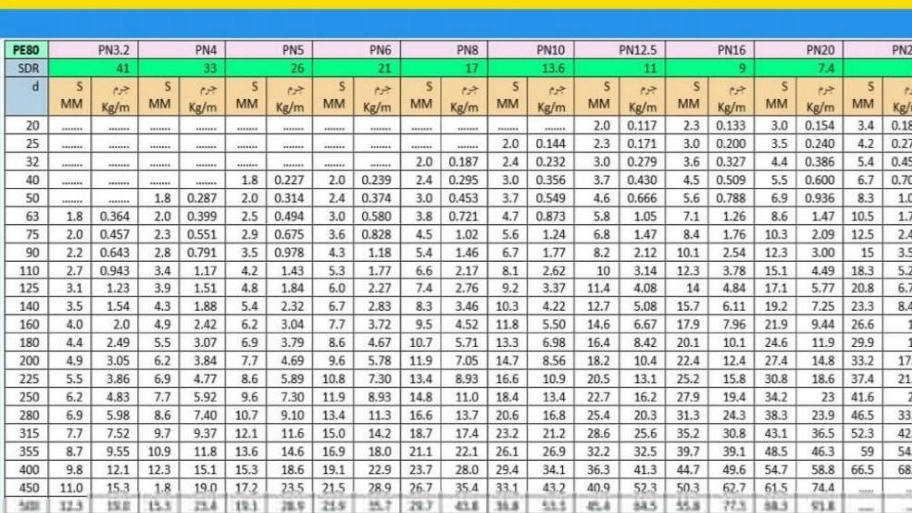

The PE80-PE100 polyethylene pipe weight table is set and it is easy to understand the factors that contribute to the price of a polyethylene pipe. In the polyethylene pipe weight table, there are things such as pipe inner diameter, nominal pressure, working temperature, standard ratio of pipe unit, mass and safety factor. Each of these factors must be well respected in the production of these plastic pipes. Engineers and polyethylene pipe manufacturers, after designing the production line, adjust all working conditions according to the standard data recorded in these tables. Any inconsistency of the characteristics of pipes produced in the factory with the data in this table will have a negative effect on the final project. In the following tables, the weight table of polyethylene pipes PE80-PE100, according to the national standard of Iran, are well displayed.
The weight of polyethylene pipes varies based on size, wall thickness, and type of pipe. Below is a table of the weight of some polyethylene pipes in different sizes:
Pipe size (outside diameter) Wall thickness Weight per meter length
20 mm 2 mm 0.124 kg
25 mm 2.3 mm 0.177 kg
32 mm 3 mm 0.308 kg
40 mm 3.7 mm 0.472 kg
50 mm 4.6 mm 0.735 kg
63 mm 5.8 mm 1.165 kg
75 mm 6.8 mm 1.650 kg
90 mm 8.2 mm 2.377 kg
110 mm 10 mm 3.637 kg
125 mm 11.4 mm 4.566 kg
140 mm 12.7 mm 5.661 kg
160 mm 14.6 mm 7.446 kg
180 mm 16.4 mm 9.416 kg
200 mm 18.2 mm 11.605 kg
