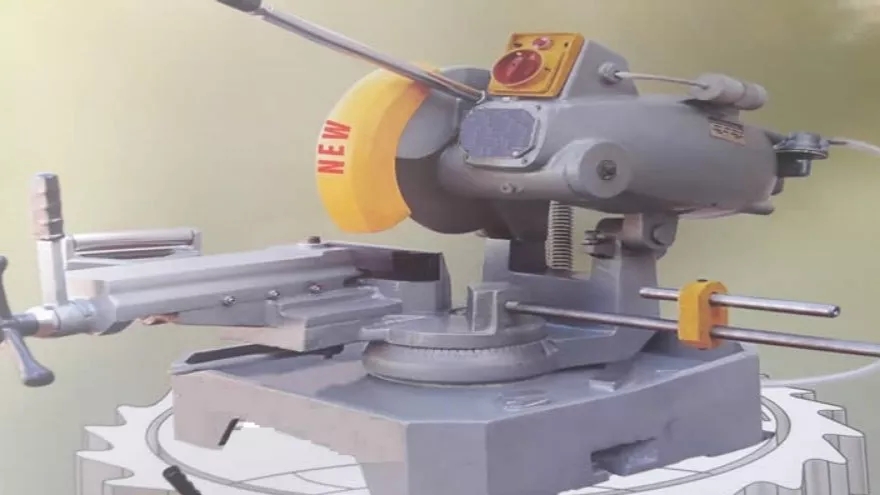

Soapy water saw includes a gearbox; which increases the power of the machine in cutting parts with hard materials. The gearbox works in an oil chamber that includes a snail and a bronze gear and a shaft 25 cm long; which is surrounded by three bearings. Helical gear made of MO40 material, which is subjected to hard work before being used on the device.
Bronze gear is designed and manufactured from nickel, phosphorus and bronze alloys with special heat treatment and under the supervision of Iranian engineers. ; that this precision and high quality in the design of the gear box reduce the vibration during cutting on the disc blade and increase the life of the device and the quality of cutting at different angles. It allows the operator to rotate 90 degrees and from the left with 45 degrees. which has the ability to cut with different angles on the work piece. The cooling liquid of the device is circulated by a mechanical pump placed at the end of the electric motor; This liquid is stored with a source at the end of the base. And by turning on the device, the liquid is pumped on the disc plate and by placing a strainer in the way of the coolant entering the pump, the life and efficiency of the soapy water suction part increases. According to the lever built on it. In order to quickly cut parts, the operator generally cuts a part with the same length and diameter in large numbers. In order to reduce the waste of time for positioning the workpiece and clamping it, the mentioned lever closes the clamp with a rotation of less than 90 degrees.
Body Section and type of soap saw:
Soap water saw base which is an important part of this device. which is mounted on the sole and has a collar on it. and it moves as a joint.
Golgi of the soapy water saw machine, which is also made of cast iron, and the dynamo and gear box are mounted on it. And the pump is on the cast iron part and the blade is inside a cast iron housing. The saw is made of cast iron. Because cast iron is poured into the mold in one hand. And it takes a beautiful form. This metal is used. The bottom of the saw was cast and inside it is empty because soapy liquid is poured into it. that this liquid falls on the used blade during cutting. And the cooling action cools the blade, which is heated by friction, so that the blade does not go out of its state. The saw clamp mounted on the sole is used to hold the metal. And the material of this clamp is cast iron, which is also cast. It should be noted that this clip can be Persianized metal. because it rotates in a circle.
