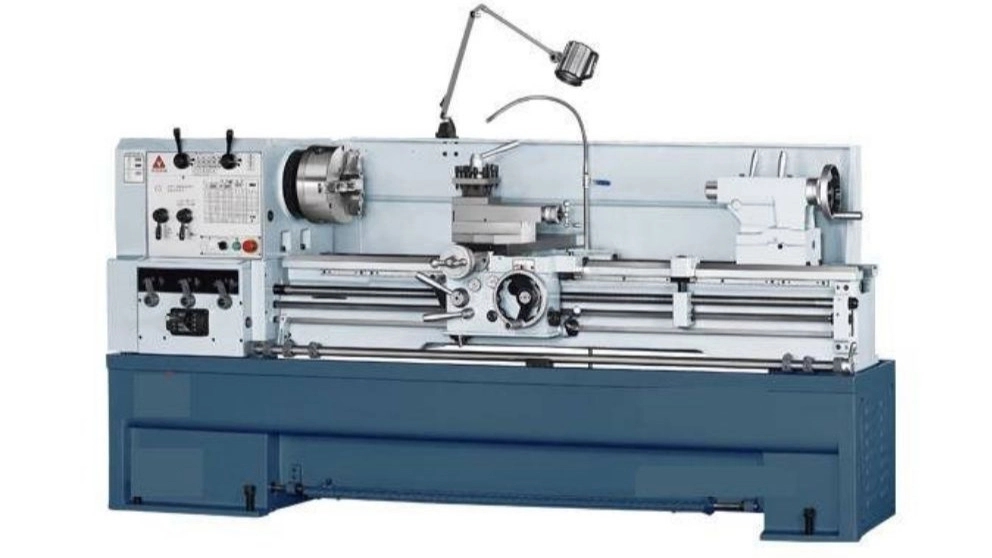

What are the Lash Series?

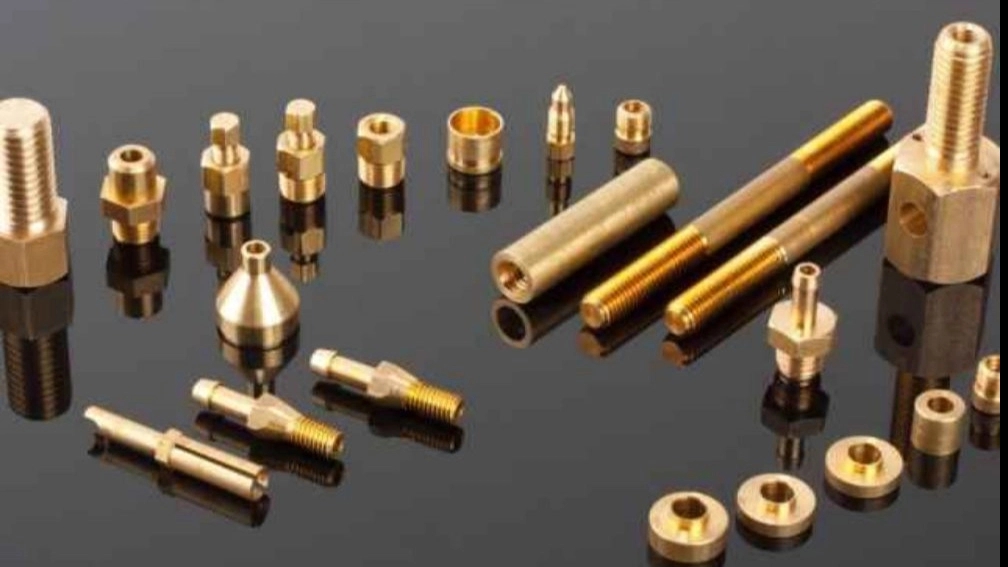

Lathe series machines are one of the types of metal lathes that are used to produce a large number of parts that are needed equally.
You can easily use these machines, whether According to form and size, please categorize:
• Manual lathe series machines
• Semi-automatic lathe series machines
• Automatic lathe series machines
• Horizontal lathe series machines
>• Vertical lathe series machines
According to the type of performance, these types of machines have two types of pen grippers, which are:
✅ Four-way pen gripper
✅ Six-way pen gripper
Six -sided instrument device
In addition to face turning, screw turning, the six-sided tool holder device performs internal turning operations well.
How to adjust the six -way instrumentation
In lathe series machines with a sliding mechanism that have a six-way tool holder, the tools are adjusted by means of special screws located at the other end of the drawer. There are six tools, therefore, to adjust each tool, there is an adjustment screw with a special breaker inside the device.
Four -sided instrument device
In this machine, face shaving operations such as: forehead shaving, step shaving, groove shaving and form shaving are performed consecutively with a four-way clamping tool. This device is placed on a transverse support (drawer) that moves across the machine. Four types of tools or graters are attached to this device.
In order for each of the grates to move across the width of the machine as desired, two brake screws are placed on the sides of the transverse support, which can be adjusted to control the grates and cut the required diameter.
ماشین های سری تراش از نظر ابزارگیر (دستگاه حامل رنده گیر)
✅ Lathe series machines with the device for carrying the sliding grate
✅ Lathe series machine with the longitudinal support device
ماشین های سری تراش با دستگاه حامل رنده گیر کشابی
This type of machine is fast and very easy to operate. This type of machine is used for small lathes, complex works and ordinary works. The diameter of the work that can be cut with this type of machine is up to 75 mm and sometimes up to 500 mm, and the cutting length of the parts must be proportional to the length of the cutter, which usually varies from 100 mm to 330 mm. In this type of machine, the six-sided pen holder is placed on the roller, and the four-sided pen holder is placed on the machine rail transversely and has a transverse movement.
Long -Machine Machine
These types of machines are basically made in a large form and are intended for heavy and large turning works, especially works that are relatively long in terms of length and need to be cut accurately. With this type of machine, it is possible to cut works with a diameter of about 300 mm, and the works that must be closed in three systems have a diameter of about 900 mm.
In these machines, the six-way grater device is closed directly on the saddle located on the rail and can be moved forward and backward along the length of the machine by means of the saddle. Fastening the six-sided pencil holder on the saddle directly maximizes the strength of the pen holder. In general, two types of turning (internal turning and surface turning) can be done with lathe series machines. Horizontal lathe series machines are usually used for turning.
Roller

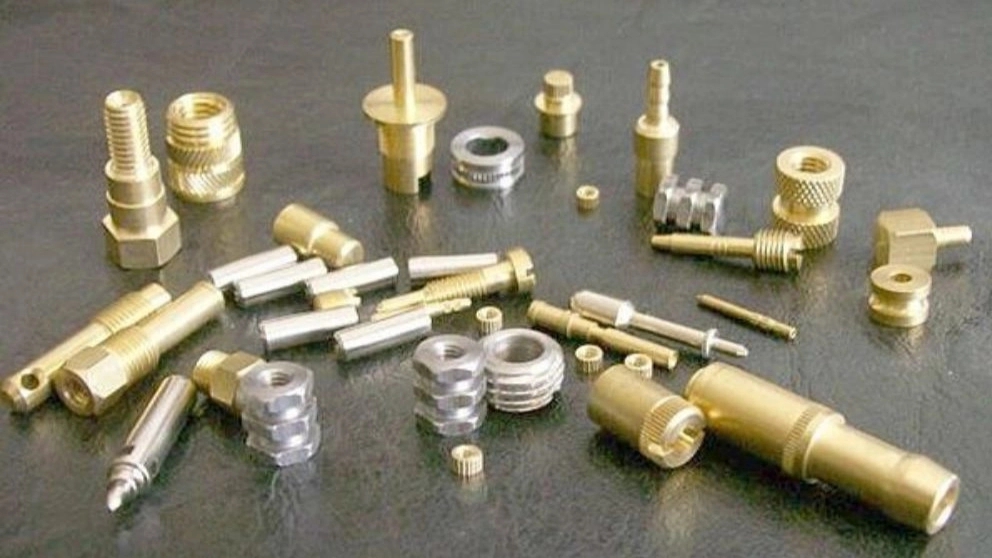

With the help of these devices, mass production of parts with fixed sizes can be done in a shorter period of time than conventional lathes.
