Types of Jabardost Store Lift in Tehran
In order to check the types of lifts, it is necessary to specify the criteria of their classification. In general, elevators can be grouped based on the type of mechanism, type of application, type of load, type of building and installation location, fixed or mobile, control system, speed and many other parameters.

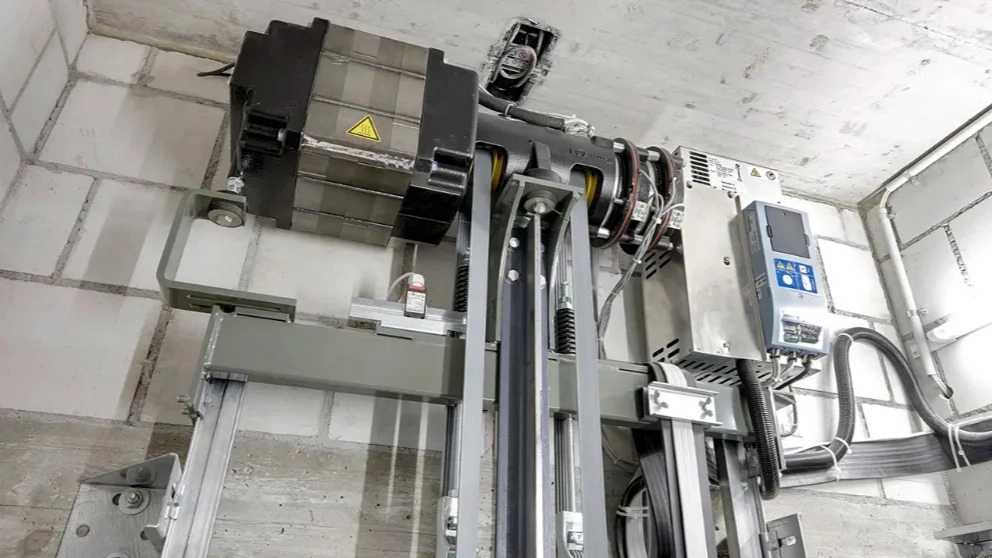

🔰 Traction lift 🔰
Traction lifts have the same mechanism as traction elevators. In this model of elevators, the movement of the cabin is by using a gearbox motor or a gearless motor and with the help of balance weights. The basis of the operation of this mechanism is the traction force and friction caused by the towing wire and the engine blade. This type of mechanism is a very suitable option for long handling height in fixed lifts. In order to ensure safety, parachute and governor systems are used in traction elevators.
🔰 Vinci lift 🔰
Vinci lifts are one of the classic lift models for carrying cargo at limited heights. The winch drive system is used in both fixed and mobile lifts. These elevators are an economic solution for moving materials and transporting goods along short distances. Providing the necessary safety for this type of devices is associated with complications. The mechanism of winch lifts is similar to the well wheel. In this system, the engine and gearbox release or collect the towing wire by turning a drum (pulley) and the lifting platform moves as a result.

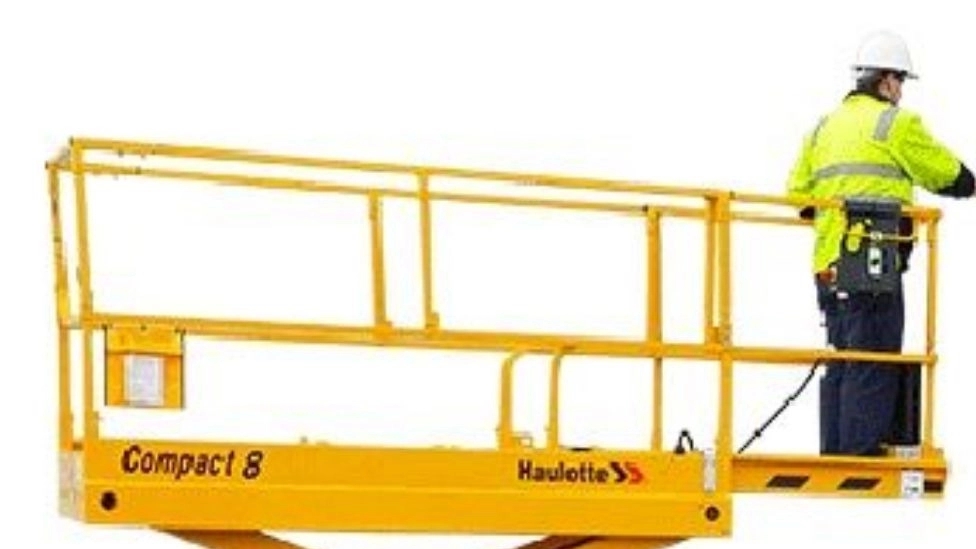

🔰 scissor lift (accordion) 🔰
Another type of fixed and mobile lifts with a driving system in the form of scissors or accordion. These types of elevators, which are originally moved by a hydraulic mechanism, have a special combination of strong mechanical arms that move a little bit of the movement of the jack of the elevator cabin to a much greater extent. Accordion elevators are used as dock and table elevators. Elevators are widely used in factories and warehouses. Also, in models of mobile lifts, an accordion mechanism is used to move the work platform.
🔰 Shoulder gear lifter 🔰
The shoulder gear system is the most used in temporary construction material lifts in construction workshops. These types of lifters use a strong fixed gear comb. And the motor that operates the gears on the cabin by rotating the shoulder gear causes it to go up and down. Shoulder gear systems are generally installed sectionally and have the ability to increase the height according to the vertical progress of the building structure. .
