Crane
A roof crane is a structure that is used inside sheds, factories, workshops and other indoor environments to move and carry loads. In almost every industrial environment as well as various industries, when the weight of the equipment reaches more than one ton, the need for a overhead crane is immediately felt. And one of its main advantages is covering 90% of all areas of your area or hall without occupying the smallest useful working space. There are different types of overhead cranes, arm wall cranes, gantry cranes, semi-gantry cranes, and arm cranes, each of which has its own specific application. These cranes are four-way and six-way in three ways: longitudinal (north and south), transverse (left and right) and vertical (up and down).
Single -bridge crane
Single bridge overhead cranes are used to move materials in halls with small openings and tonnages of less than 10 tons, which reduces the dead load of the bridge on the columns of the structure and is economically more economical because the total weight It reduces the structure. In single bridge structures, a bridge is placed in line with the working opening and two longitudinal guides that move the single bridge structure along the rails along the hall.
To move in The width of the opening is made by a trolley located in the elevator, which moves it with the elevator's transverse movement motor, and the movement along the hall is the responsibility of the longitudinal guides, which move the elevator along the hall with the wheel box and gearbox motor. Lower working class structure and lower working height compared to double bridge overhead cranes can be mentioned.

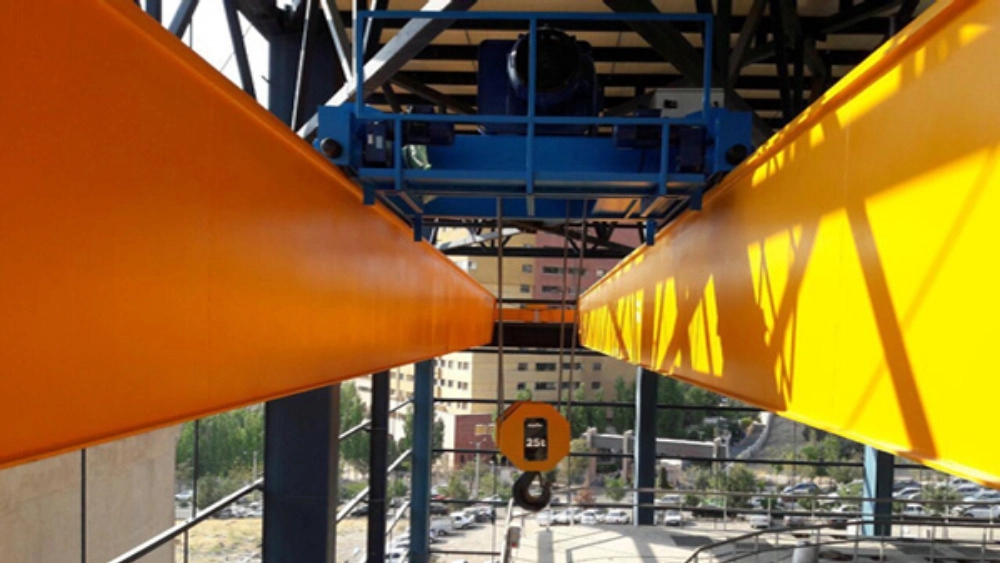

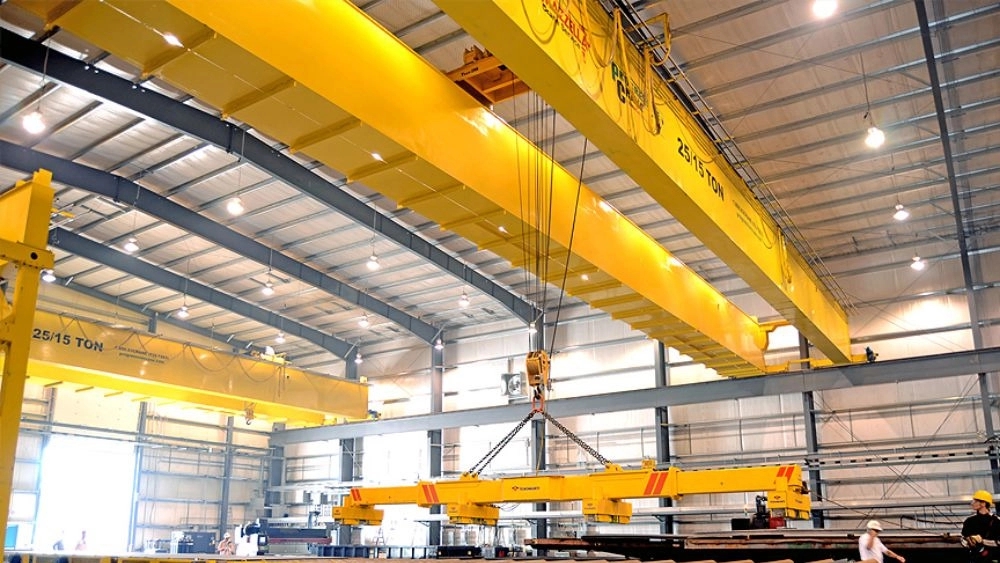

Two -bridge crane
Double bridge overhead cranes are the best solution for moving materials in halls that have a span between 10 and 50 meters and a capacity between 1 and 100 tons, and also with this structure you have the best working class and the highest working height. Also, by using engineering calculations and building the structure according to the standard and with low dead weight, you can get the best use from an economic point of view. Also, another advantage of this type of cranes is that with the presence of a selected corridor in the crane body, in addition to ease of access and It also provides the possibility of repairing parts of the carriage (trolley), a suitable possibility for repairing and replacing hall lamps, hall heating facilities and power supply lines.
The crane
This type of crane, in cases where you are not able to install columns and beams, by setting up this system, you have the possibility to easily move objects in the hall area, and this system is also used for moving materials with an opening between 4 and 10 meters and with a capacity between 0.5 and 10 tons, it has a lot of uses, which in this type of structure gives you the possibility of maximum lateral access (more than the opening of the beam) or the maximum working height. It also has the ability to lift move in any direction. This type of crane is mostly used in the rail industry and it is available in two types of overhead cranes, straight and overhead.
