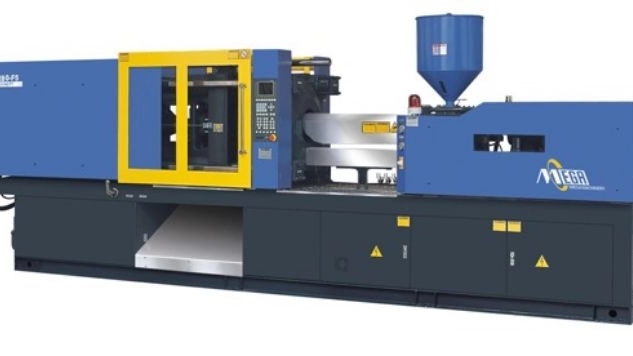

Types of plastic injection machines

A variety of plastic injection machines

Plastic injection machines are mainly classified based on the working method and production process. Our categories in this article are based on the following nomenclature:

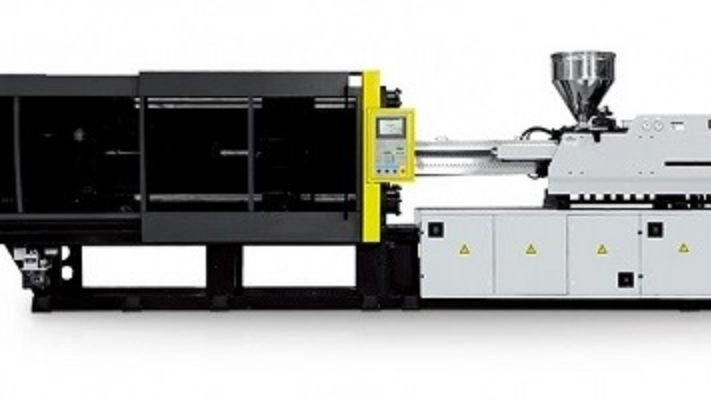

BT injection machine

This series of injection devices use Polad and smart pumps to control the oil output of the device. This efficiency makes the rate of energy loss of flow pumps that are constantly working decrease. This reduction in energy loss directly affects power consumption and process improvement. In addition to other side benefits, this reduction in electricity consumption has reached 30% to 70% and reduces the remaining side costs to a great extent. These pumps, which are usually produced and sent to assembly companies in Japan, are one of the best and most powerful pumps available in the market, and this makes them very popular and completely economical and equipped. All these devices are equipped with KEBA control system, which has a 3-plate clamping mechanism and are mass produced in various tonnages from 60 tons to 1800 tons.

Device Features

Saving consumption Water
Intelligent pumps (variable flow rate) need less water to cool the oil compared to fixed flow pumps.
Saving hydraulic oil consumption
with The use of smart pumps (variable flow rate) increases the life of the hydraulic oil used in the device up to 3 times, and thus, the cost of changing the oil The hydraulics of the device will be greatly reduced.
More production and lower cost
Using a smart pump (variable flow rate) instead of a fixed flow rate pump, we can make a The size of the smart pump is bigger installed on the machine and as a result, we have more production.

< /div>

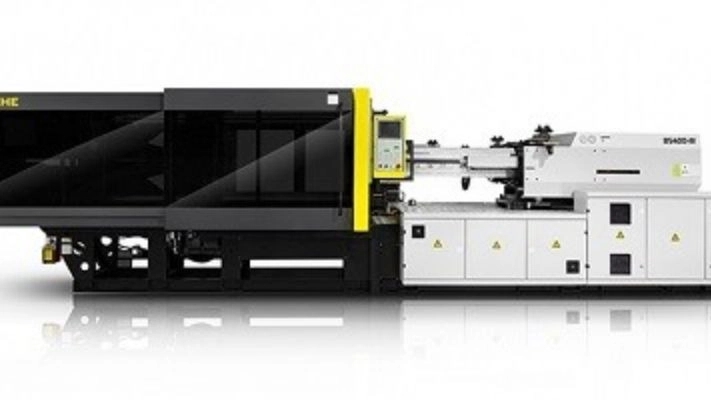

BS injection machine

Series injection devices use a servo pump motor (servo) for very precise control of oil pumping to the required parts of the injection device, the main advantage of which is to reduce electricity consumption and the resulting costs between 20% and 80%. This ratio is usually measured with respect to the pump model and is different for fixed flow and variable flow pumps. The pumps used in the BS series are generally produced in Germany and are also introduced to the market in mass production. These devices, despite their higher price, are much more economical. These devices reduce the electrical consumption of a production line to a great extent and have a short investment return period. BS series machines equipped with KEBA control system, which have a 3-plate clamping mechanism and are mass produced in various tonnages from 60 tons to 1800 tons.

Servo Control Feature

Servo is a relatively new technology that can be used to turn off the hydraulic system and reduce energy consumption to zero when the hydraulic system does not need oil circulation or pressure. Of course, this consumption and zero level are considered an unattainable goal, but the performance of these engines has always been positive and they can be considered faithful to their promises. Servo motors are one of the most used in this industry.
