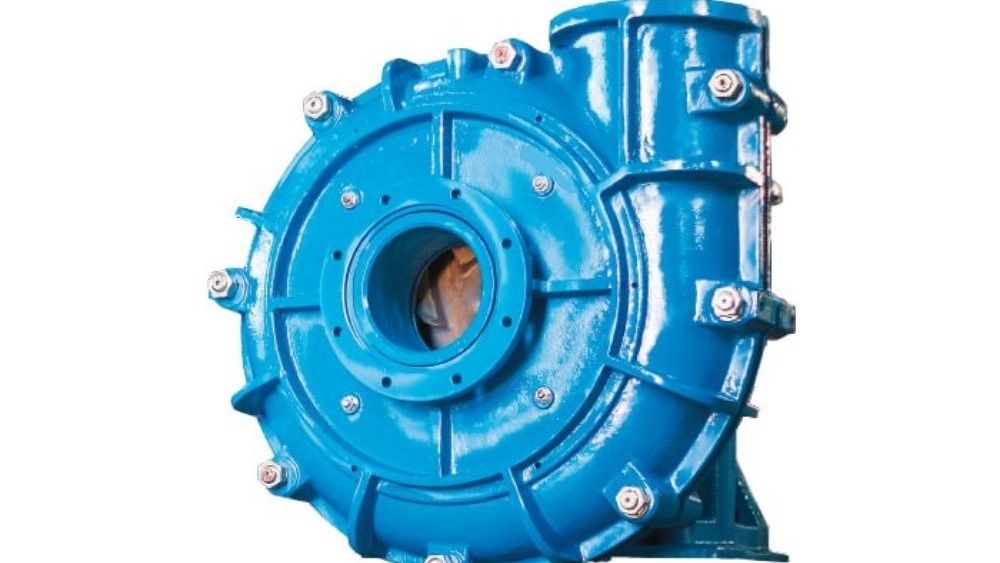

Slurry pumps are devices that are used to transfer fluids containing solid particles. Unlike conventional pumps, which are mainly used to transfer water or other liquids without suspended particles, slurry pumps are specially designed to move liquids that contain suspended solid particles, abrasive materials, or high-density materials, which are called slurries.
The main applications of slurry pumps include:
Mining and mineral processing industry: In this industry, slurry pumps are used to transfer materials such as mud, crushed minerals, and small pebbles obtained from milling processes.
Chemical Industry: Slurry pumps can move chemical compounds containing solid particles, especially in processes involving abrasive or corrosive materials.
Power plants: In thermal and combined cycle power plants, slurry pumps are used to move production waste.
Cement and construction materials industries: Slurry pumps are used in these industries to transfer compounds resulting from processing.
Considering the type of materials and working conditions in different industries, slurry pumps must be designed in such a way that they have high resistance and efficiency and can deal with harsh conditions and abrasive solid particles.
The main components and structure design of slurry pumps:
Slurry pumps are made up of special components that allow them to move slurry containing solid particles and abrasive materials easily and without serious damage. Due to working in harsh conditions, these components are designed to protect the pump against wear and corrosion and increase its efficiency.
The main components and structure of the slur pumps:
1. Impeller
The propeller is one of the most important components of the slurry pump, which is responsible for generating kinetic energy for fluid movement. Impellers are usually made of wear-resistant metals such as wear-resistant steel or special materials such as rubber and polyurethane to resist abrasive particles. The impeller design in slurry pumps is different from normal pumps and can be open impeller, semi-open impeller or closed impeller depending on the type of application.
2. Casing
The pump shell is the part that surrounds the impeller and helps guide the fluid. This part is made of wear and corrosion resistant materials, because it is directly exposed to the slurry flow. The design of the shells is such that the energy produced by the propeller is transferred to the fluid movement. Also, some designs use replaceable inner layers, which helps to change the shell more easily and has its advantages and disadvantages.
3. Seal
Seals are vital components of slurry pumps that prevent fluid from leaking out of the pump. Considering the pressure and type of slurry, it is very important to choose the right type of seal. In slurry pumps, mechanical seals, felt bowls, etc. are usually used. The correct choice of seal depends on the working conditions, pressure and type of fluid. Seals can be made of acid-resistant and wear-resistant polyurethane.
4. Shaft
The shaft is the part to which the propeller is connected and the engine power is transferred to it. The shafts must have enough resistance to withstand the pressures and vibrations caused by the slurry flow. Due to the harsh working conditions, the shafts of slurry pumps are usually covered with special protective layers to resist corrosion and wear.
5. Bearings
Bearings are responsible for ensuring the smooth movement of the shaft and bearing the load on the shaft. This part must also be durable, because slurry pumps usually work at high speeds and in harsh conditions, and the bearings are subjected to pressure and heat. Lubrication and servicing of this part are essential.
6. Liners
Liners are coatings that are placed inside the shell and other parts exposed to the slurry. These covers are made of wear-resistant materials, such as rubber, polyurethane or hard metals, and help to reduce wear and increase the useful life of the pump.
7. Cooling System
In slurry pumps operating at high temperatures, cooling systems may be used to keep the pump temperature within a safe range and prevent component damage.
Types of Warman Design Pumps:
Warman design slurry pumps are produced in sizes 8/10, 6/8, 4/6, 3/4, 2/3, etc.
The selection of slurry pumps is very important due to the special conditions in which these pumps work and requires attention to several key factors.
1. Type and size of solid particles
One of the first things to consider is the size and shape of the solid particles in the slurry. Some pumps are designed to move fine, uniform particles, while others can handle larger, irregular particles. If the particles are large and abrasive, it is necessary to choose a pump with an impeller and wear-resistant liners. Open or semi-open impellers are better for handling larger particles because the particles pass through them more easily.
2. Slurion concentration and density
Slurry concentration (amount of solids in liquid) and its density are other important factors in pump selection. For high-concentration slurries, strong and powerful pumps are needed that can withstand more pressure and weight. It may also require a special design for the impellers and the pump body to withstand the wear caused by the high concentration of particles.
3. Viscosity and fluid properties
Slurry viscosity affects pump efficiency. Slurry pumps dealing with high viscosity fluids must have sufficient power to overcome the internal friction force of the fluid. In these cases, it is necessary to choose stronger propellers and structures with high tolerance.
4. Type of Usage and Environmental Conditions
Environmental conditions such as temperature, humidity, and even the chemical conditions of the slurry can be effective in selecting the pump. In applications where the slurry contains corrosive chemicals, pumps with corrosion-resistant materials, such as pumps made of special alloys or corrosion-resistant liners, are more suitable.
Head (fluid displacement height) and flow rate (amount of fluid displaced per unit time) are the most important technical parameters in the selection of slurry pumps. Slurry pumps are designed to achieve the required flow rate and head in specific applications. Pumps designed for high head usually have higher speed impellers and stronger construction.
6. Select the type of slice pump (horizontal, vertical, or immersed)
Depending on the application and installation location, the type of pump is also important. Horizontal pumps are usually used for surface handling or in long transmission pipelines, while vertical and submersible pumps are more suitable for deep applications such as tanks and ponds.
Maintenance costs, as well as durability of components against wear, are among the factors that should be considered. Slurry pumps with replaceable liners and wear-resistant parts usually have lower maintenance costs and are more economical for long-term use.
8. Sealing and Sealing Type
In slurry pumps, due to the harsh working conditions, seals are especially important. Choosing the right seal is based on the type of slurry and working pressure. Mechanical seals are suitable for high pressures and abrasive fluids, while felt bowls can be used for lower pressure conditions.
Summary on Pump Selection
The correct selection of the slurry pump can have a great impact on reducing costs and increasing the life of the pump. In this process, accurate knowledge of working conditions and slurry properties is one of the most important points. For the final selection, it is recommended to consult with experts and check the technical specifications of the pumps to ensure the perfect fit of the pump with specific needs. It is enough to be in contact with the experts of Zarineh industry.
Care and Maintenance of Slur Pumps
Care and maintenance of slurry pumps is very important due to working in harsh conditions and contact with abrasive materials. Proper maintenance of these pumps can increase their lifespan, prevent sudden breakdowns and reduce repair costs. Following are the important points for the care and maintenance of slurry pumps:
1. Periodic inspection of components: Regular inspection of the main pump components such as impeller, shaft, bearings, and liners is very important. These inspections can detect early signs of wear and tear to prevent serious breakdowns and downtime. During the inspection, special attention should be paid to the wear of the impeller and liners, since these components have the most contact with abrasive materials.
2. Adjusting and replacing the propeller: The propellers in slurry pumps are under pressure and wear more than other components. To maintain the optimal performance of the pump, the distance between the impeller and the shell must be adjusted regularly. This will help to prevent the reduction of pump efficiency and prevent excessive wear on the impeller and body. In case of excessive wear, it is better to replace the impeller.
3. Repair and replacement of liners: liners or internal covers of the pump are vital parts against wear. Over time and due to contact with abrasive particles, these liners wear out. It is recommended that the liners be replaced as soon as any damage or excessive wear is observed to prevent damage to the main body of the pump.
4. Seal system maintenance: Seals have the task of preventing fluid leakage outside the pump, and due to the harsh working conditions, they need special care. Mechanical seals, felt bowls or centrifugal seals should be checked regularly and adjusted or replaced as needed. Paying attention to the correct functioning of the seals can prevent leakage and the entry of particles into the pump.
5. Lubrication and maintenance of bearings: Bearings need regular lubrication to prevent wear between moving parts. Proper and timely lubrication reduces heat and wear in bearings and increases their useful life. You should also pay attention to signs of bearing failure, such as unusual noises or vibrations, as these indicate the need to replace or repair the bearings.
6. Paying attention to fluid pressure and flow rate: controlling and adjusting the pressure and flow rate of the fluid entering and leaving the pump is very important. Pump operation in inappropriate pressure and flow conditions can damage components and reduce efficiency. It is better to use pressure and flow monitoring so that the pump performance is optimal and within the recommended limits.
7. Periodic cleaning and descaling: If slurry pumps are used in situations where there is a possibility of accumulation of sediments or solid materials, the pump must be cleaned periodically. This prevents flow blockage and reduced efficiency and increases the useful life of the pump.
8. Planning for preventive maintenance: Having a plan for preventive maintenance can prevent sudden and costly breakdowns. In this planning, periodic inspections and replacements are predicted and scheduled. This helps to optimize efficiency and reduce repair costs.
9. Training of maintenance personnel: one of the important factors in proper care of slurry pumps is proper training of maintenance and repair personnel. Personnel must be familiar with the principles of operation, components, and maintenance and repair methods of these pumps so that they can correctly identify the signs of failure and take appropriate action.
Summary on the Care and Maintenance of Slur Pumps
Basic maintenance and care of slurry pumps requires attention to points such as regular inspections, adjustment and replacement of wear parts, periodic lubrication and cleaning, and personnel training. Observing these tips will not only help to increase the useful life of the pump, but also reduce operating costs and prevent sudden stops in industrial processes.
