Mehr Van Air Industry, Supply and Sell Types of Screw Compressor Filters
Filters have many applications in all kinds of screw compressors and are considered as one of the main and vital components of this category of equipment. So that their performance plays an important role in the final quality of the produced compressed air. The use of high-quality filters is very important in removing pollution, dust particles and solid particles, and defects in the performance of filters cause problems in compressor parts and downstream equipment. Therefore, it is necessary to check the condition of the filters.
Negligence in checking the compressor filters on time and as a result, not replacing them on time causes problems in the system's performance, in this context, the following can be mentioned:
- بروز خوردگی در قطعات و تجهیزات بعد از فیلتر
- افزایش هزینههای بلند مدت
- تاثیر بر کیفیت محصول نهایی تولید شده
- اختلال در تأمین مداوم هوای فشرده به دلیل افزایش تعداد توقف
Choosing the right filter for the compressor is very important. Items such as the type of compressor, required degree of filtration, required air flow rate, as well as the desired quality and efficiency for the filter are among the criteria for the appropriate selection.
Screw Compressor Fetters can be divided into three categories:
1. Air filter (Compressor air filters)
2. Oil filter (Compressor oil filter)
3. Filter separator (Compressor oil separator)

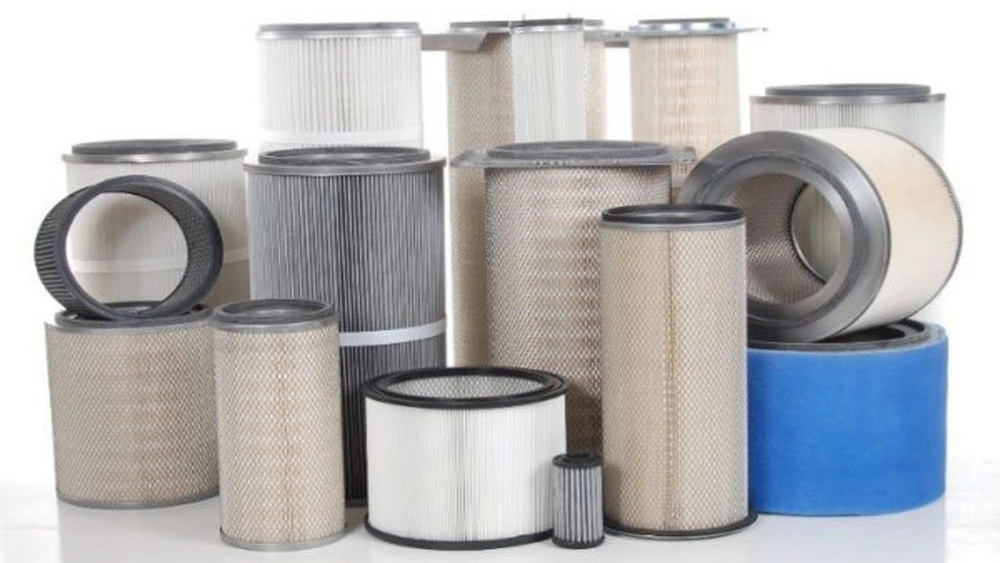

Air filters in screw compressors have the ability to separate most of the dust particles in the incoming air and are known as the first protector of the internal parts of the compressor, such as valves, rotors and oil used to lubricate the system. The use of high-quality air filters compared to low-quality filters provides a longer useful life for the separator filter and the oil filter. Also, this equipment plays an important role in preventing contamination of the lubricant used in the system, which increases the lifespan of the screw compressor as well as the efficiency of the system.
Oil Filter (Compressor Oil Filter):
In addition to separating dust and metal particles, oil filters also remove sticky substances inside the oil, which increases the lifespan of compressor parts, including bearings, bearings, and rotors, which ultimately prevent sudden stops (locking). The compressor prevents.
By passing the oil through the outer layer of the filter and penetrating into its center, the level of cleanliness of the oil is improved and finally the oil returns from the central tube of the filter to the lubrication circuit of the screw compressor.

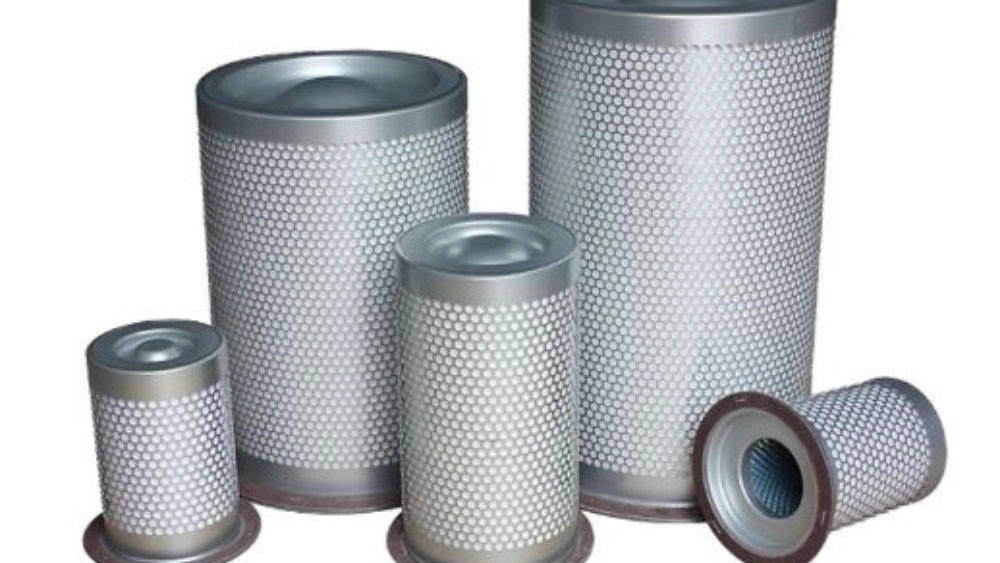

Filter Oil Separator:
The function of this group of filters is in such a way that the air flow containing oil particles enters the filter chamber radially and with the help of centrifugal force, most of the oil particles settle and the air flow enters the filter embedded in the chamber. Then the oil-free air is removed from the center of the filter and the separated oil particles are settled again. The oil collected at the end of the separator filter returns to the lubrication circuit of the screw compressor.
Finally, it should be said that due to the strategic importance of screw compressors and the important role they play in the industry, paying attention to the health of these equipments and checking their performance should be considered important. On the other hand, the filters, which are considered as one of the sensitive parts in these compressors, should also be taken into consideration by the manufacturers in order to avoid possible risks and failures and ultimately to improve the quality of the final product.
