Qubit crusher is one of the crushing and processing equipment in mines, which is used for crushing in the secondary or tertiary circuit after the jaw crusher. Of course, in some mines, this crusher is also used in the first line or primary circuit.

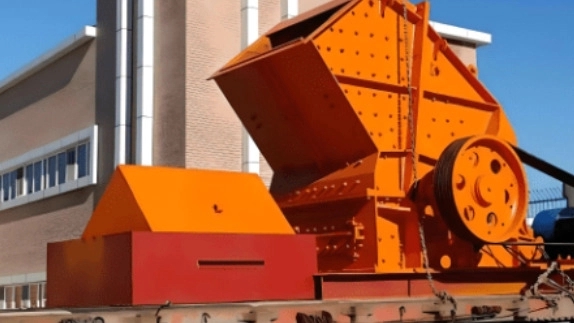

What is a Cubit Crusher or Tap Crusher?
Qubit crusher can be used as primary, secondary and tertiary crushers. These stone crushers grind minerals using impact force. Kubit stone crushers are used to crush stones from mines or rivers in sizes of 10 to 15 cm. Cobit stone crusher is made of a rotor that has 2 to 6 rows of cobit hammers and rotates at high speed.
It is one of the primary and secondary stone crushing devices in mines such as sand, lime and gypsum and it crushes medium-sized soft minerals and turns them into small grains of sand, peas and almonds. The role of the hammer blades or Cubit's hammer is to throw the input load pieces (stones and minerals) towards the inner wall of the crusher (Cubit's anvil or Cubit's shoulder). With the rotating movement of the rotor, the incoming stones are thrown towards the wall and the anvils and the crushing process takes place. The qubit hammer is used in impact crushers, the qubit crushers are lined up inside the crusher for crushing.
Cubit Crusher Machine Mechanism
Kubit stone crusher uses the high speed of the rotor to hit the broken materials from the previous steps. The incoming materials and stones are crushed after hitting the hammer and hit the cover plate again by the impact of the hammers and finally exit the discharge port. The user can adjust the distance between the back frame and the rotor frame, which can change the grain size and shape of the material.
Functional features of Kobit Crusher Machine:
- یک ساختار ساده، عملکرد منحصر به فرد، مناسب برای خرد کردن سنگ سخت.
- مصرف انرژی کم، عملکرد بالا، نسبت خردایش سنگ شکن زیاد، به طور کلی 10-20 ، تا 50-60.
- با عملکرد شکل دادن ، محصول به شکل مکعب ، تراکم بسته بندی بالا ، اندازه تخلیه قابل تنظیم ، روند شکست ساده است.
- توزیع دانه بندی مناسب
- به راحتی می توان مقدار تغذیه خط تولید را تنظیم کرد و اندازه خوراک را افزایش داد.
- استفاده از تجهیزات مقاوم به شکست در برابر ضربه که از مواد جدید مقاوم در برابر سایش می باشند و اکثرا از جنس فولاد منگنزدار ساخته شده اند.
- استفاده و نگهداری آسان

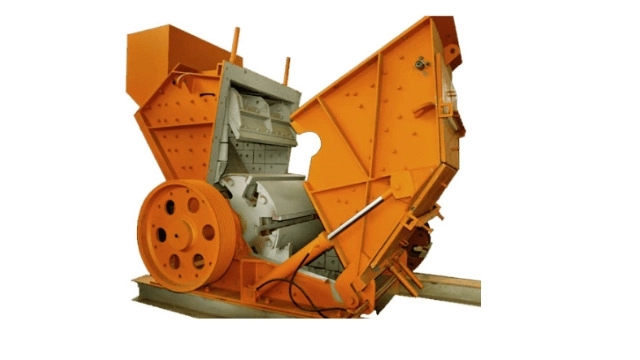

The Qubit stone crusher is another type of impact crusher that crushes stone pieces with impact force. This is a horizontal impact crusher, which means that the crushing action is based on the movement and speed of the rotor. Qubit crusher can be used as a primary, secondary or tertiary type crusher.
This device is considered one of the most important and first processing lines in most mines and processing factories. This device generally has bodies that can be assembled and disassembled again. Also, this type of device has facilities for replacing parts, upgrading the device and adjusting the screws of the output load opening so that the size of the output material can be controlled.
Cubit crusher based on the model
Qubit Parker
This machine has an input capacity of 150 tons and is used to produce polyhedral sand.
Double-sided qubit
This machine also has an input capacity of 50 to 60 tons and the size of the input stones is 40 to 50 mm. The stone crusher has an input of 180 tons per hour It also has the ability to recycle and hammer.
Kubit Behringer HS
This machine has an input capacity of 180 tons per hour and also the percentage of broken materials and stones in this crusher. It will be very high.
What is Cubit Crusher or Stress and how it works?
The qubit or impact crusher is a mining equipment that is used to crush minerals in the processing stages and after the jaw crusher. This type of stone crusher is used as a secondary and tertiary stone crusher in processing and crushing lines. Qubit crusher consists of a rotor with 2 to 6 rows of hammer blades, and the high speed of the rotation of the rotor causes the incoming load parts (stones and minerals) to be thrown towards the walls and anvils.
The role of the hammer blades is to throw the incoming load parts towards the inside wall of the crusher. In this type of crusher, the granulation of the output load can be adjusted by the Qubit crusher regulation system, and it has two hydraulic types (jacked) and simple.
In addition, a brick shield made of anti-wear alloys is installed on the wall of the Qubit crusher, which acts as an anti-obstacle, and the pieces of the incoming load are crushed when they collide with them. The speed of moving blades in this type of crusher is 15 to 50 revolutions per second. Qubit stone crusher is made in several different models with input feed capacity and production rate per hour.
