Types of transformers are designed and manufactured for various applications. Obviously, each of these transformers has different uses. Based on their application, they are divided into different types:
Transformer Separate or isolation
This type of transformer, whose coils are electrically separated from each other, is used as an isolation transformer to electrically isolate devices and prevent electrocution. The primary end of the isolating transformer is connected to the ground; So if someone touches a wire on the secondary side, no current will flow and the person's safety will be maintained.
Insulation transformer
Insulation transfers based on insulation used are divided into two categories of dry and oil.
Dry transformer
There is no liquid cooling in this system and its windings are covered with epoxy resin to protect against air humidity; Therefore, air is used to cool it. Air is not a good insulator; As a result, in the structure of this transformer, large coils have been used to compensate for the high temperature. In addition, for this reason, it is not possible to use this type at voltages higher than 33 kV. The weak cooling system of this dry transformer has caused them to be exposed to excessive heat during operation. This high temperature by itself reduces the useful life of the transformer.
Oil transformer
The cooling system used in this type of transformer is flammable oil. One of the advantages of this cooling system compared to the previous one is better cooling. For this reason, this system is usually used for high-power transformers that are in harsh outdoor environments.
Of course, the oil transformer is not perfect, and due to the oil tanks and sensors needed to monitor the humidity, the dimensions They are very big. In addition, oil is flammable; As a result, oil transformer is not suitable for indoor use.
Control transformer
is a type of transformer whose coils are electrically separated and, as the name implies, is used for control. Different types of voltage or voltage transistors are among their various types.
Auto transformer or automatic transformer
This transformer has three heads, two of which are fixed and one variable. In order to change the number of turns of the coils, the variable head can be moved. This easily increases and decreases the voltage.
Power transformer
Transplant is used to increase and reduce voltage in power plants. The operating voltage in these transformers is high and its size is very large.

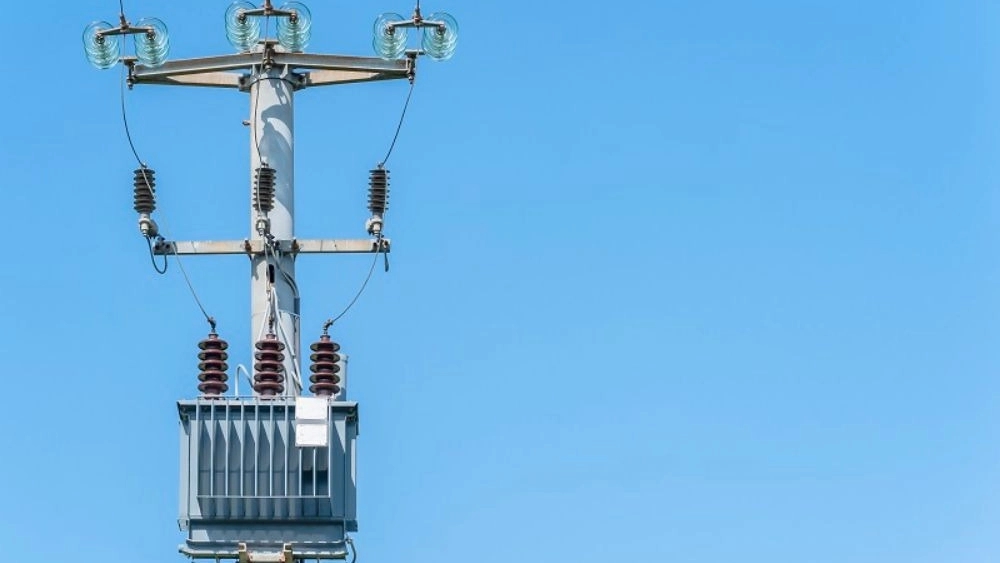

Distribution transformer
Distribution transformers are used to distribute the consumed electricity to domestic and commercial units. These transformers must reduce the voltages of the transmission lines to the level of domestic and standard voltages. These types of transformers are smaller than the types of power transformers.
The types of transformers are smaller than the types of power transformers.
Inner and outer transformer
If there is a need for electrical appliances outside the building, the external transformer work is used; Otherwise, in the case of electricity inside the home, the internal transformer work is used.
Increased transformer and reduced transformer
This booster device increases the input voltage to higher values. In fact, the input voltage in the primary coil is low and its current is high, and when it reaches the output coil, the voltage increases and the current decreases. On the other hand, the step-down transformer reduces the input voltage to lower values.
Three -phase and single -phase transformer
Three-phase electricity is more efficient than single-phase electricity; For this reason, the use of three-phase transformers is more due to their efficiency and reasonable price. But in some cases, single-phase transformers are more useful due to their smaller dimensions and easier transportation.
Transformer power supply
Transformers in which one or more secondary coils are electrically separated from the primary coil.
Transformer spark
A type of transformer whose coils are electrically separated from each other and are used to ignite a mixture of air and gas or air and oil using a spark or an electric arc.
Transformer flow
This model, which is usually connected to the series, is the transformer work of reducing and controlling the input current and protecting protective systems. In fact, the current transformer work (CT) in the circuit is to reduce the current and use a standard ammerster to provide an electric current monitoring of the AC transmission line (for the use of connected tools and relays) and thus prevents The damage is connected to the secondary system.
Voltage transformer
is a type of transformer that is used to measure voltage. The power transformer works in such a way that it is designed and produced in three phases and it is used to reduce the voltage to lower values.
