Introduction

Why is CNC's ureal machinery a specialized process?

The key reasons that distinguish CNC machinery are:

Micronic Care: The main purpose of these devices is to achieve very closed tolerances (micron). Any minor disadvantage in the screw wings, rails, spindles or measuring system eliminates this accuracy.

Electromechanical coordination: Correct performance of engines, drives, encoders and controller must be in full coordination. Troubleshooting in this section requires specialized electronic knowledge and control.

Complex Control Systems: CNC controllers (such as Fanok, Siemens, Hyde Hein) have complex operating systems whose parametric settings, backup and troubleshooting require special expertise. And laser calibrations to compensate for the composition error are vital steps in cnc ureal machines that cannot be made without special equipment.

Under the car, we have fully aware of these complexities, we have designed a well -specialized process to ensure your device returns to the ideal factory conditions.

Step -by -step process of cnc machinery in the Vanguard Car Collection

Our process in the car's leader is not a simple checklist, but a precise engineering path that is done with obsession with specialized tools.

Stage One: Accept, Documentation and Initial Assessment (Pre-Ververhaul Assessment)

CNC Machinery Travel begins with a comprehensive evaluation.

Technical Session with the Client: First, our technical team will hold a meeting with your operators and technical managers to record the device history, observed problems, alarm history, and your expectations of the overheld process.

Operating Tests: If possible, the device is in the workplace, or in the workplace. Spindle, tool replacement system (ATC) and cooling system are performed.

Complete Backup: The most important step at this stage is to provide backups from all Machine Parameters, PLC parameters, macro applications and tools. This prevents the loss of critical controller information.

Video Documentation: All parts of the device are done before the device, shooting and filming, so that the complete reference is available in the assembly phase.

Step Two: Systematic Disassembly (Systematic Dissemination)

Demonight of a CNC device is an art that requires a lot of precision and patience.

Separation of covers and auxiliary systems: First, all protective coverings, chip conveyor and cooling system are separated.

Damantage of Corporate Units: Then key units such as spindle, tool replacement mechanism, axis (desk, chamber, etc.). At this point, our team's expertise in the pneumatic, hydraulic and electrical map plays a vital role. This order guarantees a perfect assembly in the process of CNC's ureal machinery.

Step Three: Specialized Cleansing and Preparation for Inspection

All parts of the disabled are transferred to the industrial washing unit. In this section, using standard solvent materials and pressure washing machines, all parts are cleaned of burnt oils, older greases, cuts and contaminants. This cleanliness is necessary for the technical inspection phase.

Step Four: Multi-Point Technical Inspection Technical Inspection

This is the beating heart of the ureal process of CNC machinery in the car. Our inspection consists of three main sections:

Mechanical inspection:

Ball Screw & Nut: Backlash, checking shotguns and grooves.

Rail and wagons (Linear Guideros): Eye inspection and instrumentation for any baking, corrosion or abrasion. Runut Shaft, Barring Test for Sound and vibration and inspection of the clamp system.

Geometry Geometry: Flatness and Parallelism (Parallelism) main body. < Need.

Electrical and electronic inspection:

Power Cabinet: Inspection of all contactors, relays, fuses and wiring in terms of health and safety standards. Motors & Drives: Test the performance of the servo motors and drives for each axis as well as the Spindle motor. Encoders & Linear Scales: Cable health check and send the correct pulse. Power Supply and Control Board: Testing Output Voltages and Outlook Examination for any damage or defective capacitors.

Inspection of Side Systems:

Hydraulic and pneumatic system: Pump inspection, electric valves, jacks and piping for any leakage or pressure drop. Coulant System: Survey of Soap Pump Health and lack of cramps on paths. Tool Replacement Mechanism (ATC): Complete inspection of the replacement arm, pots and related sensors.

Step Five: Providing a comprehensive and translucent pre -replication report

Once the inspections are completed, the Vanguard Engineering Team provides a complete technical report. This report contains a detailed list of parts that require repair, reconstruction or replacement, along with a technical analysis of the cause of failures. The client is then submitted to the employer to make a full knowledge of the costs and measures required to continue the process of CNC machinery.

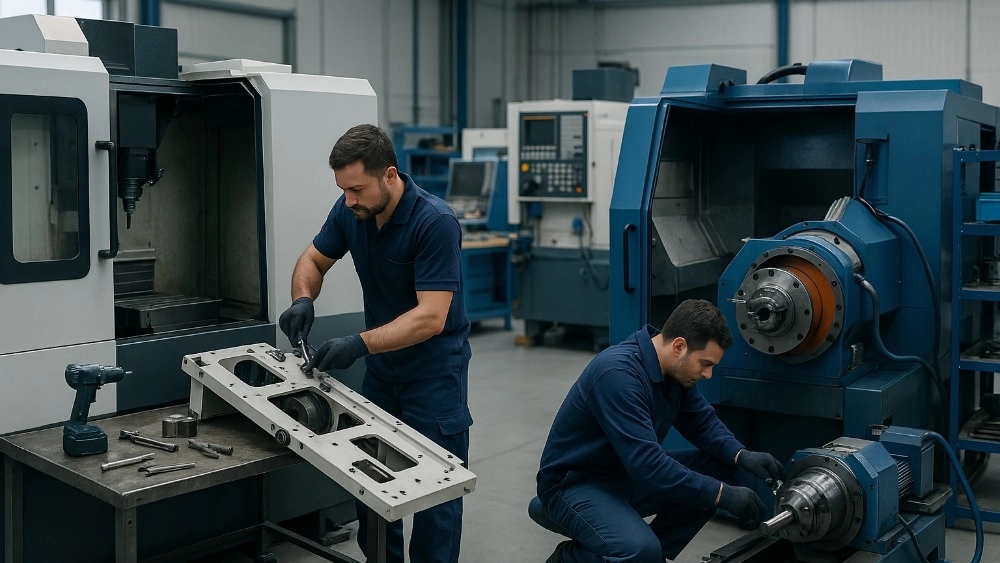

Step Six: Repair, Reconstruction and Provision of Parts

At this stage, corrective measures begin based on the technical report: Stone and Reconstruction: If possible, parts such as table surfaces or rails that have partial abrasion are precision and regenerated. Key parts replacement: consumable components such as spindle bearings, screw wings, wagons, and sealing parts with original parts (OEM) or reputable European and Japanese alternatives are replaced. The car's leader does not use low quality parts in the Ureal process of CNC machines. Electronic Repair: Defective electronic boards are replaced by electronic specialists or if necessary with a healthy sample.

Step Seven: Engineering and accurate settings assembly

assembly phase is done with precision even more than demons. chassis and initial level: The main body of the device is aligned on the foundation and is ready to install other components. Installation of the axis and wings of the screws: The wings of the screws and rails are installed on the screws by standard torque applying. Alignment is crucial at this stage. Spindle and other units installation: Spindle and other components are carefully installed and all electric, hydraulic and pneumatic connections are made according to the map and the initial documentation.

Step Eight: Calibration, Final Tests and Quality Control (QC

This step guarantees the device's final accuracy. Geometric calibration: are adjusted using accurate tools such as Gonia Granite, surface gauge and clock indicator, geometric parameters of the machine such as Squareness and Parallelism. Backlash Compensation: The mechanical stuff of the axes is measured and its value is entered into the controller parameters to compensate for software. Laser Calibration (Optional): For very precise devices, the Laser Interferometer is used to measure and compensate for the Pitch Error Compeensation throughout the axle. This service distinguishes CNC's overweight levels in the car's leader. Function Tests: The device is tested for 1 to 2 hours (Test Cut). During this time, parameters such as machine accuracy, surface quality, spindle temperature and ATC performance are carefully controlled and recorded.

Step 9: Delivery, Installation and Warranty

After ensuring the perfect performance, the device is ready to deliver to the employer. The Vanguard Technical Team will install the machine in your location, set up and test the final test in the presence of your representatives. All CNC Oral Machinery Projects in the Vanguard of the Machine includes a reputable warranty and replacement parts with technical support services.

Car Vanguard: Beyond a repair, a complete revival

Choosing the leader of the car for your CNC machinery means to transfer your most valuable asset to a team that cares about the details. We understand that a micron in the CNC world means the difference between a perfect piece and a piece of waste. Our commitment to the use of high quality components, accurate calibration equipment and up -to -date technical knowledge of our team guarantees that your overweight device will not only re -life, but also back to your production line with a precision on the first day.

If you see a decrease in accuracy, increased unusual sounds, or recurrent errors in your CNC car, don't miss the time. A cnc urea machine -planned machinery by leading car specialists will prevent the staggering costs of sudden failures and long -term production line stops.
