Hydrocon 36 inches, a powerful cone crusher for crushing hard rocks
Hydrocon 36 inch machine is one of the most used and powerful equipments in the crushing lines of stone mines. This device is designed and built to crush hard and abrasive stones such as granite, silica, barite, feldspar and other minerals with a medium to high degree of hardness.
Technical specifications of Hydrocon 36 inches
Machine model: Hydrocon 36 inches (cone crusher)
Type of application: secondary and final crushing of minerals
Electromotor power: 90 to 110 kW
Production capacity: about 150 to 180 tons per hour (depending on the type and hardness of the stone)
Materials of wear parts (concave and mantle): wear-resistant manganese steel with molybdenum
Cooling system: water and oil to increase the life of bearings and internal parts
Type of outlet adjustment: hydraulic with high precision

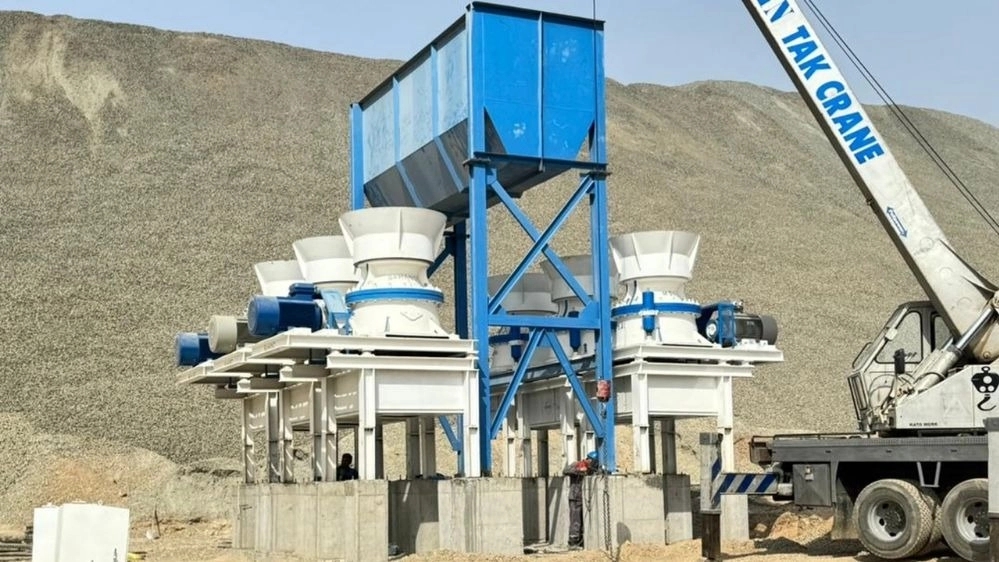

How to place the hydrocon device in the crushing circuit
Hydrocon device is usually placed in the second or third stage of crushing (Secondary / Tertiary Crushing).
Its working process is as follows:
In general, Hydrocon plays a key role in the production of uniform granulation, increasing the capacity of the production line and improving the quality of materials.
Hydrocon 36 inch stone crusher spare parts
Hydrocon brass bushings
Hydrocon brass bush is one of the important consumable parts in the cone crusher, which is responsible for reducing the friction between the rotating parts. These bushings are usually made of brass alloy that is resistant to wear and heat and are used in parts such as congress bushing, eccentric bushing, lens, and floor ring.
The manufacturing quality and exact tolerance of the brass bushings have a direct effect on the lifespan of the shaft and the smooth operation of the device.
Hydrocon eccentric bushing
Hydrocon Eccentric Bush is one of the main parts of the rotary motion part of the crusher and causes the rotary movement of the moving cone or mantle. This piece is made of high-quality brass that is resistant to pressure and heat so that the rotating movement of the device is smooth and without friction.
Eccentric bush with precise design plays an important role in increasing the crushing efficiency and preventing sudden blows to the body of the machine.
Congress Bush Hydrocon
Congressive bushing is installed at the junction of the main shaft and the body of the device and has the task of preventing slack and accurately adjusting the axis of rotation of the cone. This piece is made of brass or phosphor bronze alloy resistant to wear and heat.
The precise installation of the congressional bush reduces vibration and increases the working life of the shaft and eccentric.
Hydrocon lens floor covering
Hydrocon lens floor is a part that absorbs the axial forces resulting from its crushing and prevents the transfer of shocks to the shaft and body. This part is made of resistant steel or industrial bronze and is located under the main shaft.
Using a high-quality floor mat increases the stability of performance and reduces the depreciation of other parts.
Spider (Spider) short and long
Hydrocon Spider or the upper support arm plays an important role in the stability of the moving cone and power transmission to the main body of the device. This part is produced in two models, short spider and long spider, which are used depending on the type of crusher (36, 45, 51 inches, etc.).
Spider is made of precision and durable cast steel.
Shaft head bushing
Hydrocon sheath head bush is installed in the upper part of the main shaft and has the task of guiding and aligning the movement of the shaft during the rotation of the movable cone (mantel). This part is made of anti-wear alloy steel, and its precise machining is necessary to prevent laxity and early failure of the device.
Hydrocon cooling (Cooling Unit)
Hydrocon's cooling system is responsible for removing the heat generated during continuous operation of the device. This system usually includes cooling water, radiator, oil pump and oil filter, which prevents excessive temperature increase of hydraulic oil and bushings.
The correct operation of the cooling increases the useful life of the eccentric, bushings and shaft. The most common cooling models are 460 and 560.
MO40 hydrocon shaft
Hydrocon main shaft is made of MO40 alloy steel, which has high resistance to twisting, bending and heat. This shaft, as the central axis of the moving cone, transfers the force from the eccentric to the cone.
Using a shaft with MO40 material increases durability, reduces the possibility of breakage and stable operation of the device.
Features and benefits of the 36-inch golden hydrocon
* High resistance to wear and impact in heavy working conditions
* uniform grinding and production of high quality materials
* Wide application in crushing and granulation of fine grains in metal mines
* Easier to repair and replace wear parts (concave and mantel)
* Ability to quickly adjust the output opening to change the size of the final product
* Stable performance and long life of internal parts
Device applications
* Crushing and processing lines of hard minerals
* Production of materials for construction and road construction projects
* Sand production factories
* Mineral industries including granite, silica, feldspar, barite, gold, copper and iron ore
Why are the goldsmiths of Tehiz Sanat Zarrine?
Talayehdaran Tahaziz Sanat Zarineh Company produces hydrocon stone crushers in accordance with industrial standards by using modern technical knowledge and using high quality raw materials.
In addition to manufacturing the device, the engineering team of this company also provides installation, commissioning and supply of spare parts so that customers can benefit from high productivity and low maintenance cost.
Contact us
To get technical advice, price inquiry and order Hydrocon 36 inches, contact the experts of Talayehdaran Tahiz Sanat Zarrineh company.
09123653281
Goldsmiths of Zarineh Sanat Equipment - expert in designing and manufacturing mineral crushing and processing equipment
