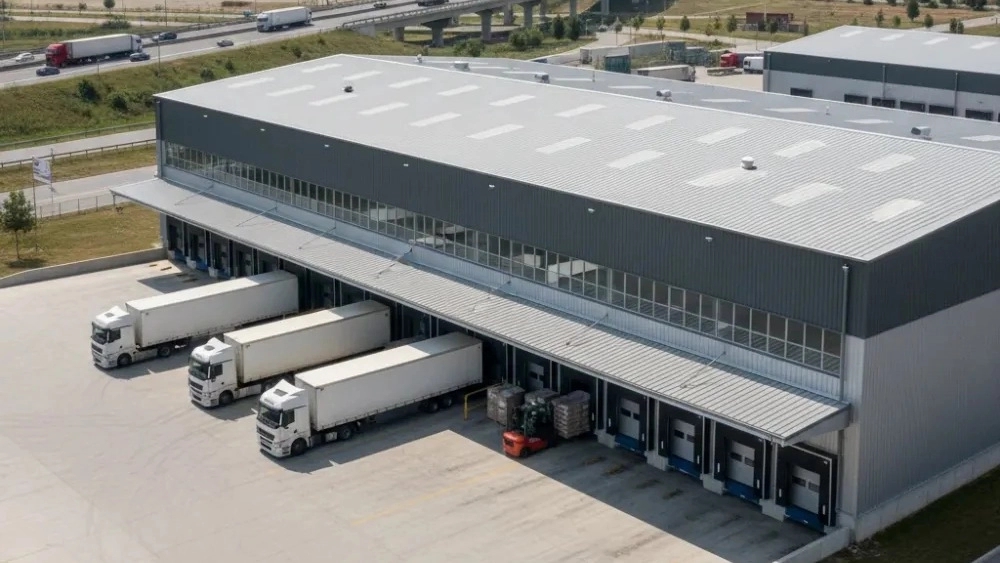

Design and construction of sheds with large openings for production units
Designing and building a shed with a large opening for production units is one of the most important challenges and at the same time engineering opportunities in industrial projects. Many factories, production lines, assembly units and heavy industries need a large space, without middle column and capable of bearing heavy loads. Large opening sheds are designed exactly to answer this need.
In this article, in a completely specialized and practical way, we examine all aspects of design, calculation, construction and implementation of large opening sheds; From technical and engineering requirements to costs, challenges, common mistakes and tips you should know before implementing the project.
What is a large opening shed and what is its use?
Soleh-a-dahane is a structure that has a large distance between its two main columns and an unobstructed interior space (middle column) is available to the user. This feature creates high flexibility in the placement of equipment, machinery and production lines.
The main applications of large opening sheds are:
- Heavy production factories
- Continuous assembly lines
- Multipurpose industrial halls
- Large and logistic warehouses
- Production units with several tens of tons of overhead cranes
In such spaces, the presence of the middle column can severely disrupt the performance of the industrial unit.
The importance of a large gap in the productivity of production units
Increase production efficiency
The large opening allows the design of the production line continuously and without obstacles. This issue causes:
- Decreasing transportation time
- Increasing production speed
- Reducing human error
It will.
Flexibility in the future
Production units usually develop over time. Large opening sheds make it possible to:
- Add new equipment
- Change internal layout
- Increase production capacity
Without the structure needing a fundamental change.
The challenges of designing a shed with a large opening
Designing a large opening shed is associated with serious technical challenges and cannot be done with simple or experimental methods.
Increasing the anchor and structural forces
The bigger the hole gets:
- The bending moment increases
- The control of the structure becomes more difficult
- The need for more accurate sections is felt
Sensitivity to engineering calculations
In large span sheds, the smallest error in calculations can:
- reduces safety
- increases the unnecessary weight of the structure
- or increases the construction cost
be.
Engineering principles in the design of large sheds
Choosing the type of structure
For large openings, the following options are usually used:
Choosing the type of structure depends on factors such as opening, height, crane load and type of use.
Calculation of loads on the structure
In the design of the large opening shed, the following loads are calculated with high accuracy:
- Dead load (weight of structure and covering)
- Live load (machinery and people)
- Overhead crane load
- Wind and earthquake load
- Snow load (in cold regions)
All these calculations must be done in accordance with valid regulations.
The role of overhead crane in large opening sheds
Many production units that require large openings use overhead cranes. This issue has a direct effect on the design of the shed.
Important points in this regard:
- Crane capacity determination (tons)
- Calculation of dynamic loads
- Crane column and rail design
- Structure vibration control
Not paying attention to these matters will cause serious problems in the future.
The steps of building a large opening shed
Implementation of reinforced foundation
In large opening sheds, the foundation plays a key role. Usually:
- Larger foundation dimensions
- Heavier reinforcement
- More precise concreting
It is necessary to properly transfer the loads of the structure to the ground.
Metal frame construction
The metal frame of the large opening shed should:
- With standard sheets
- Professional industrial welding
- Exact quality control
to be made. Any weakness at this stage threatens the safety of the entire project.
Structure installation and precise assembly
Installation of large opening shed required:
- Experienced executive team
- Suitable cranes
- Accurate timing
is to assemble the structure without stress and error.
Suitable cover for large sheds
Choosing the right cover depends on the following:
- Usage type
- Environmental temperature conditions
- Humidity
- Sound control
Usually from:
- Sandwich panel for sensitive industries
- Industrial galvanized sheet for general use
is used.
The cost of designing and building a large opening shed
The cost of a large opening shed is influenced by several factors:
- Width of opening
- Height of structure
- Type of metal structure
- Final weight of skeleton
- Presence or absence of overhead crane
For this reason, the final price can only be announced after detailed engineering design and thumb estimates are completely unreliable.
Common mistakes in large span projects
Some common mistakes are:
- Designing without specialized calculations
- Reducing the thickness of the sheet to reduce the price
- Choosing a contractor without the experience of a large opening
- Ignoring the future development of the industrial unit
These mistakes usually cost many times over in the future.
The advantages of choosing a specialist contractor in a large opening shed
Working with the expert team will:
In large opening projects, executive experience plays a very decisive role.
The role of Duniya Suleh company in the implementation of large opening sheds
The company Soleh World with experience in designing and implementing large opening sheds for production units, complete services include:
- Specialized engineering design
- Heavy metal frame construction
- Precise and safe installation
provides.
The focus of this collection is on safety, optimizing the weight of the structure and fully matching the manufacturer's needs.
Summary and call to action
Large opening silos are the main infrastructure of many advanced production units. The basic design and implementation of these structures directly affects the productivity, safety and development capability of the industrial unit.
If you are planning to build a large opening shed for your production unit, contact the experts of Sule World to get expert advice, technical review of the project and cost estimation and start your project with confidence.
