Hydraulic hammers are known as one of the most vital auxiliary tools in road construction and mining machinery. The power of destruction and penetration of these tools is highly dependent on the quality of their internal parts, and among these parts, the anvil or the lower bush plays a central role. This part is located in the point of direct contact with the pen or drill and withstands huge impact forces. In the heart of the heavy machinery spare parts manufacturing industry in Iran, the city of Isfahan operates as the main pole, and in the meantime, the company "Folad Tarash" as a manufacturer of hydraulic hammer anvils in Isfahan, has become a name synonymous with precision and durability. This comprehensive article examines the importance of the anvil, the production process in turning steel, and the competitive advantages of this leading company.
The strategic importance of the anvil in the performance of the hydraulic hammer

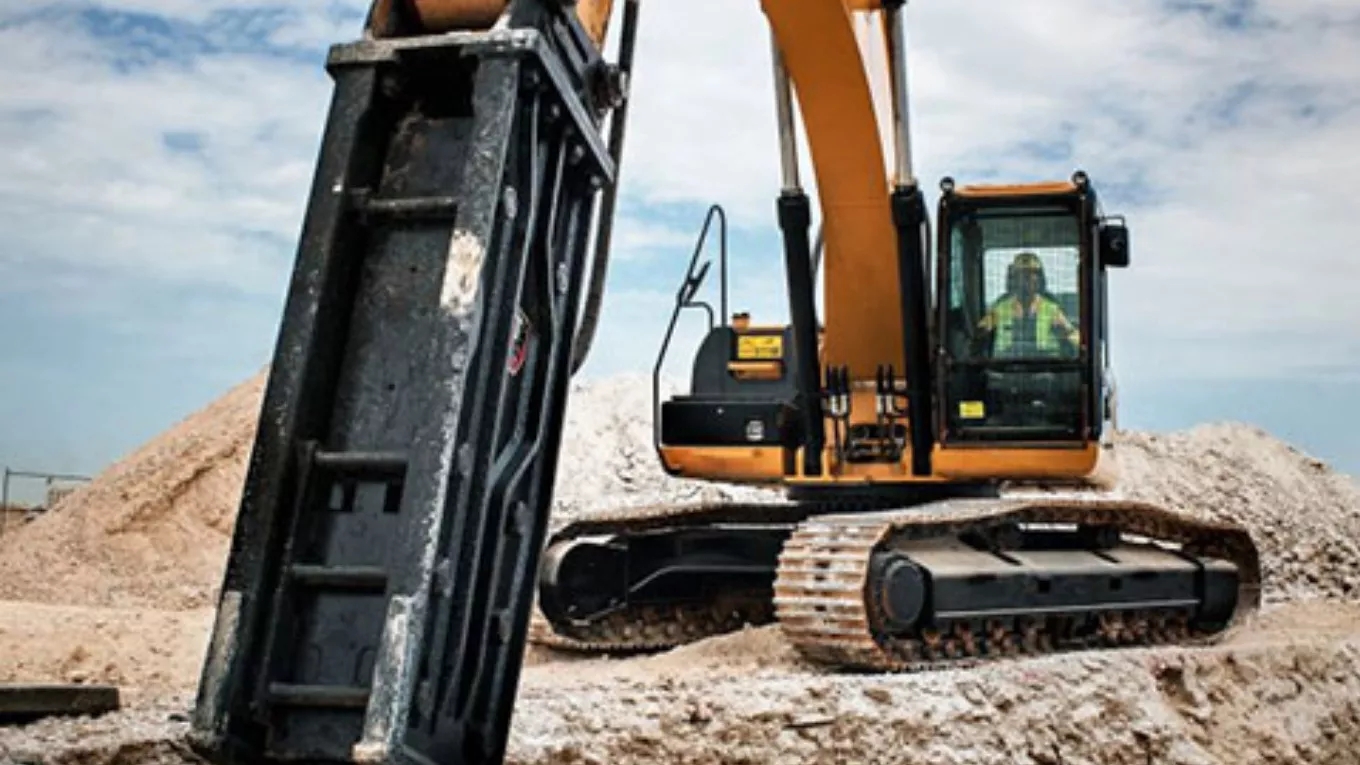

Hydraulic hammer (Breaker) is able to crush hard stones, reinforced concrete and asphalt by converting the hydraulic energy of the machine pump into impact mechanical force. The internal structure of the hammer includes the piston, cylinder, and holding parts. The anvil, which is sometimes known as the lower bush or the pencil holder bush, is responsible for holding the chisel firmly in place and preventing it from deflecting. Also, this piece is directly affected by return shocks and must be able to continuously absorb and transmit these strong blows.
Understanding the stresses on the anvil
The operation of a hydraulic hammer means repeating thousands of blows per minute with very high pressures. These conditions lead to extremely intense compressive, shearing and abrasion stresses on the anvil. If the material and hardness of the anvil are not chosen correctly, the useful life of the device will be greatly reduced and expensive repairs will be imposed on the operator. A low-quality anvil quickly corrodes, cracks or breaks, which not only reduces work efficiency, but can also cause serious damage to other expensive components such as cylinders and pistons. For this reason, choosing a hydraulic hammer anvil manufacturer in Isfahan that uses standard raw materials is a critical economic decision.
The difference between the anvil and other internal parts
Due to its placement at the end of the energy transmission path and direct contact with the work surface, the anvil must have a much higher wear resistance than internal components such as the piston bush. This need makes special processes of hardening and heat treatment applied to this part, which requires deep technical knowledge of metallurgy. As a manufacturer of hydraulic hammer anvils in Isfahan, Foulad Trash has this knowledge.
Isfahan Steel: a hub for the production of heavy road construction parts
Expertise in metallurgy and selection of raw materials
Success in the production of anvils begins with choosing the right alloy. Turning steel uses alloy steels with high chromium and tungsten or molybdenum elements, which provide excellent surface hardness and sufficient toughness to withstand shocks.
The usual process of selecting raw materials is as follows:
- Technical specification check: Determination of required final hardness (usually in the range of 50 to 58 Rockwell C HRC).
- Alloy selection: Use of special steels such as high-carbon and high-chromium tool steels.
- Input material testing: Conduct non-destructive testing (NDT) and spectroscopy to ensure correct chemical composition.
It is the precision in the selection of raw material that distinguishes us from others and guarantees our credibility as a hydraulic hammer anvil manufacturer in Isfahan.
Precision production process in turning steel
Production of a quality anvil is a combination of precision machining and engineered heat treatment. At Turash Steel, we follow these steps to the highest standards:
1. Basic and accurate machining
After preparing the raw piece, the machining stage begins. Dimensional accuracy is critical at this stage to ensure perfect alignment with the cylinder and hammer pin. We use advanced CNC machines extensively to keep part geometric tolerances in the micron range. The tolerance of wall thickness, inner diameter and contact angles with the pen must be strictly in accordance with the manufacturer's catalog. This commitment to accuracy has made every part made by a hydraulic hammer anvil manufacturer in Isfahan like us to be installed without the need for readjustment.
2. heat treatment (hard working)
This step is the heart of anvil production. The anvil must have a very hard surface to resist wear, while the core must be tough enough to not shatter under sudden blows. The hard work process includes:
B. Quenching: Rapid cooling in a suitable environment (oil or controlled brine) to transform austenite into martensite. c. Tempering: Reheating at a lower temperature to reduce brittleness and achieve desired hardness.
Exact control of temperature and time curves in induction furnaces equipped with advanced sensors guarantees the final quality.
3. Final grinding and quality control
After heat treatment, slight deformations may occur, which are corrected by final grinding. At this stage, the contact surface with the pen and the external surface that is in contact with the O-rings are finished. Finally, each production anvil is subjected to hardness testing, final dimensional measurements and visual inspection by our quality control team to ensure that the delivered product will perform at its best. As a hydraulic hammer anvil manufacturer in Isfahan, our quality is non-negotiable.
Applications and variety of steel products
Hydraulic hammers are used in a variety of industries, including open pit and underground mining, large construction projects, demolition of concrete structures, and tunnel boring. Each type of hammer (from the small size of 90 kg to giant hammers of more than 5 tons) requires an anvil with unique dimensions and specifications.
Covering the main brands of road construction machinery
Folad Tarash has the ability to design and manufacture anvils for a wide range of popular global brands. This wide range of production shows our high engineering power.
Some of the brands for which we produce anvils:
- Atlas Copco: SB, MB, HB series.
- Breacmar: Production of various anvils with custom hardness.
- Komac: heavy models used in mining projects.
- Soma (Soosan) and Daewoo (Daewoo).
- Komatsu (Komatsu) and Hyundai (Hyundai).
Each production anvil is precisely matched to the original hammer model. For example, an SB 452 model hydraulic hammer anvil requires completely different tolerances than an SB 130 model. Our ability to respond to this diversity has made us a valuable partner for machine owners. We claim that as a hydraulic hammer anvil manufacturer in Isfahan, we offer the most comprehensive portfolio.
Hydraulic hammers and the role of anvil in productivity
Hydraulic hammer efficiency (Energy Transfer Efficiency) is a function of the amount of energy that is transferred from the piston to the pen. In ideal conditions, 95% of the energy should be transferred. Any looseness or premature wear at the point where the pen is connected to the anvil causes this energy to be wasted in the form of unwanted vibrations and heat generation. The anvil with the quality of the lathe steel, by creating a tight and precise connection (Fit Up) between the pen and the cylinder, minimizes this energy loss and directly increases the productivity of your machine.
Competitive advantage of turning steel in the market
In a market that is full of domestic and foreign competitors, Foulad Trash Company has been able to strengthen its position as a manufacturer of hydraulic hammer anvils in Isfahan by relying on three main pillars: quality of materials, precision engineering, and extensive after-sales services.
Quality of raw materials and optimal heat treatment
As mentioned, the useful life of an anvil is directly measured by its hardness and toughness. Instead of using generic standard materials, we invest in alloys that are optimized for the harsh working conditions of our region. Our standard surface hardness is often higher than market expectations without sacrificing core toughness. This achievement is the result of years of research and development in the field of powder metallurgy and precise heat treatment.
Precision turning using modern technology
Precise machining is critical to ensure proper anvil performance. Our production line is equipped with five-axis CNC milling and turning machines, which enable the production of parts with complex geometries and very tight tolerances. For example, the exact calculation of the inner radius of the bush in which the pen is placed, must be done with an accuracy of 0.05 mm, so that there is no excessive looseness or sticking of the pen. This level of precision is only possible through continuous investment in modern technologies. Every hydraulic hammer anvil manufacturer in Isfahan must achieve this level of technology in order to remain in the market.
After-sales service and technical support
We are not just a part seller at Fouldar Tara; We are a technical partner. Our after-sales service department includes expert advice to choose the hardest anvil grade suitable for your stone type and machine. Providing a valid warranty based on operational tests is one of the most important aspects of our distinction. This strong support makes customers buy with full confidence from the services of a hydraulic hammer anvil manufacturer in Isfahan.
Competitive pricing through production optimization
Given that we carry out all production steps, from the selection of raw materials to heat treatment and final machining, inside our complex in Isfahan, we have complete control over the supply chain and overhead costs. This process integration allows us to offer higher quality parts than many importers, but at a much more competitive price. This price advantage is a key decision factor, especially for companies with large fleets of machines.
Beyond the anvil: the role of turning steel in the machinery ecosystem

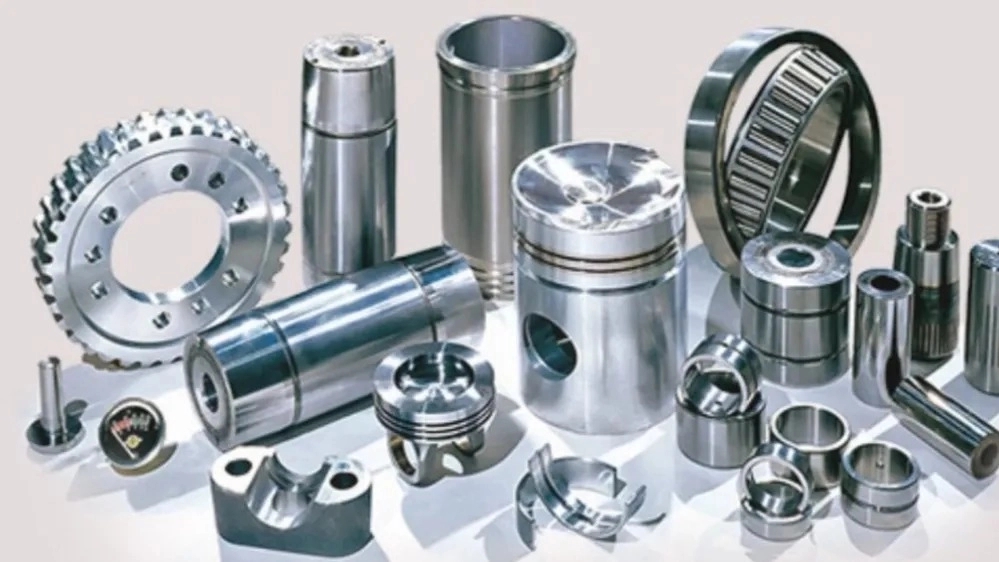

Our expertise is not limited to anvils. The in-depth knowledge we have acquired in the field of high stress tolerance and hard wear allows us to manufacture other vital parts of hydraulic hammers to the same standard. This includes pistons, cylinder liners, retaining studs and connecting pins. This comprehensive view of the entire hammer system helps us understand how changes in the quality of the anvil affect the overall performance of the machine.
An example of technical calculations in the design of the anvil
Anvil design needs to consider dynamic parameters. For example, for a hammer with impact energy $E$ and frequency $f$, the average force applied to the anvil is calculated as follows (by simplifying the impact model):
[ F_{avg} \approx E \cdot f ]
But to analyze the real stress, it is necessary to model the force distribution at the moment of impact. If $A_c$ is the contact area of the pen with the anvil, the average compressive stress $\sigma_{avg}$ is:
[ \sigma_{avg} = \frac{F_{peak}}{A_c} ]
Where $F_{peak}$ is the maximum instantaneous force in the collision. Since these forces are applied continuously, the surface hardness of the anvil must be such that these stresses do not cause plastic deformation or creep. By using Finite Element Analysis (FEA) in the design stages, Turash Steel ensures that the combination of hardness and toughness at all points of the anvil manages these stresses well. This level of engineering is one of the reasons that distinguishes us as a hydraulic hammer anvil manufacturer in Isfahan.
Why should you choose Fouldar Tarash as a manufacturer of hydraulic hammer anvils in Isfahan?
The choice of spare parts supplier directly affects the operating cost and downtime of your machines. Fouldar Tarash gives you this guarantee:
- Guaranteed durability: Use of advanced alloys and controlled heat treatment to achieve maximum useful life.
- Installation precision: Engineered tolerances for easy installation and optimal performance in the first use.
- Local support: Physical presence in Isfahan means speed in providing customized parts and quick response to technical problems.
- Economic savings: Providing a product with a lifetime. Higher than market samples and a fairer price than imports.
If you are looking for perfect performance and reduced maintenance costs, working with a Hydraulic Hammer Anvil Manufacturer in Isfahan like Fouldar Tarash is a smart choice. We are ready to meet your equipment needs by presenting successful projects and providing technical advice.
Conclusion and invitation to cooperation
Hydraulic hammer anvil may seem like a small part, but its role in the overall performance and durability of the machine is undeniable. Relying on in-depth technical knowledge, use of modern machining technologies and commitment to the quality of raw materials, the "Steel Trash" company has introduced itself as the most reliable hydraulic hammer anvil manufacturer in Isfahan. We not only manufacture parts, but also provide the most engineered wear resistant solutions. To get the complete list of products, inquire about the price and view the produced samples, contact our technical experts today and implement the experience of working with world-class parts in your machines.
