The importance of using steel fittings in industries
The stages of design and construction of conversion, knee and steel trestle in Tehran
1. Choosing the right material
2. Engineering design and mapping
3. Cutting and shaping
4. Welding and polishing
Expert examination of all types of steel fittings

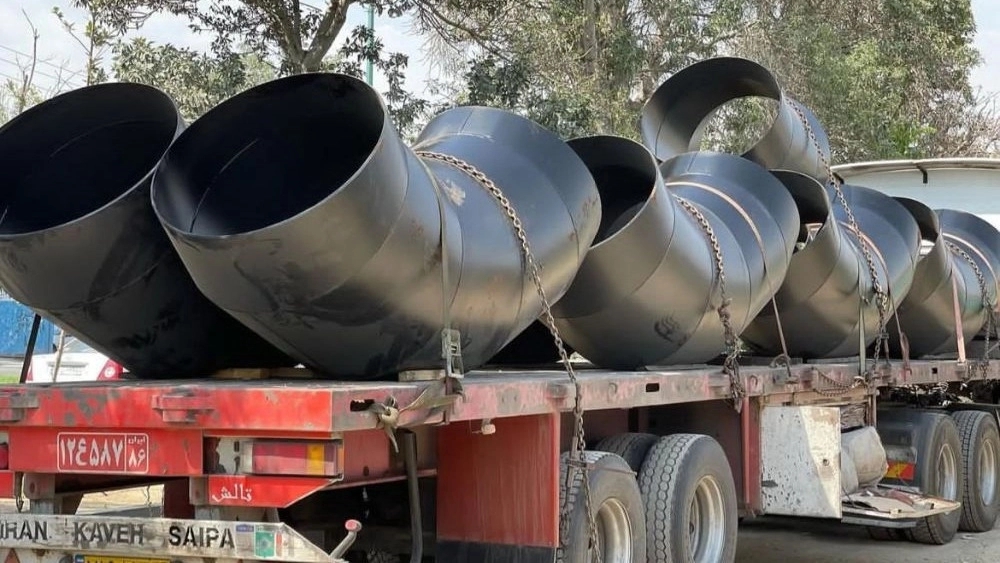

Making a steel elbow
- Long Radius Elbow: The radius of curvature is 1.5 times the diameter of the pipe and creates less pressure drop.
- Short Radius Elbow: The radius of curvature is equal to the diameter of the pipe and is suitable for limited spaces.
Making a steel tee
- Equal Tee: The diameter of the branch is equal to the diameter of the main pipe.
- Reducing Tee: The diameter of the branch is smaller than the diameter of the main pipe.
Construction of steel conversion (Reducer)
- Concentric Reducer: The inlet and outlet centers are in the same line.
- Eccentric Reducer: The centers are not in the same line and are usually used to prevent cavitation in pumps.

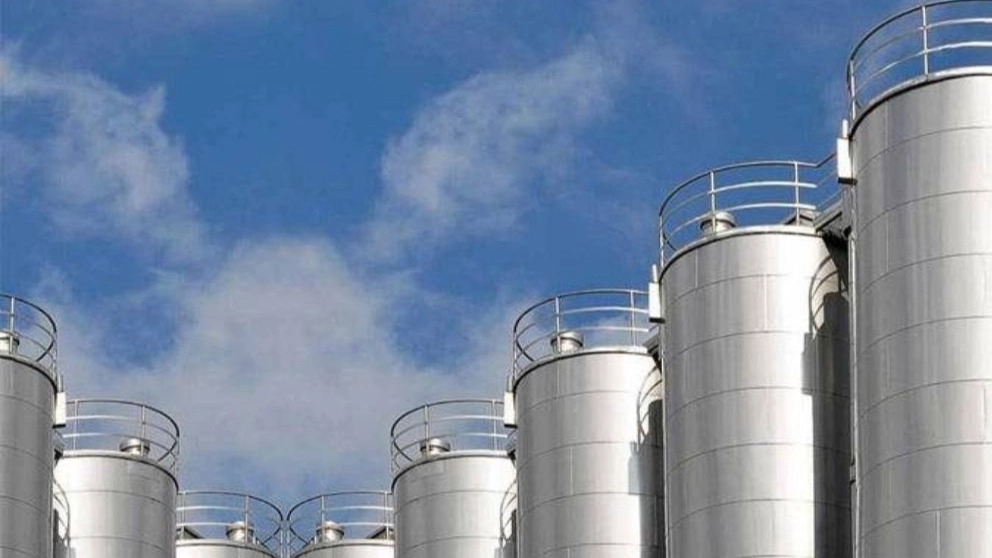

Why is Iran Makhzan the best choice for steel fittings?
- Experience and expertise: Years of activity in the construction of complex pharmaceutical and food tanks have brought the technical knowledge of this group to the peak in working with steel.
- Modern equipment: The use of automatic rolling, pressing and welding machines allows the design and construction of steel conversion, knee and three-way in Tehran to be done with international standards.
- Control Quality: All manufactured parts are subjected to non-destructive testing (NDT) to ensure the health of the weld and body.
- Competitive price: By eliminating middlemen and purchasing materials directly, the total price for the customer is reduced.
Applications of steel fittings in various industries
Services of design and manufacture of conversion, knee and steel trestle in Tehran cover a wide range of industries:
Food and dairy industries
In these industries, health is the first priority. Connections should be seamless and void so that bacteria cannot grow. The inner surface finish should be highly polished (Mirror Polish). Iran Makhzon steel tank manufacturer in Tehran understanding these sensitivities, produces fittings that pass all GMP standards.
Oil, gas and petrochemical industries
High pressure and temperature are involved here. Connections must have sufficient thickness (Schedule above) and their welding must be done under the strict supervision of welding inspectors. Designing and manufacturing of conversion, knee and steel trellis in Tehran for these industries requires valid material certificates.
Pharmaceutical industry
Similar to the food industry, but with more sensitivity. The use of 316L steel is required to avoid any chemical reaction with the drug.
Challenges of designing and manufacturing custom fittings
It is not always possible to use the standard connections available in the market. Sometimes the pipelines are old or there are severe space constraints. In this situation, the need to design and manufacture of conversion, knee and steel trestle in Tehran is felt in a custom-made way.
Production of customized parts is one of the strengths of Iran Makhzan. Engineers of this company design a piece that fits exactly in place by being present at the project site and taking accurate measurements. This avoids the heavy costs of rerouting the piping. As a manufacturer of Iranian steel tanks in Tehran, this company has the ability to build tanks with specific inlets and outlets, which requires the construction of special fittings connected to the tank.
Standards and quality control in making connections
Complying with the standards in design and construction of steel conversion, knee and trestle in Tehran is not a choice, but a compulsion. Some of the most important standards are:
In Iran Makhzan collection, all steps from entering the steel sheet to leaving the final product are subjected to strict QC inspection. Hydrostatic tests, penetrant test (PT) and visual inspection of welds are among the things that guarantee the quality of design and construction of conversion, knee and steel trestle in Tehran.
The role of argon welding in the quality of joints
TIG or argon welding is the best method for connecting steel parts. In this method, an electric arc is created under the protection of argon gas, which prevents the oxidation of the molten pool. In the process of designing and manufacturing conversion, knee and steel tee in Tehran, the skill of the welder in controlling the input heat is very important. High heat causes distortion of the part and loss of stainless steel properties (carbide phenomenon). The specialists of Iran Makhzon steel tank manufacturer in Tehran, with complete mastery of this technique, produce connections with clean, penetrating and resistant welds.
The price of design and manufacture of conversion, knee and steel trestle in Tehran
The final price of steel fittings depends on several factors:
- Today's price of steel sheet and pipe: Due to the fact that steel is imported, currency fluctuations have a direct impact.
- Weight and thickness of the part: The greater the thickness, the more material is used and the cost is higher.
- Design complexity: Making a conversion tripod is much more difficult than a simple elbow.
- Order circulation: High number of orders They usually have a lower manufacturing cost per unit.
To get the most accurate price of design and manufacture of conversion, knee and steel trestle in Tehran, the best way is to contact the sales experts of Iran Makhzan. This company provides a detailed pre-invoice including the material cost and construction fee with full transparency.
The difference between manisman and seam joints
There are two general types of connections in the market: seamless and welded.
- Manisman connections: are made of seamless pipes and have very high pressure tolerance.
- Sealed connections: are made of sheet and welded.
In sensitive petrochemical projects, the Mannesmann type is usually used, but in the food and pharmaceutical industries, where the pressure is lower, the sealed type with high welding quality is also used. Iran Makhzon as the most reliable manufacturer of steel tanks Iran Makhzon in Tehran has the ability to supply and manufacture both types based on customer needs.
How to order and advise
If you have a project in hand that requires design and construction of conversion, knee and steel trestle in Tehran, the steps of working with Iran Makhzan are very simple:
- Contact the technical unit: State your needs.
- Send a drawing or sample: If you don't have a drawing, the design team will help you.
- Cost and time estimation: A pre-invoice will be issued.
- Start production: After approval, the manufacturing process will begin with the best material.
- Delivery and Installation: Parts are delivered at the project site or at the factory door.
Tips for maintenance and repair of steel fittings
Even the best connections need maintenance. Periodic visits are necessary to check for leaks, corrosion, or loose connections. One of the advantages of working with professional collections in the field of design and construction of conversion, knee and steel trestle in Tehran is that they also provide after-sales service and maintenance advice. Cleaning with appropriate detergents and preventing sharp objects from touching the body of the fittings will increase their life.
summary
An industrial plumbing system without quality fittings is like a chain with weak links. Designing and manufacturing of conversion, knee and steel trellis in Tehran is a specialized process that should not be left to inexperienced people. Low quality connections can lead to production line stoppage, waste of raw materials and even dangerous accidents.
The Iran Makhzon company, relying on its brilliant history as a Iran Makhzon steel tank manufacturer in Tehran, now operates with strength in the field of fittings production. This collection ensures that the manufactured parts meet exactly the engineering standards and specific needs of your project. From meticulous design to skilled welding and finishing, everything is under control to give you peace of mind about fluid flow in your plant. For ordering and consulting in the field of designing and manufacturing of conversion, knee and steel trellis in Tehran, contact Iran Makhzon today and experience the difference in quality.
