In today's industrial world, productivity and longevity of equipment are the first two words. One of the biggest challenges that engineers and maintenance managers face is unwanted vibrations in machinery. These vibrations are often caused by imbalance in rotating components. blade balance and rotating parts are considered not only a repair process, but also a vital necessity to maintain health and increase the life of devices. In this long and detailed article, we will carefully examine the importance of balance, the reasons for creating imbalance, the methods to fix it, and the key role of the specialized group Initiative Balancers in providing these services.

What is unbalance and why does it occur in rotating parts?

In simple words, imbalance occurs when the center of mass of a rotating part does not coincide with its geometric center or axis of rotation. In rotating parts such as propellers, rotors, fans and turbines, uneven mass distribution causes destructive centrifugal force. The higher the rotational speed, this force increases with the second power of the speed. Therefore, even a very small amount of imbalance at high speeds can create destructive forces.

Blade balance is one of the most common requests in industries, because blades are more prone to wear, corrosion and fouling due to direct contact with fluids (air, gas, water). These factors cause the mass distribution to be confused and the urgent need for balance.

Types of imbalance in industrial equipment

To better understand the process of balancing blades and rotating parts, we need to get acquainted with the types of unbalance:

Static unbalance: When the center of mass is not on the axis of rotation but the main axis of inertia is parallel to the axis of rotation. This condition is usually seen in thin disks and narrow blades.
Couple imbalance: occurs when there are two imbalances that are equal but in opposite directions on two different planes.
Dynamic imbalance: This is the most common type of imbalance in industrial rotating parts and is a combination of static and couple imbalance. Solving this problem requires advanced equipment, which Ibatkar Balans Karan does by using the world's latest technology.

The main causes of imbalance in blades and rotors

Why does a part that is balanced in the factory need re-balancing after a while? Several factors are involved in this matter, knowing them helps to increase the life of devices:

Deposition and pollution: In industrial fans and exhaust fans, particles of dust, grease or chemicals settle on the blades. If this meeting is non-uniform (which is usually the case), the blade balance is disturbed.
Corrosion and wear: Corrosive fluids or abrasive particles cause part of the surface of rotating parts to be removed. Loss of weight at one point means imbalance.
Thermal deformation: In turbines and equipment that work at high temperatures, expansion and contraction may cause the shaft or rotor to warp.
Defects in manufacturing and assembly: Sometimes new parts also have casting or machining defects. Also, incorrect assembly of parts on the shaft can shift the center of mass.
Previous repairs: Welding on the blades or changing the blades without performing a precise balance operation is one of the main causes of vibration.

The Initiative of Balancers group not only performs the balancing operation, but also provides the necessary advice to prevent the recurrence of the problem with a detailed analysis of the root of the defects.

The destructive effect of unbalance on reducing the life of machines

Not paying attention to blade balance and rotating parts has heavy consequences for industries. Vibrations caused by imbalance act like a silent killer and destroy all car components over time.

1. Premature failure of bearings and bearings

Bearings are designed to bear a specific load. Centrifugal force caused by imbalance introduces an additional and intense load to the bearing in an oscillating manner. This additional load causes metal fatigue, excessive heat, and ultimately breaking or seizing the bearing. By performing balancing services on time at initiative of balancers, the life of the bearings can be increased several times.

2. Fracture of the shaft and axles

Continuous vibrations cause fatigue in the main shaft. These cyclic stresses can create microscopic cracks that grow over time and lead to sudden shaft failure. Such an event can stop the production line for days.

3. Loose connections and foundations

Vibration caused by unbalanced rotating parts is transmitted to the device body and foundation. These vibrations cause loosening of bolts and nuts, cracking of the bases and damage to the supporting structure of the device.

4. Reduction of efficiency and energy loss

A vibrating system spends a lot of energy to overcome friction and vibration. This means an increase in power consumption and a decrease in the output efficiency of the device. blade balance causes smooth rotation and optimizes energy consumption.

Vital benefits of rotating parts balance for industries

Investing in industrial balancing services is not an expense, but a smart saving. The main advantages of using the specialized services of Initiative Balancers are:

Increasing the life of devices: By removing destructive loads, mechanical parts suffer less wear and tear.
Noise reduction: Balanced equipment works much quieter, which improves the working environment for personnel.
Reduction of maintenance costs: Preventing major breakdowns eliminates the heavy costs of replacing parts.
Increasing product quality: In some industries, such as papermaking or textile, machine vibration directly affects the quality of the final product.
Personnel safety: Sudden breaking of rotors at high speed can cause serious life risks.

The methods of industrial balancing in the initiative of balancers

Operations balancing blade and rotating parts are performed in two general ways: balancing in the workshop and field balancing.

Shop Balancing

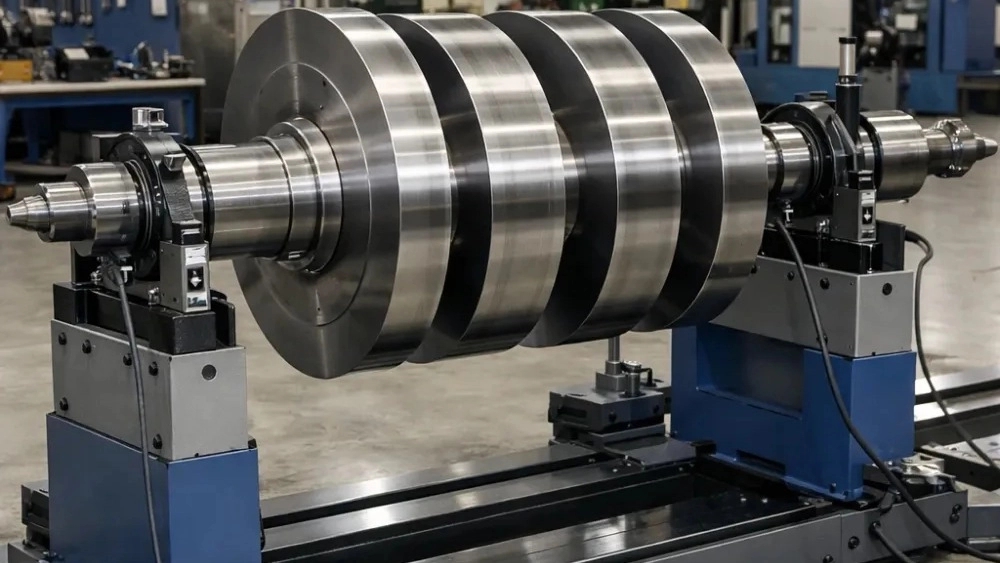

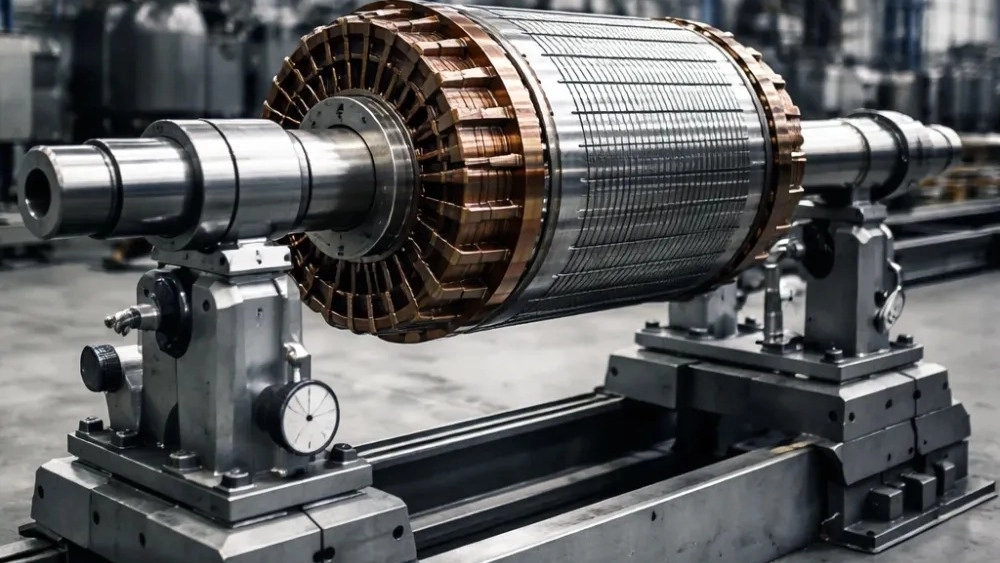

In this method, the rotating part (such as the electric motor rotor or pump impeller) is separated from the device and transferred to the Balancers initiative workshop. There, the part is placed on the advanced balance devices and is balanced with very high precision. This method is suitable for parts that need major repairs or cannot be accessed on site.

Field Balancing

Many times, opening and disassembling a large fan or turbine is time consuming and expensive. In this situation, the technical team initiative of balancers is sent to the factory with advanced portable equipment. They install vibration sensors on the machine without opening the part and perform blade balance operations in real working conditions.

Advantages of on-site balance include:

Saving the time and cost of opening and closing.
Balancing the entire assembled system (including pulleys, couplings, etc.).
Reducing production line downtime.

Work balance and accuracy standards

Balance operation should be done according to international standards such as ISO 1940-1. This standard determines how much residual unbalance is allowed for each class of machinery and each rotational speed. The experts of initiative balancers, with full mastery of these standards, guarantee the appropriate balance grade (for example, G2.5 or G6.3) for your equipment. Accuracy in doing work is the key to increasing the life of devices.

When do you need balance services?

Technical managers should be alert to warning signs. If you see any of the following, it's time to contact Balancers Initiative:

Noticeable increase in vibration: If the body of the device or the pipes connected to it have abnormal vibration.
Change in the sound of the device: Hearing abnormal sounds, howling or knocking.
Warning of the bearings: If the temperature of the housing of the bearings is more than normal.
Increased ampere consumption: If the electric motor is under pressure. and draws more current.
After any repairs: If the blades have been repaired, welded or cleaned, they must be rebalanced.

Why choose Balankaran initiative?

In the industrial services market, experience and equipment are the first words. The Balans Karan Initiative website and collection is known as one of the pioneers of this industry with years of experience in the field of vibrations and industrial balance. The reasons for distinguishing this collection are:

Modern equipment: Use of vibration analyzers and accurate balancing devices with modern technology.
Expert personnel: Use of experienced mechanical engineers who have completed specialized courses in vibration measurement and balance.
Speed in providing services: Understanding the importance of time in production has made this set of services available as quickly as possible.
Detailed reporting: After the balancing of blades and rotating parts, a full report including the initial state, final state and vibration values before and after work is presented to the employer.
Competitive price: Providing high quality services and a fair price to support the country's industries.

The importance of balancing centrifugal fans and ventilators

Industrial fans are among the equipments that need the most blade balance. These fans are usually used in ventilation systems, dust collectors and furnaces. Accumulation of material on the curved blades of these fans is very common. An unbalanced fan, in addition to making terrible noise, can cause the belts to break, the shaft to break, and even the air ducts to be destroyed.

The Balancers Initiative team has rich experience in balancing all types of forward, backward and radial fans. By carrying out a precise balance, the ventilation efficiency of the fan is increased and its depreciation is greatly reduced.

The role of balance in pumps and compressors

In water and fluid pumps, the impeller or propeller plays the main role. Cavitation and corrosion can cause imbalance of the pump impeller. This issue causes the pump to vibrate and damage the mechanical seals. Flood leakage is one of the costly problems in petrochemical and water and sewage industries. By balancing the rotating parts of the pump, the pressure is removed from the seals and the leakage is stopped.

The step-by-step process of balancing in the Balancing Initiative

When you contact our collection, the following process goes through:

Initial inspection: Our experts check the condition of the device, the type of foundation and the amount of slack.
Vibration measurement: Using precise sensors, the amplitude and phase of vibrations are measured at different points.
Data analysis: Specialized software determines whether the problem is really imbalance or not (because sometimes the problem can be from alignment or mechanical looseness).

Technical points in the maintenance of rotating parts

In order to reduce the need for frequent balances and increase the life of the devices, it is necessary to observe the following points:

Planning for periodic cleaning of blades to prevent accumulation of mass.
Continuous visual inspection for cracks or corrosion.
Checking the condition of vibration dampers under the machine chassis.
Regular greasing of bearings.

conclusion

Imbalance is the number one enemy of rotating equipment. Ignoring small vibrations today will lead to catastrophic failures tomorrow. blade balance and rotating parts is a necessary investment for any industrial unit that seeks to maintain production and reduce costs. Relying on technical knowledge and advanced equipment, the Balance Karan Initiative collection is ready to guarantee the health of your machines. Remember that a balanced car is a happy car that will serve you for years. To receive advice and services, contact our experts today
