In civil engineering and wastewater collection systems, choosing the right pipe is one of the most critical decisions during the lifetime of a construction, urban or industrial project. For years, PVC and galvanized pipes have played a prominent role, but with the advancement of polymer material technology and the need for more durable and installable systems, the Carrogate pipe has emerged as a modern and efficient solution. These types of pipes, which are also known as corrugated or double-walled pipes, have become an ideal option for transporting sewage due to their unique mechanical, hydraulic and economical features. In this comprehensive article, we will take a close look at the reasons why Carrogate pipe is the best choice for sewer projects and what advantages it has over the competition.
The structure and technology of Carrogate pipes

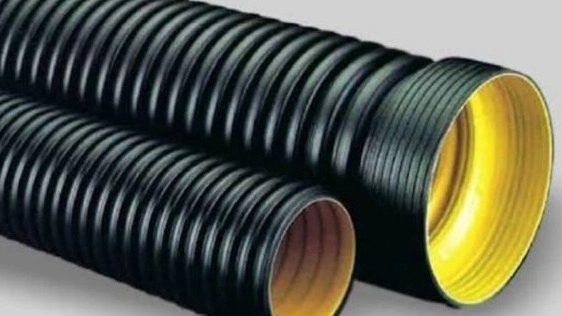

To understand the superiority of these pipes, we must first get acquainted with their structure. Carrogate pipes are usually produced as double-walled. The inner wall of the tube is smooth and polished, which facilitates fluid flow and prevents sedimentation. On the other hand, the outer wall has regular waves (carogate) that play a key role in the pipe's compressive strength. These waves act like reinforcement beams and by increasing the moment of inertia of the cross section, they increase the bending and compressive resistance of the pipe against soil and traffic loads.
Mechanical resistance and bearing heavy loads
One of the most important reasons that lead civil engineers and project supervisors to Carrogate pipe is its extraordinary resistance to external loads. Sewer pipes are often installed underground and at different depths and must be able to withstand the weight of the soil on them, groundwater and even heavy road traffic.
Corrugated design for increased hardness
Cargoite construction allows the pipe to have greater compressive strength than plain wall pipe (such as plain PVC pipe) with less thickness. This feature means that larger diameter pipes can be used but with less weight and less cost. In urban projects where pipes with a large diameter (for example, 600 mm and above) are needed, Carrogate pipe is a much more economical option than concrete or cement pipes.
Flexibility and adaptability to land settlement
Lands settle over time. Hard pipes such as concrete or cast iron are fragile against these settlements and may crack or break. But due to the inherent flexibility of the polymer, the Carrogate pipe can withstand slight deformations of the ground without being damaged. This feature is considered a vital advantage in areas with loose soils or earthquakes.
Hydraulic advantages and better sewage flow
Hydraulic performance of the pipe is very important in conveying sewage. If the sewage flow is slow, solids will settle and clog the pipe. Here, too, the double structure of the Carrogate tube ends up in favor of engineers.
Smooth internal surface and reduce friction
Although the outer wall of the pipe is corrugated, the inner wall is completely smooth and uniform. This smoothness reduces the roughness coefficient (Manning's coefficient) and minimizes the friction between the surface of the pipe and the sewage. The result of this is to increase the speed of the sewage flow and prevent the accumulation of sediments and mud on the bottom of the pipe.
High transmission capacity
Due to the smooth internal surface and high effective diameter, Carrogate pipes have the capacity to transport a larger volume of wastewater than pipes of the same diameter with smooth walls. This issue is especially important in urban wastewater collection systems that face a high volume of wastewater.
High durability and chemical resistance against wastewater
Urban and industrial wastewater contains various chemicals, weak acids, bases, and organic compounds that can be destructive to metal or concrete pipes. Carogate pipe is made of resistant polymer materials that are neutral against these chemicals.
No corrosion and rust
Unlike steel or galvanized pipes that corrode and rust in contact with moisture and sewage chemicals, Carrogate pipes never rust. This feature gives them a very long useful life, which is usually estimated to be more than 50 to 100 years.
Resistance to microbial attack
In sewage systems, anaerobic bacteria can produce hydrogen sulfide gas that turns into sulfuric acid in the vicinity of moisture and destroys the wall of concrete or metal pipes (microbial corrosion phenomenon). The polymer materials used in Carogate pipes are resistant to these acids and do not undergo degradation. This greatly reduces maintenance costs.
Ease of installation and reduction of operational costs
The installation cost is one of the major parts of the plumbing project budget. Due to its physical properties, Carrogate pipe makes the installation process simpler, faster and cheaper.
Light weight and easy to transport
The weight of Carrogate pipes is much lighter than concrete, cast iron or even steel pipes of the same diameter. This light weight makes their transportation easier and reduces the need for heavy and expensive machinery for moving and installation.
Easy and leak-free connections
Carrogate pipe connection system usually includes rubber or heat welding connections, which are very simple and quick to install. These joints create a complete seal and prevent the leakage of sewage into the environment or the penetration of underground water into the pipe. Leakage in sewer pipes not only causes waste of water resources and soil pollution, but also can lead to soil settlement around the pipe and damage to upstream structures.
No need for a complex tubing bed
Economic efficiency and technical justification
When we consider all aspects, Carrogate pipe is also a clear winner from an economic point of view. Although the unit price of each meter of pipe may be similar or even slightly higher than some simple plastic pipes at first glance, but considering the side costs, its economic efficiency is quite evident.
Reducing installation and transportation costs
As mentioned, light weight and easy installation greatly reduce the cost of manpower and machinery.
Maintenance cost close to zero
Due to high durability and no need for frequent repairs, construction costs after installation are almost zero. Concrete or metal pipes may need to be replaced or repaired after a few years, but Carrogate pipe can work for decades without intervention.
Long life
High longevity means better return on investment in the long run. The initial investment for Carrogate pipe is very cost-effective compared to its 50-100-year lifespan.
Various applications of Carrogate pipe in sewage system
- Urban wastewater collection networks: To transfer wastewater from buildings to treatment plants.
- Drainage and surface water pipes: To direct rainwater and surface water from streets and agricultural lands.
- Passage pipes and underpasses: Due to high resistance to traffic, suitable for passing under roads and highways
- Industrial wastewater systems: For industries that produce wastewater with specific chemical compounds.
- Large construction projects: Such as airports, ports and industrial cities that require extensive and durable piping networks.
Comparison with other popular options
To better understand the superiority of Carrogate pipe, it is useful to compare it with two other common options, concrete pipe and smooth wall PVC pipe:
- Compared to concrete pipe: Carrogate pipe is lighter, more resistant to chemical and microbial corrosion, and easier to install. Concrete pipe is heavy, has little resistance to weak acids and has a high installation cost.
- Compared to smooth wall PVC pipe: Carogate pipe has much higher compressive and bending resistance. PVC pipes for great depths or under heavy traffic loads require a very large thickness, which increases the cost, while the thinner-walled Carrogate pipe offers higher strength.
conclusion
According to all the reviewed items, it can be said with certainty that Carrogate pipe is the best choice for sewage systems in modern projects. The unique combination of high mechanical resistance, chemical durability, excellent hydraulic performance and economical installation and maintenance has made this product a gold standard in the plumbing industry.
Choosing Carogate pipe is not only a smart technical decision to ensure the proper functioning of the sewage system, but also a long-term investment to reduce construction costs and preserve the environment. Knowing these benefits, engineers and contractors can use this product with more confidence in their projects and deliver more durable, safer and more cost-effective projects. Finally, the quality of sewage infrastructure has a direct impact on public health and environmental sustainability, and Carrogate pipe is a big step in this direction by providing the best quality.
