Aluminum industry is known as one of the main pillars of infrastructure industries in Iran. In the meantime, Tehran, as the country's industrial hub, hosts leading units in the field of design, engineering and production of aluminum parts. Extrusion mold making and Aluminum profile production are processes whose accuracy guarantees the final quality of the product and the efficiency of the structure.

The strategic importance of extrusion mold design and manufacturing

The extrusion mold is the beating heart of the aluminum profiles production line. Without a precise mold, it is virtually impossible to achieve standard dimensional tolerances and desired surface quality. The process of making an extrusion mold in Tehran requires knowledge of metallurgy, mechanical engineering and the use of advanced design software.

Technical steps in making an extrusion mold

Making an extrusion mold includes several critical steps:

1. Engineering design: Use of material flow analysis software to predict the behavior of aluminum when passing through the openings.
2. Selection of steel alloy: To make the mold, hot work steels with high movement and wear resistance should be used.
3. Precise machining: Use of CNC and wire cut machines to achieve precision Micron.
4. Heat treatment: to increase the life of the mold in the high pressures of the extrusion press.

With the help of experienced engineering teams, Novin Kavash company controls all the above steps with strict supervision so that the production molds have the highest efficiency.

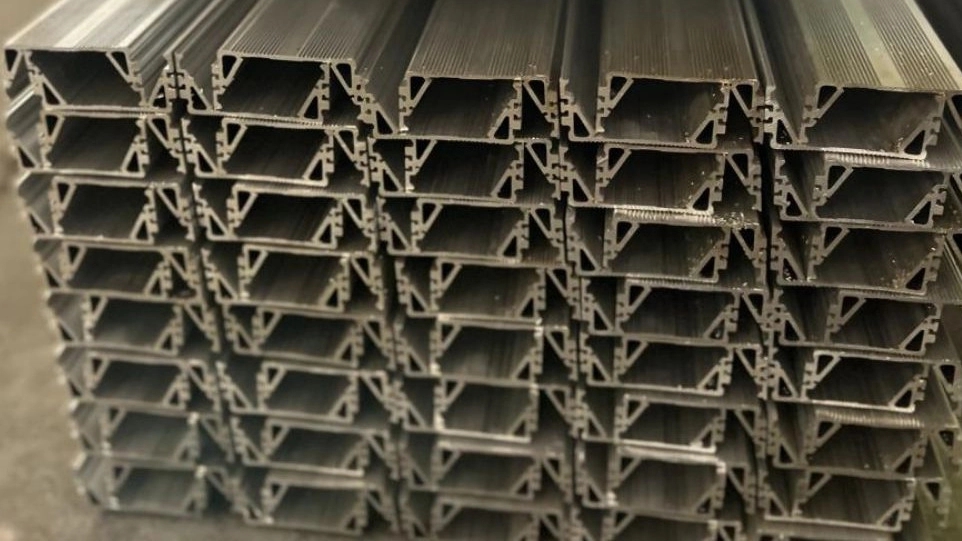

aluminum profile production process; From ingot to final piece

After preparing the mold, the stage of production of aluminum profile begins. Extrusion is actually the process of changing the plastic form of aluminum billets, which is done by passing them through the mold under high pressure.

Stages of aluminum profile production cycle

• Billet preheating: Aluminum billets must be made into paste at a certain temperature (usually between 400 and 500°C).
• Press pressure: The cylinder of the extrusion press pushes the billet into the mold with high pressure.
• Cooling and drawing: The profile taken out of the press must be compressed by air systems or The blue is cooled and then subjected to stretching to release its internal stresses.
• Cutting and finishing operations: Profiles are cut into standard lengths and prepared for subsequent operations such as anodizing or painting.

Why is Tehran the main center of Iran's extrusion industry?

The concentration of downstream industries in Tehran and proximity to consumer markets has made the necessary infrastructure for the aluminum industry to be formed in the best way in this region. By establishing itself in this industrial hub, Novin Kavash has been able to manage its supply chain in such a way that all orders are processed in the shortest possible time and with strict adherence to technical standards.

The role of Navin Kavash company in production optimization

Success in the competitive profile production market requires innovation. Novin Kavush Company has combined traditional processes with modern engineering methods with a deep understanding of engineering needs in construction, industrial and automotive projects.

Advantages of cooperation with leading collections

• Precision in mold design: Reducing raw material waste and increasing the surface quality of the production profile.
• Technical advice: Choosing the right alloy (such as the 6000 series) based on the end use of the profile.
• Ensuring continuity of production: Ability to maintain the efficiency of the production line in high circulations.

Standards and quality control in the production of aluminum profiles

Producing aluminum profiles without strict quality control (QC) systems carries high risks. Among the main challenges, we can mention profile warping, the presence of extrusion lines on the surface, or not respecting the thickness of the walls. With the benefit of quality control laboratories, Novin Kavash evaluates all the dimensional and metallurgical parameters of the produced profiles in accordance with national and international standards.

Choosing the right alloy; The key to success in extrusion

One of the specialized topics in the production of aluminum profiles is the correct choice of alloy. 6000 series alloys (especially 6063 and 6061) are most widely used in the door and window industry and industrial structures. These alloys have excellent ductility and high corrosion resistance. Knowing the metallurgical behavior of these alloys, experts at Novin Kavesh Company suggest the best combination for making extrusion molds.

The future of extrusion industry in Iran

With the increasing demand for light and environmentally friendly building materials, the aluminum profile production industry in Iran is moving towards smartness and the use of more complex forms. The use of new technologies in making extrusion molds allows manufacturers to produce profiles with very complex and delicate hollow sections, which were not possible to produce in the country until a few years ago.

conclusion

Making extrusion molds and producing aluminum profiles are two sides of the same coin that determine the final quality of the aluminum industry. Choosing an expert colleague in this field can directly affect the reduction of operational costs and increase the quality of the final product. Relying on the technical knowledge of its specialists and using modern equipment, Novin Kavash Company is ready to provide specialized services to dear artisans in Tehran and all over the country. In order to achieve a product with global standards, the first and most important step is to be careful in choosing the production path and business partners.
