In the world of industry, steam is known as one of the main energy carriers. Choosing the right steam production equipment not only has a direct impact on production efficiency, but also determines running costs and workplace safety. 500 kg industrial steam boiler is one of the most demanded products in small and medium industries due to its medium capacity and high efficiency. In this article, we will carefully review the technical criteria, quality standards and key points in purchasing this product and examine the role of Sablan Bohar Poya Company as a leader in the production of this equipment.
The strategic role of the 500 kg industrial boiler in the production line

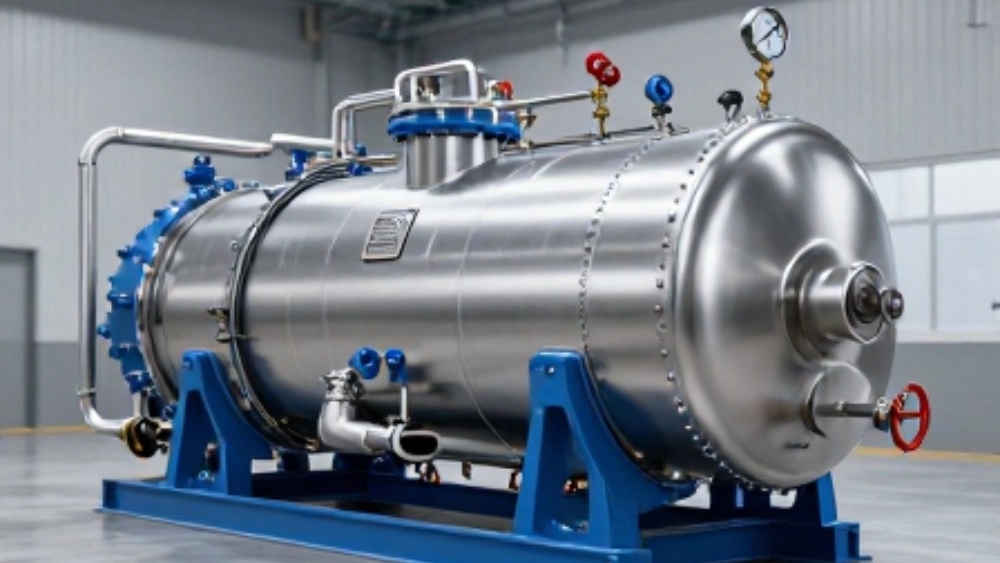

The 500 kg industrial boiler, which is also known as a half-ton boiler in technical terms, has created a balance between occupying space and output power. This capacity is ideal for units that require continuous but not power plant sized steam volumes. Industries such as large laundries, food production workshops, medical equipment sterilization units and small chemical factories benefit the most from this product.
Using a quality industrial 500 kg boiler means access to dry steam with regulated pressure. If the system is not carefully designed, the output steam will contain water particles (wet steam), which can severely reduce the quality of the final product. Sablan dynamic steam company, understanding this sensitivity, has designed its systems in such a way as to provide the highest quality steam in the shortest possible time.
Technical analysis of the structure and material of the 500 kg industrial boiler
One of the most important factors in buying a 500 kg industrial boiler is paying attention to the alloy and the thickness of the sheets used in the body and furnace. According to international and national standards, refractory sheets such as DIN 17175-17Mn4 or equivalent sheets should be used for the construction of this equipment. These sheets have a high resistance to thermal stresses and corrosion caused by contact with hot water.
In the products of Sablan Bohar Poya Company, in addition to using standard sheets, the welding process is carried out with the utmost precision and under the supervision of quality control inspectors. Fire tubes should also be seamless so that they do not leak or explode against high pressures. Choosing a 500 kg industrial steam boiler, which is made of first-class materials, guarantees the long life of the device and reduces maintenance costs in the long term.
The importance of three-pass design in thermal efficiency
When reviewing the guide for buying a 500 kg industrial boiler, you will definitely come across the term "Three-Pass". This design means that the flame and combustion gases pass through the horizontal path of the boiler three times to maximize heat exchange with water. This process makes the temperature of the smoke coming out of the exhaust to be minimized and the energy is used instead of wasted to produce steam.
500 kg industrial steam boiler produced in Sablan Poya Steam Company is produced using Wet-Back design. In this model, the end of the furnace is surrounded by water, which, in addition to increasing the heat level, prevents burning and cracking of the back grid of the boiler. This advanced technology increases the efficiency of the device to over 85%, which brings significant savings in fuel consumption compared to old models.
Peripheral equipment and control systems
Purchasing a 500 kg industrial boiler is not only limited to its metal body; Rather, it is the quality of accessories and control equipment (Instrumentation) that guarantees its safety and automatic operation. A complete package of 500 kg industrial boiler should include the following items:
- Burner: The beating heart of the boiler, which is responsible for fuel combustion (gas, diesel or dual fuel).
- Feeding pump: To inject water into the pressurized tank.
- Water level controllers: To prevent dry operation of the boiler, which can lead to disaster.
- Pressure Switches: for accurate regulation and control of output steam pressure.
- Safety and discharge valves: for emergency release of excess pressure and discharge of deposited sediments.
Sablan Pooya Steam Company uses reputable international and domestic brands for these parts in all its products so that the operator can monitor the device with peace of mind.
Required standards and certifications in purchasing
Safety is the first word in the 500 kg industrial boiler. Because of the high pressure inside the tank, the device has the potential to become a ticking time bomb unless it is built to strict standards. Iran's national standard mark and third-party inspection certificate from reputable companies under the supervision of the standards organization are indispensable requirements when purchasing.
The products of Sablan Bohar Poya Company are produced under the strict supervision of resident inspectors and in full compliance with ISIRI 4231 standards. This standard covers all stages from drawing, cutting, welding to hydrostatic and non-destructive tests (NDT). Buying a 500 kg industrial boiler from a group that has a moral and technical commitment to safety is the biggest investment for the safety of personnel and the factory.
Examining dimensions and placement space in the engine room
One of the key points that you should pay attention to in the guide for buying a 500 kg industrial boiler is the physical dimensions of the device and the space required for repairs. The boiler needs proper air circulation for optimal performance. Also, there should be enough space in the front and back of the device to open the doors and possibly replace the pipes in the coming years.
The engineering team of Sablan Bohar Poya Company provides the necessary advice regarding engine room design and equipment layout before finalizing the order. The 500 kg industrial steam boiler of this company is designed in such a way that it occupies the least possible space while having high power, and the access to valves and control systems is very ergonomic.
Optimizing energy consumption and environmental considerations
In today's era, reducing fuel consumption is not only a social responsibility, but also an economic necessity. If the 500 kg industrial boiler is not properly insulated, it loses a large part of its thermal energy through the body to the surrounding environment. The use of high-density stone wool and shiny steel or galvanized covers is a solution used in Sablan Bohar Poya Company products to minimize heating losses.
In addition to insulation, precise adjustment of the burner and the use of economizers in the chimney path can increase the efficiency of the 500 kg industrial boiler. By providing new solutions, this company helps industries to reduce gas and electricity costs, control the amount of output pollution and approach environmental standards.
The importance of water hardness during the life of the boiler
The water entering the 500 kg industrial boiler should never be raw city or well water. The presence of calcium and magnesium salts causes deposits on pipes and thermal surfaces. Sediment acts like an insulator and prevents the transfer of heat to water, which results in overheating of the metal and eventually deformation of the furnace or pipes.
Sablan Poya Steam Company always recommends that along with the purchase of a 500 kg industrial boiler, a resin hardening system and a deaerator are also provided. By removing the hardness of water and corrosive gases such as oxygen, these equipments increase the life of your device several times and prevent pipes from getting punctured due to chemical corrosion.
Why are the products of Sablan Bohar Poya a distinct choice?
Experience and expertise in manufacturing heating equipment are not factors that can be easily ignored. With years of brilliant history in designing and manufacturing all kinds of industrial boilers, Sablan Bohar Poya Company has been able to gain a good name among domestic and regional industries. The focus on research and development (R&D) has made this company's 500 kg industrial boiler to be produced in line with the world's standards.
The use of advanced welding technologies, accurate penetration and pressure tests, and the selection of accessories from the world's top manufacturers are just some of the features of this company's products. The goal of Sablan Bohar Poya Company is not only to sell a device, but to provide a comprehensive solution to provide stable and safe energy in the heart of the country's industries.
Installation, commissioning and operator training
Many boiler problems are caused by improper installation and operator's lack of familiarity with how the device works. The process of installing a 500 kg industrial boiler should be done by expert and experienced teams so that all connections, gas lines and electrical systems are configured correctly.
Comparative analysis of 500 kg boiler with similar capacities
When buying, you may hesitate between choosing a 500 kg industrial boiler and higher or lower capacities. The capacity of 500 kg/h is a golden point for industries that have fluctuating steam consumption. This capacity is large enough to cover the sudden pressures of the production line and is small enough to not have unreasonable fuel consumption during low load times.
In the designs of Sablan Bohar Poya Company, high flexibility is considered for pressure changes. This means that your 500 kg industrial boiler can work in different pressure ranges (for example, from 6 to 10 bar) with stable efficiency. This feature is considered a great competitive advantage in industries that have diverse processes.
Foresight in the maintenance and supply of parts
Purchasing a capital item such as a 500 kg industrial boiler is the beginning of a long-term relationship between the buyer and the manufacturer. Access to spare parts in the coming years and the possibility of upgrading control systems are among the things that should be taken into account when signing a contract.
Sablan Bohar Poya Company by localizing many manufacturing technologies and maintaining a stock of standard spare parts, assures customers that their production line will not face long stops in case of any problem or need for parts. Continuous technical support and quick supply of parts is one of the main pillars of customer satisfaction in this collection.
Conclusion in the final selection of the steam boiler
Choosing and buying a 500 kg industrial boiler requires technical knowledge, a detailed examination of the needs of the production line, and trust in a reliable manufacturer. Paying attention to the materials used, the design of three wetback passes, the safety standards and the quality of peripheral equipment, are the four main pillars in a successful purchase.
The use of modern technologies along with strict compliance with legal requirements has made the 500 kg industrial boiler of this collection an unrivaled choice. Relying on domestic capabilities and looking at global markets, Sablan Bohar Poya Company is ready to equip the beating heart of your engine houses with distinctive quality and perfect performance. Finally, a smart purchase is a combination of checking the technical specifications and choosing a business partner who will stay by your side in all stages of operation.
