What is Carogate pipe and why is it used in urban sewage?

Types of Carrogate pipes in terms of structure

1. Single Wall Carrogate pipe:
   • These pipes have a single wall with external grooves.
   • Application: They are mostly used for soil drainage, light sewage and short-term pipelines.
   • Advantages: Lower price and high flexibility.
   • Disadvantages: Compressive resistance Less than double-walled models.

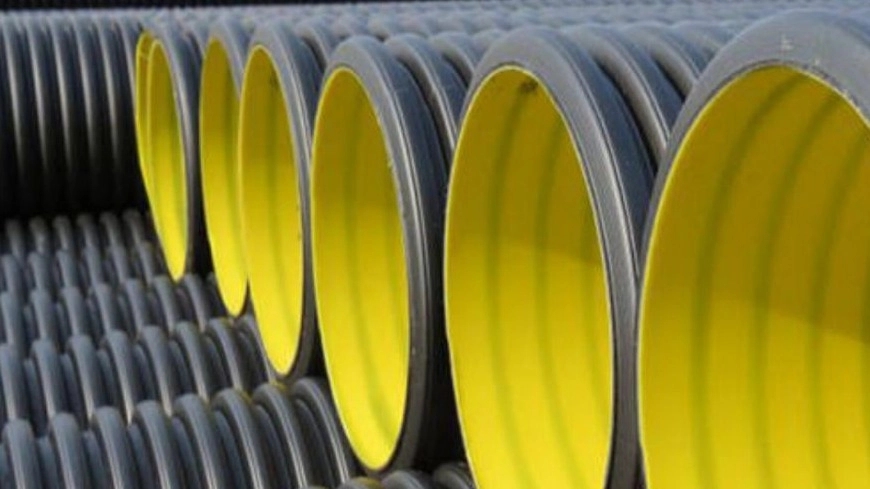

2. Double Wall Corrugated Pipe:
   • These pipes have an inner smooth pipe (for smooth sewage flow) and an outer corrugated pipe (for mechanical strength) that are bonded together.
   • Application: Ideal for municipal sewage systems, highways and construction projects. Heavy.
   • Advantages: Very high compressive strength, smooth internal surface (reducing friction and sedimentation) and long durability.
   • Recommendation: For urban sewage system, double-walled Carrogate pipe is considered the best Carrogate pipe due to the combination of resistance and optimal flow.

Criteria for choosing the best Carrogate pipe for urban sewage

1. Material type (HDPE and PP)

• High Density Polyethylene (HDPE): is the most common material for Carrogate pipes. This material has excellent chemical and mechanical resistance and is resistant to chemicals in wastewater. Polypropylene (PP): Used in some high-quality double-walled pipes, it has better thermal and chemical resistance than HDPE, but also has a higher price.

2. Resistance Class (SN)

3. Pipe diameter

4. Standardization and certificates

The advantages of using Carogate pipe in urban projects

1. Light weight and easy installation: The low weight of polymer pipes reduces the need for heavy crane equipment and increases the speed of installation.
2. Corrosion resistance: Sewage contains acidic and chemical substances that destroy metal and concrete pipes, but Carrogate pipes are completely resistant.
3. Flexibility: These pipes in They are resistant to minor soil settlements and bend without breaking.
4. Long useful life: According to the standards, the useful life of these pipes is estimated to be more than 50 years.
5. Lower total cost: Although the initial price may be the same as other pipes, the faster installation cost and no need for frequent repairs will reduce the overall cost of the project.

Common challenges in installing and using Carrogate pipe

• Improper bedding: Subgrade soil should be completely compacted and smooth to avoid point pressures.
• Inadequate cover: The pipe should be covered with adequate soil cover (usually at least 50 cm to 1 m depending on traffic) to protect it from mechanical damage.
• Non-standard connections: Use of quality connections and correct methods. Sealing (such as isogam tape or rubber rings) is vital to prevent dirt and water from entering the pipe.

Zamzam Pipe Khodadadi Trading; A leader in the supply of high-quality carrogate pipes

Why choose Zamzam Pipe Khodadadi Trading?

1. Guarantee the authenticity and quality of raw materials:
   The products in Zamzam Pipe Khodadadi Trading are all produced from first-class raw materials (HDPE or PP). By providing laboratory certificates and national standards, we ensure that the sold pipes have the necessary compressive and mechanical resistance for urban projects. Full variety of size and resistance class: This collection offers a wide range of single-walled and double-walled Carrogate pipes with different diameters (from 200 to 2000 mm) and resistance classes SN8 to SN16. Whether your project is a small drainage channel or a major highway, Zamzam Pipe Khodadadi has the right product for you.
2. Free technical consultation:
   The engineering team of Zamzam Pipe Khodadadi is composed of polymer and civil engineering specialists. Before buying, they suggest you the best size and resistance class of the pipe, taking into account the soil conditions, installation depth and passing traffic. This advice can prevent wrong purchases and wasted budget.
3. Competitive and transparent pricing:
   We at Zamzam Pipe Khodadadi Trading are committed to offering products at fair prices without unnecessary intermediaries. By eliminating middlemen and purchasing volume from reputable factories, we guarantee the best market price for our customers.
4. Fast and reliable delivery to the whole country:
   Our strong logistics system has made it possible to send orders to all parts of Iran immediately. The delay in pipe delivery can cause the stoppage of construction projects, so Zamzam Pipe Khodadadi Trading is committed to timely delivery of goods at the appointed time.

Key points in the installation of Carrogate pipes by contractors

• Preparation of the bed: The bed of the channel must be smooth, without sharp stones and with suitable graining (fine sand).
• Correct installation in the direction of flow: It is very important to pay attention to the arrows on the pipe that show the direction of the sewage flow.
• Standard connections: Using knee joints, conversions and tees of the same type as the main pipe and using adhesives or Special tapes for complete sealing.
• Primary and final coating: The primary coating should be done with soft soil without gravel, and after that, the original soil should be compacted layer by layer with proper density.

Conclusion: Smart choice with Zamzam Pipe Khodadadi business
