In various industries, ventilation and air movement systems play an important role in maintaining the quality of the environment, controlling temperature, discharging pollutants and improving the performance of industrial equipment. One of the key components of these systems is a centrifugal fan that moves air or gas using centrifugal force. In the structure of these fans, the propeller is known as the main part of creating air flow, and its design has a direct effect on the overall performance of the device. For this reason, choosing a producer of centrifugal fan backward propeller in different dimensions is very important for industries and groups active in the field of ventilation.

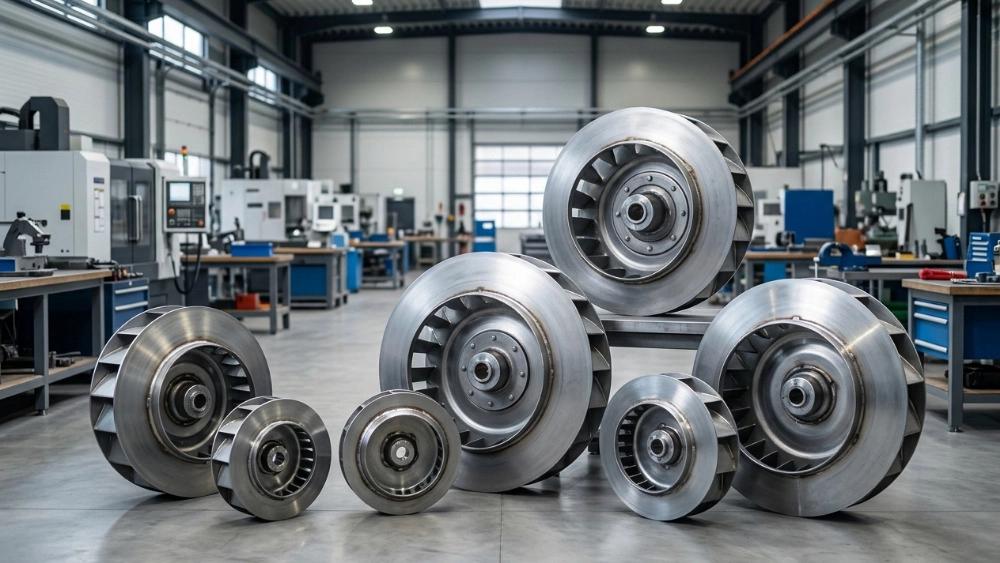

Backward propeller is one of the most widely used types of centrifugal fan propellers, in which the blades are bent backwards relative to the direction of rotation. In many industrial and commercial applications, this design provides the possibility of achieving proper performance, optimal efficiency and better control of working conditions. Of course, the final result depends on the exact design of the propeller, installation conditions, rotation speed, engine specifications and ventilation system features.
Faraz Shiraz Ventilation Fan is a name that is considered in this article as the focus of introducing services related to the design and production of industrial ventilation equipment. Choosing a centrifugal fan impeller manufacturer in different dimensions becomes more important when the project requires specific dimensions, specific technical specifications or precise coordination between the impeller and the fan body.
In the following, we will get to know the structure of the backward propeller, its applications, the importance of production in various dimensions, the selection criteria of the manufacturer, and important points for buying and using this part.
What is the backward impeller of a centrifugal fan?
Backward propeller is one of the types of propellers used in centrifugal fans. In this type of design, the vanes are placed in such a way that their ends are in the opposite direction of the radial extension and in the direction of rotation. This geometry makes the air flow behavior different from other types of propellers.
Centrifugal fan receives air from the inlet section and gives it energy by rotating the impeller. Then the air moves to the outer environment of the propeller and is directed to the desired channel or space through the spiral chamber or the exit path. The proper functioning of this complex depends on the coordination between the propeller, housing, engine and channeling network.
One of the reasons for the industries to pay attention to the backward propeller is the ability to achieve suitable efficiency in many working conditions. In common designs, the power consumption of this type of fan in a certain working range can have a favorable behavior; However, the final choice should be made based on the actual performance curve of the fan and project conditions.
For this reason, it is very important to refer to the manufacturer of the backward centrifugal fan impeller in different dimensions for projects that require predictable performance and appropriate technical specifications.
Why is it important to choose the manufacturer of the backward impeller of the centrifugal fan in different dimensions?
Centrifugal fan impeller is not a part that can be selected based on appearance or diameter alone. The geometric dimensions, the number of blades, the angle of their placement, the width of the blade, the material and the rotation speed, all affect the final performance.
A centrifugal fan backward impeller manufacturer in different dimensions should be able to consider the different needs of projects and carry out the selection or manufacturing process based on technical specifications. This issue is more important for industries that use custom fans or dedicated equipment.
Production according to the required dimensions
Centrifugal fans are produced in different sizes. Some are designed for small ventilation devices and others are used in large industrial systems. For this reason, the dimensions of the propeller must be in harmony with the required capacity, installation space and fan structure.
Production of the backward propeller in different dimensions helps the designers and project managers to choose a part that fits the physical limitations and performance conditions of the system. Outer diameter, hub diameter, propeller width and connection dimensions are among the specifications that must be determined before construction.
The importance of coordination with the engine and fan housing
The propeller must be compatible with the engine rotation speed and the structure of the fan housing. Choosing a propeller with inappropriate dimensions may increase energy consumption, decrease air flow, cause vibration or add extra load to the engine.
Therefore, the choice of the manufacturer of the backward impeller of the centrifugal fan in different dimensions should be accompanied by checking the specifications of the complete set of fans. Paying attention to this coordination helps to increase reliability and prevent installation and operation problems.
Responding to customized needs
In some projects, it is not possible to use standard dimensions. The limitation of the installation space, the difference in the required capacity or the use of special devices can make it necessary to make a custom blade.
In such a situation, it is important to check the technical ability of the manufacturer to receive specifications, prepare drawings and produce parts according to the needs of the project. In this context, Faraz Shiraz Ventilation Fan can be considered as a name for examining services related to industrial ventilation equipment; Of course, the actual specifications and capabilities of each order must be confirmed before making a decision.
Getting to know the features of the butterfly
Backward propeller is different from other types of propellers in terms of the shape of the blades and the way of transferring energy to the air flow. Knowing its features helps to choose equipment based on the real needs of the system.
Design of backward blades
In backward propellers, the blades are bent backwards relative to the direction of rotation. In many designs, this structure provides the possibility of achieving proper efficiency and optimal power behavior.
However, the performance of the propeller is not only dependent on the backwardness of the blades. Blade angle, their number, inlet and outlet shape, surface quality and flow conditions are also important. Therefore, the manufacturer of the backward impeller of the centrifugal fan in different dimensions must coordinate the geometrical specifications with the functional purpose of the project.
Energy efficiency and fan performance
Energy consumption is one of the important issues in the design of industrial ventilation systems. Fans that are selected and adjusted according to actual work conditions can meet the need for air flow with more appropriate energy consumption.
In many applications, the backward propeller is considered a suitable option due to its aerodynamic characteristics. However, the actual efficiency depends on the operating point of the fan, system pressure drop, rotation speed, housing design and installation conditions.
To achieve optimal performance, it is better to choose the propeller based on air flow rate, static or total pressure required and technical information of the fan.
Reducing problems caused by incorrect selection
Choosing the wrong impeller can cause noise, vibration, performance loss and increase mechanical load. Even if the impeller diameter matches the installation space, differences in blade geometry or connection specifications may affect the performance of the device.
For this reason, cooperation with the manufacturer of centrifugal fan backward impeller in different dimensions should be based on technical information and project needs review. This approach reduces the possibility of error in the selection of parts and makes the installation process easier.
Applications of centrifugal fan backward propeller in different industries
Backward impellers are used in a variety of ventilation, air transfer and industrial process applications. The type of impeller and its dimensions should be selected based on working conditions, type of fluid, ambient temperature, and functional requirements.
Air conditioning systems
In office buildings, commercial buildings, medical centers and large complexes, centrifugal fans are used to move air in air conditioning systems. This equipment must be able to provide the required air flow against the resistance of channels, filters and other system components.
In these applications, choosing the right backward propeller can help the set perform better. The manufacturer of the backward impeller of the centrifugal fan in different dimensions must coordinate the specifications of the part with the ventilation capacity, required pressure and installation limitations.
Factories and industrial workshops
In industrial environments, centrifugal fans may be used to ventilate halls, transport air in production lines, cool equipment or exhaust polluted air. The conditions of these environments are usually different according to temperature, amount of dust and type of pollutants.
For this reason, the impeller material, mechanical resistance and maintenance conditions should be selected according to the environment. In some applications, the use of corrosion-resistant materials or special design for specific temperature conditions is necessary.
Food and pharmaceutical industries
In the food and pharmaceutical industries, controlling the environmental conditions and maintaining the air flow quality is very important. The fans used in these environments should be selected in accordance with hygiene requirements, cleaning conditions and process specifications.
In such projects, it is important to pay attention to the material of the parts, quality of construction, cleaning ability and compatibility with the environment. Choosing the right propeller is part of the design of the whole ventilation system and should be considered along with other technical requirements.
Air exhaust and pollutant control systems
In some factories and workshops, centrifugal fans are used to move air from filter paths, dust collection equipment, or pollutant discharge systems.
In this situation, network pressure drop and fluid characteristics play an important role in choosing a fan. The manufacturer of the backward impeller of the centrifugal fan in different dimensions should provide the context for choosing the part suitable for the system, taking into account the required performance conditions.
Dedicated equipment and industrial machinery
Some machines require fans to be installed in a limited space or have special performance specifications. In these cases, using custom licenses can be a good solution.
To design and manufacture such parts, it is very important to have a map, detailed dimensional information and technical specifications of the fan. Reviewing this information before production helps reduce manufacturing errors and assembly problems.
The importance of butterfly production in different dimensions
Propeller diameter and its effect on performance
The impeller diameter is one of the important parameters in the design of a centrifugal fan. Changing the diameter can affect the flow rate, pressure, ambient speed and required power. Of course, these changes are dependent on the conditions of geometric similarity, rotation speed and overall design of the fan.
Therefore, choosing a larger or smaller diameter without checking the technical calculations is not a reliable solution to change the fan performance. The manufacturer of the backward impeller of the centrifugal fan in different dimensions should pay attention to the relationship between the dimensions of the impeller and the needs of the system.
The width of the propeller and the shape of the blades
The width of the propeller and the geometry of the blades affect the way air passes through the blades. Improper design may cause a drop in efficiency, increase losses or create unfavorable flow conditions.
For this reason, when ordering a propeller, in addition to the diameter, information about the width, the number of blades, their shape and the type of connection should also be specified. These details are especially important in making custom blades.
The dimensions of the joint and the hub
The connection point of the propeller to the motor shaft or the power transmission assembly must be carefully designed. The diameter of the central hole, the type of hub, the location of the spur, the thickness of the piece and other connection details play a role in correct installation and safe transmission of torque.
Non-compliance with these specifications can cause assembly problems, misalignment or increased vibration. Therefore, checking the plan and specifications before ordering is one of the necessary measures in the production process.
Selection criteria for the manufacturer of centrifugal fan backward impeller in different dimensions
Choosing the right manufacturer is one of the important steps in providing the necessary parts for ventilation systems. In this selection, a set of technical and executive factors should be checked so that the produced piece is in harmony with the project's needs.
Quality of raw materials
The type of propeller must be compatible with the working conditions of the device. Steel, other metal sheets and in some designs special materials may be used according to the type of application.
Choosing the right material depends on factors such as working temperature, humidity, corrosion possibility, permissible weight and mechanical loads. The quality of the raw materials and its compatibility with the application are important issues in the review of the manufacturer of the backward impeller of the centrifugal fan in different dimensions.
Accuracy in construction and assembly
Dimensional accuracy is very important in making propellers. Differences in sizes, geometric deviations or poor quality of parts connection can affect the performance of the fan.
Dimensional control, checking the quality of welding in welded parts and ensuring the alignment of components are important stages of the production process. In propellers that rotate at high speed, quality control must be done with special sensitivity.
Dynamic balance and vibration reduction
Fan impeller must have proper mass distribution when rotating. Unbalance can cause vibration, increase the load on the bearings, create noise and reduce the useful life of the equipment.
The balance according to the working speed and fan specifications is one of the important stages of preparing the propeller for operation. When evaluating a manufacturer, it is important to pay attention to balance control methods and technical requirements related to rotation speed.
Ability to produce custom dimensions
In projects that use special equipment, standard dimensions may not be appropriate. In such a situation, the manufacturer must be able to receive the required specifications and check the technical feasibility of production.
Faraz Shiraz ventilation fan; A name to review specialized industrial ventilation services
In the ventilation equipment market, it is very important to choose a set that can understand the technical needs of the project. Faraz Shiraz ventilation fan is introduced as the central name of this article, in connection with the issue of the manufacturer of the backward impeller of the centrifugal fan in different dimensions.
In choosing a supplier, it is better to make a decision based on the actual specifications of the products and the verifiable capabilities of the collection. Industrial customers are usually looking for parts that are compatible with existing equipment and can meet the specified working conditions.
Attention to the real needs of customers
Each project has its own characteristics. Sometimes the goal is to replace a worn propeller and sometimes the design of a new fan with different performance specifications is considered. In both cases, knowing the real need of the project is the first step to choose the right part.
Faraz Shiraz ventilation fan can be one of the considered options in identifying services related to ventilation equipment. Before placing an order, it is better to check the required specifications, the possibility of making the desired dimensions and the technical details of the product.
The importance of obtaining accurate specifications before production
Providing drawings, sample parts, shaft specifications, impeller diameter and fan performance information can help determine manufacturing requirements. In the absence of a complete map, the available information should be checked by experts so that the necessary specifications for production can be determined correctly.
This process reduces the possibility of dimensional discrepancy and helps to better coordinate the part with the fan assembly. In custom orders, recording and verifying the specifications before starting production is especially important.
Focus on quality and reliability
In industrial equipment, the quality of construction is not limited to the appearance of the part. Dimensional accuracy, quality of connections, mass balance, selection of raw materials and compliance with technical specifications are among the determining factors.
When evaluating Faraz Shiraz ventilation fan or any other set, paying attention to quality control methods and technical documents related to the product can help to make a more informed decision. This approach is especially necessary in projects where the continuous operation of equipment is important.
Procedures for ordering centrifugal fan backward impeller in different dimensions
Ordering an industrial license will have a more favorable result when the necessary information is regularly prepared from the beginning. This work helps to reduce ambiguity in the process of design, construction and installation.
First step: determining the type of application
At first, it should be determined what type of fan and what working conditions the license is required for. General ventilation, air transport in pressure drop paths, industrial air exhaust and equipment cooling may have different requirements.
Second stage: preparation of technical specifications
Information such as external diameter, impeller width, hub diameter, number of blades, rotation speed, air flow and required pressure should be collected if available. Also, the specifications of the part material and environmental conditions should be clear.
The third step: checking the possibility of construction
After collecting the information, it should be checked that the desired design is geometrically, mechanically and functionally feasible or needs modification. This step is very important in making custom butterflies.
Fourth step: quality control before installation
After production, the dimensions, quality of connections and balance condition of the propeller must be checked according to the technical requirements. Then the installation and commissioning should be done in compliance with the safety instructions and working conditions of the device.
Choosing a centrifugal fan backward impeller manufacturer in different sizes that has a specific process for checking needs and quality control can help better order management.
Proper maintenance of the centrifugal fan's backward impeller
Maintenance of the propeller plays an important role in maintaining the performance of the fan and increasing the reliability of the ventilation system. Even a carefully constructed propeller can suffer problems if it is used improperly or if periodic services are neglected.
Cleaning and preventing the accumulation of pollution
Inspection of corrosion and mechanical damage
Cracks, deformation, corrosion and damage to connections are among the things that should be checked in periodic inspections. If a serious defect is observed, the continuation of the work should be stopped until the expert evaluation and problem resolution.
Attention to vibration and unusual sounds
A sudden increase in vibration or a change in fan noise can be a sign of imbalance, mechanical damage, loose connections, or bearing problems. Checking these symptoms in time will help prevent the spread of damage.
Compliance with the permitted working speed
Each propeller must be used in the speed range that is determined for it in terms of design and construction. Increasing speed without engineering review can greatly increase centrifugal forces and mechanical stresses.
For this reason, when using the impeller produced by any manufacturer, including the groups that operate in the field of producing centrifugal fan impellers in different dimensions, it is necessary to comply with the technical specifications and operating instructions.
The role of engineering design in increasing the efficiency of the propeller
Engineering design is the main basis for proper operation of industrial propellers. A successful propeller must be able to provide the required air flow and, at the same time, have suitable conditions in terms of mechanical strength, balance and compatibility with the engine.
Checking the required flow rate and pressure
Air flow indicates how much air must be moved per unit of time. The required pressure also depends on the resistance of the flow path, channels, filters and other system components.
The selection of propeller should be done according to the required work point. If the fan specification is not in line with the actual resistance of the network, the air flow rate may be lower than expected or more energy may be consumed.
Analysis of mechanical conditions
The impeller is under the influence of centrifugal forces and mechanical loads during rotation. The thickness of the parts, the quality of the joints, the material and the working speed should be selected in such a way that sufficient strength is provided.
In sensitive applications, checking the stresses and evaluating the behavior of the part in working conditions can help to increase the reliability of the design.
Coordination between design and production process
Even a proper design cannot produce a good performance if it is implemented incorrectly. The method of cutting, shaping, assembly, welding and balancing must be in harmony with the geometric and mechanical requirements of the part.
Therefore, the manufacturer of centrifugal fan impeller in different dimensions should pay attention to the relationship between design, manufacturing process and quality control. This coordination is one of the foundations of producing reliable parts for industrial ventilation systems.
summary
Backward impeller is one of the important components of centrifugal fans, whose design and quality affect the performance of the ventilation system. The correct selection of this part depends on the consideration of factors such as diameter, width, blade shape, raw material material, rotation speed, installation conditions and functional needs of the project.
The manufacturer of centrifugal fan impeller in different dimensions should be able to properly check the required technical specifications and provide a part suitable for the desired application. Dimensional accuracy, manufacturing quality, proper balance and coordination with the engine and fan housing are among the most important product evaluation criteria.
Faraz Shiraz Air Conditioning Fan was introduced in this article as a name to review services related to industrial ventilation equipment. In order to choose this collection as a supplier, it is recommended to check and confirm the actual specifications of the services, the possibility of producing the desired dimensions and the technical details of the products before ordering.
Finally, to achieve proper performance and optimal working life, impeller selection should not be made solely on the basis of apparent size. Engineering review, selection of appropriate materials, accurate manufacturing, quality control and basic maintenance are a set of measures that help improve the performance of the centrifugal fan. By considering these criteria, one can follow the path of choosing and ordering the backward impeller of the centrifugal fan in different dimensions more consciously and according to the needs of each project.
