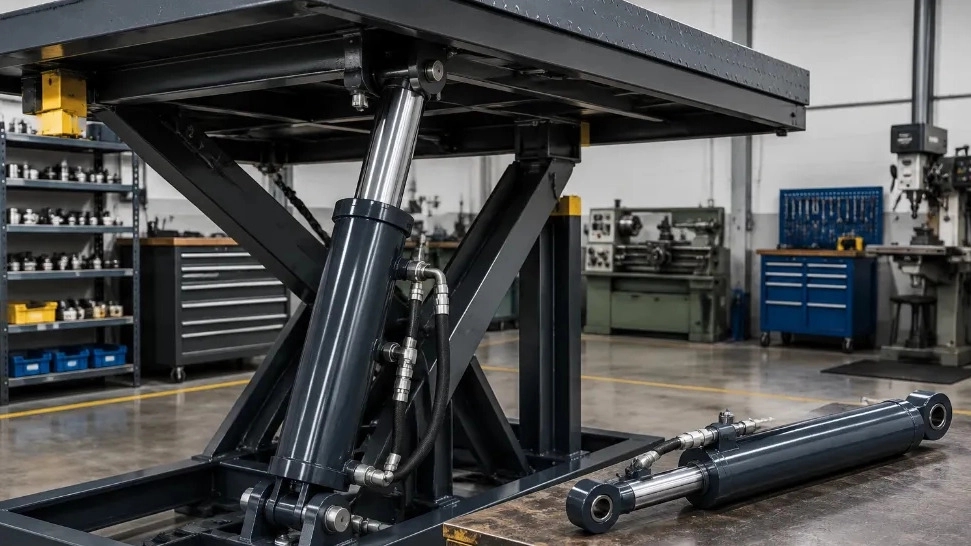

Production of shop lifting hydraulic jacks with customized dimensions is one of the most important solutions for equipping stores, warehouses, shopping centers, hypermarkets and multi-story commercial units. Many stores cannot use ready-made elevators with standard dimensions due to space limitations, differences in the height of floors, type of cargo, the size of the transfer path and the structural conditions of the building. In such a situation, the design and construction of the hydraulic jack according to the needs of the project improves the lifting performance and increases the safety, capacity and life of the system.
Shafiq Jack, as one of the groups active in the field of hydraulic equipment design and production, provides specialized services for the production of shop lift hydraulic jacks with customized dimensions. In this process, the dimensions of the lift, load weight, transfer height, movement speed, type of installation and conditions of use are carefully checked so that a jack suitable for the shop lift structure is designed and produced. The use of high-quality parts, proper sealing and engineering calculations play an important role in the stable performance of this equipment.
What is a shop lift hydraulic jack?
Hydraulic shop lift jack is one of the main components of the lift system, which is responsible for creating the necessary force to raise and lower the cabin or cargo platform. This jack converts the force produced in the hydraulic unit into linear movement by using hydraulic oil pressure. As a result, the jack piston moves and the lift cabin moves in the designated direction.
Store elevators are usually used to transfer goods, equipment, raw materials, cartons, pallets and various loads between floors. For this reason, the jack used in these lifts must be compatible with the actual load capacity and working conditions of the project. Choosing an inappropriate jack may reduce speed, increase depreciation, cause oil leaks or even cause safety hazards.
In the production of shop lifting hydraulic jacks with customized dimensions, all technical specifications of the jack are determined based on the needs of the consumer. Cylinder diameter, shaft diameter, stroke length, type of material, type of sealing and how to connect the jack to the structure are all effective factors in the final design.
Why is the custom dimensions of the hydraulic jack important?
One of the most important advantages of custom-made hydraulic jacks is the possibility of fully harmonizing them with the actual store space. In many projects, the elevator installation site is already built or part of the building has architectural restrictions. In such a situation, the use of ready-made jacks may require expensive changes in the structure.
Production of shop lift hydraulic jack with customized dimensions allows the jack to be made based on the available space, required height and type of lift. For example, if the space of the well is limited, the design of the jack can be done based on the appropriate length and diameter. Also, in projects where the load transfer height is high, the length of the jack course must be calculated carefully so that the full movement of the lift can be performed without additional pressure on the parts.
Customized dimensions make the capacity and power of the jack compatible with the operational needs of the store. This will not only improve the performance of the system, but also prevent the installation of additional parts and increase maintenance costs.
Application of hydraulic jack in shop lifts
Shop lifts are used in different environments. Chain stores, commercial warehouses, distribution centers, restaurants, hypermarkets, production workshops and office buildings are among the places that need hydraulic lifts.
Hydraulic jack in these lifts can be designed to move light, medium or heavy loads. The type of load and the amount of daily use determine the technical specifications of the jack. For example, a forklift that moves light cartons only a few times a day needs a different jack than a forklift that continuously moves heavy pallets in a distribution center.
In the production process of a shop lift hydraulic jack with custom dimensions, the type of use of the lift must be fully specified. The number of working times, the time of each cycle, the weight of the load, the environmental conditions and the expected speed are the information that are required for the exact design of the jack.
The advantages of producing a shop lift hydraulic jack with custom dimensions
Custom jack manufacturing has several advantages for shop owners and project managers. One of the most important advantages is the increased compatibility of the jack with the lifting structure. When the jack is designed from the beginning based on the needs of the project, the way to connect it to the chassis and cabin will be more accurate and less pressure will be applied to the structure.
Another advantage is the ability to choose the right capacity. A jack that is too weak cannot safely move the weight of the load, and a jack that is too large will increase the initial cost and energy consumption. Custom design helps the customer choose the actual capacity needed.
Increasing lifespan, smoother operation, reducing vibration, easier repair, reducing the possibility of leakage and better cost management are other advantages of this method. In addition, the customer can choose technical specifications such as stroke length, shaft type, body material and fitting model based on their needs.
Custom hydraulic jack design and production steps
The production process of a shop lifting hydraulic jack with custom dimensions must be done based on a technical and controlled process. The first step is to receive project information from the client. At this stage, the experts receive the necessary information about the lifting capacity, transfer height, dimensions of the installation space, movement speed and type of load.
In the next step, engineering calculations are performed. The diameter of the cylinder and shaft should be chosen in such a way that they can withstand the desired load with a suitable safety factor. The length of the course should also be determined according to the height of the floors and the type of lifting mechanism.
Then the technical drawing of the jack is prepared. In this map, the dimensions of the parts, the installation location of the connections, the type of threads, the location of the packings, and the construction details will be specified. After the approval of the design, the process of preparing raw materials and machining begins.
In the production stage, the cylinder tube, shaft, cylinder head, cylinder bottom and other parts are made according to the plan. The internal surfaces of the cylinder must be of good quality so that the piston moves smoothly. The shaft must also have enough resistance against pressure, bending and corrosion.
After assembly, the jack is subjected to various tests. Pressure test, leakage check, piston movement test and connection quality control are some of the measures that are done before delivery. These controls make the final product ready for use in a store elevator.
Choosing the right material to make the jack
The quality of raw materials has a direct effect on the performance of the hydraulic jack. The jack cylinder must be made of suitable and strong steel to withstand internal pressure and lateral forces. The inner surface of the cylinder must also be smooth and precise so as not to damage the packings.
The jack shaft is usually made of durable steel, and in many projects, its surface is plated or polished to increase resistance to corrosion and wear. Choosing the type of shaft depends on the environmental conditions, the amount of use and the lifting capacity.
Packings and seals are also considered sensitive parts of the jack. Using an improper seal can cause oil leakage, pressure drop, and reduced system efficiency. In the production of a shop lifting hydraulic jack with custom dimensions, oil type, ambient temperature and working pressure should be considered when choosing seals.
Factors affecting the price of a hydraulic jack for a store lift
The price of a hydraulic jack depends on various factors and the same amount cannot be determined for all projects. Jack dimensions, cylinder diameter, shaft length, stroke length and tolerable capacity are the most important factors affecting the final cost.
The type of steel and the quality of raw materials also affect the price. A jack manufactured for continuous work and heavy load usually requires more durable parts and a more precise manufacturing process. Also, the type of connections, the installation model, the number of jacks used and the need for plating or protective coatings can change the cost.
The cost of design, machining, assembly and testing should also be included in the final estimate. Shafiq Jack tries to propose a solution according to the customer's budget and technical conditions after carefully examining the needs of the project. Choosing a product based on quality and technical suitability will reduce repair and downtime costs in the long run.
The difference between a standard jack and a custom jack
Standard jacks are usually produced in specific dimensions and capacities. These products are suitable for projects whose installation space and work requirements are compatible with the sizes available in the market. However, in many shop lifts, the project conditions are specific and the use of standard jacks may not give the desired result.
Customized jack is designed based on the real needs of the project. For this reason, it is more possible to coordinate it with the installation space, lifting capacity and type of structure. Also, in the customized model, the details of connections, course length, and jack positioning can be determined more precisely.
Manufacturing shop lift hydraulic jack with customized dimensions is a more suitable choice for projects that have limited space, specific height or different capacity. This type of jack can make the lifting operation more stable and prevent unnecessary changes to the structure.
Important points when ordering a hydraulic jack
Before ordering a hydraulic jack, complete information about the project should be provided to the manufacturer. The most important information is the exact weight of the load, the dimensions of the cabin, the height of the transfer, the number of stops and the amount of daily use.
Also, it is necessary to specify whether the lift is designed to carry goods or is used for another purpose. The type of load, the center of gravity of the load and how it is placed on the cabin can affect the choice of jack capacity.
Environmental conditions are also very important. If the jack is installed in a wet, cold, hot, dusty or corrosive environment, the appropriate material and sealing must be selected. Providing a map of the installation location or images of the project space can also make the design process more accurate and faster.
Safety in the use of hydraulic lifting jack
Safety should be considered in all stages of design, production, installation and operation of hydraulic jack. The jack alone is not responsible for ensuring the safety of the entire lift, but the quality of construction and its fit with the system plays an important role in overall safety.
Using flow control valves, safety valve, fall prevention system, suitable hoses and standard fittings are essential. Also, the lifter should be periodically checked for oil leakage, pressure drop, shaft health, and the condition of the seals.
Loading more than the designed capacity can put too much stress on the jack and other lifting components. Operators must know the allowable capacity and avoid moving unbalanced or off-center loads. Regular service and the use of suitable hydraulic oil also help to increase the safety and life of the equipment.
Why choose Shafiq Jack?
Focusing on the design and production of customized hydraulic jacks, Shafiq Jack tries to provide a product that fits the real needs of each project. Detailed examination of technical specifications, use of suitable raw materials and attention to construction details are part of the approach of this group in the production of hydraulic equipment.
One of the advantages of working with Shafiq Jack is the possibility of consulting before ordering. The customer can provide his project information and after expert review, decide on the capacity, dimensions and type of suitable jack. This prevents wrong choices and additional costs.
Production of shop lifting hydraulic jack with customized dimensions is done in Shafiq Jack based on the needs of the project. Controlling the quality of parts, testing performance and paying attention to proper sealing helps to increase the durability and stability of the product. The services of this collection can be used for stores, distribution centers, warehouses and industrial projects.
Maintenance of shop lift hydraulic jack
Correct maintenance has a great effect on increasing the life of the jack. Regular checking of oil level, leakage control, cleaning around the shaft and check of lifting operation should be done according to the schedule. Seeing oil on the shaft or around the joints can be a sign of damage to the seals.
If you notice a decrease in speed, unstable movement, unusual noise or loss of lifting power, it is better to check the system as soon as possible. Continuing to work with a leaking or depressurized jack can cause further damage to the pump, valves, and other components.
Hydraulic oil should be changed at the right time and the combination of incompatible oils should be avoided. Also, the environment around the jack should be as clean as possible so that dust and pollution do not enter the sensitive parts. Periodic service by an expert technician will reduce the cost of major repairs.
summary
Production of shop lifting hydraulic jack with customized dimensions is a practical solution for projects that require precise performance, suitable capacity and complete coordination with the installation space. Choosing a jack based on actual dimensions, load weight, transfer height and working conditions increases safety, reduces depreciation and improves lifting efficiency.
Custom hydraulic jack can be designed for all kinds of stores, warehouses, distribution centers and business units. By providing consulting, design, production and testing services, Shafiq Jack provides the possibility of making a jack that fits the needs of each project. In order to receive technical information and estimate the cost, it is better to provide the specifications of the lift and the installation space to Shafiq Jack's experts so that the most appropriate solution can be suggested.
