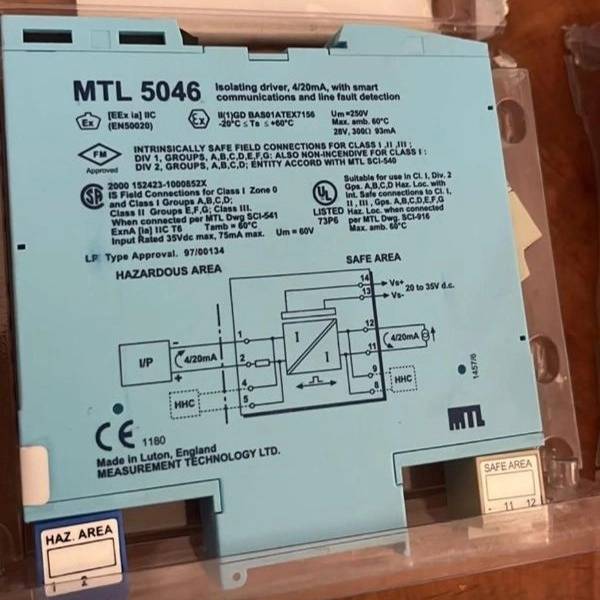

MTL 5046: Isolated Driver with Smart Communication and Error Detection

Features and technical specifications Model: MTL 5046 Type: Isolated Driver Input/output: 20/4mA Communication: intelligent with error detection Safety: (EEx ia) IIC, EN50020 Technical details - Input voltage: maximum 35 V DC, 75 mA - Output voltage: 28 volts, 93 mA - Maximum voltage: Um = 250V - Ambient temperature: maximum 60 degrees Celsius - Approvals: - Approved for DIV 2, groups A, B, C, D - Approval LP No. 97/00134 - Approvals for safe connections with MTL SCI-540 and MTL Dwg SCI-541 Safety and approvals - Suitable for: - Class I, Div. 2, groups A, B, C, D - Class I Zone 0, groups A, B, C, D - Class II, groups E, F, G - Class III - Safe conditions: Um = 60V, ambient temperature up to 60°C - Complies with: ExnA (ia) IIC T6 Applications MTL 5046 is used as an isolated driver with intelligent communication and fault detection capabilities in hazardous and intrinsically safe industrial environments. This device is suitable for oil and gas, petrochemical industries
