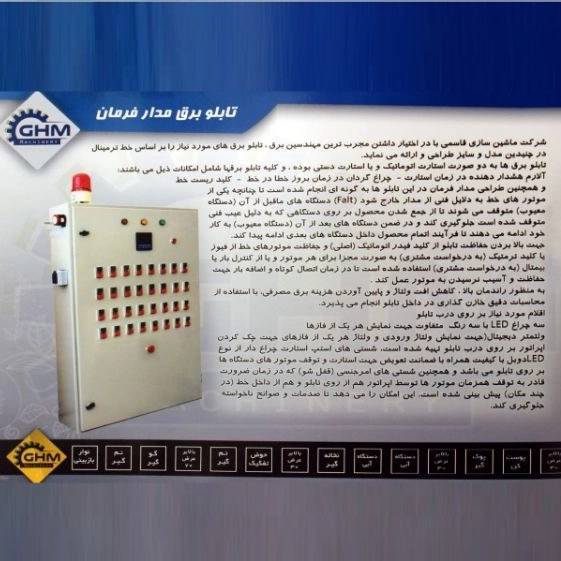

Ghasemi Machine Manufacturing Company, with the most experienced electrical engineers, designs and delivers the required electrical panels based on the terminal line in the Chenidine model and size.

The electrical panels have two types of automatic start or manual start, and all electrical panels include the following features:

- Warning alarm at the time of starting

- Rotating light when there is an error in the line

- The line reset key as well as the design of the control circuit in these panels have been done in such a way that if one of the line motors is out of the circuit for technical reasons (Falt) the devices before that defective device are stopped in order to prevent the accumulation of the product on the device that is stopped due to a technical fault, and at the same time, the devices after that defective device) continue to work until the product completion process inside the devices Continue next. In order to increase the protection of the panel, the automatic feeder switch (main) and the protection of the line motors, fuses or thermal switches have been used separately for each motor at the customer's request, or the open control or Bimetal has been used at the customer's request, so that during short circuit and excess load to protect and not damage the engine. In order to achieve high efficiency, reducing the voltage drop and reducing the cost of electricity consumption, it is done using accurate calculations of capacitors inside the panel.

Required items on the board door Three LED lights with three different colors to display each of the phases, a digital voltmeter to display the input voltage and the voltage of each of the phases to check the operator has been prepared on the panel door. The step start buttons with lights are of double LED quality with the guarantee of changing the direction of starting and stopping the engines of the devices on the board. And also the emergency lock buttons, which are able to stop the motors at the same time by the operator both from the panel and from inside the line in several places. This allows to prevent injuries and unwanted incidents.
