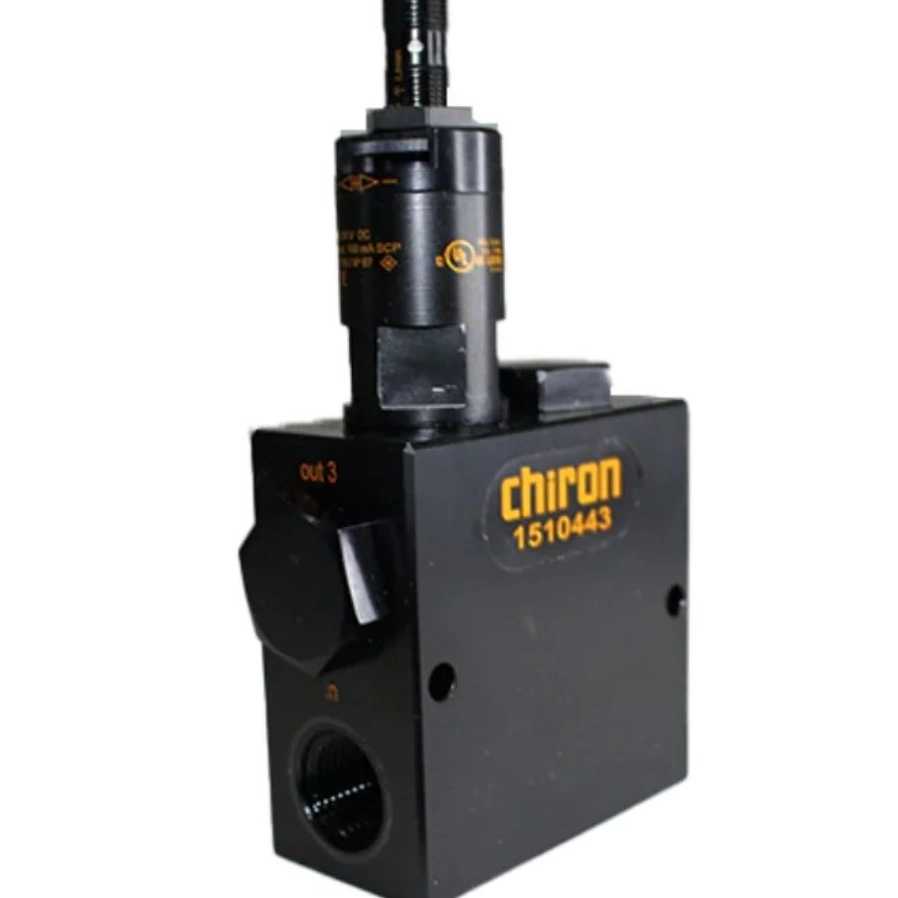

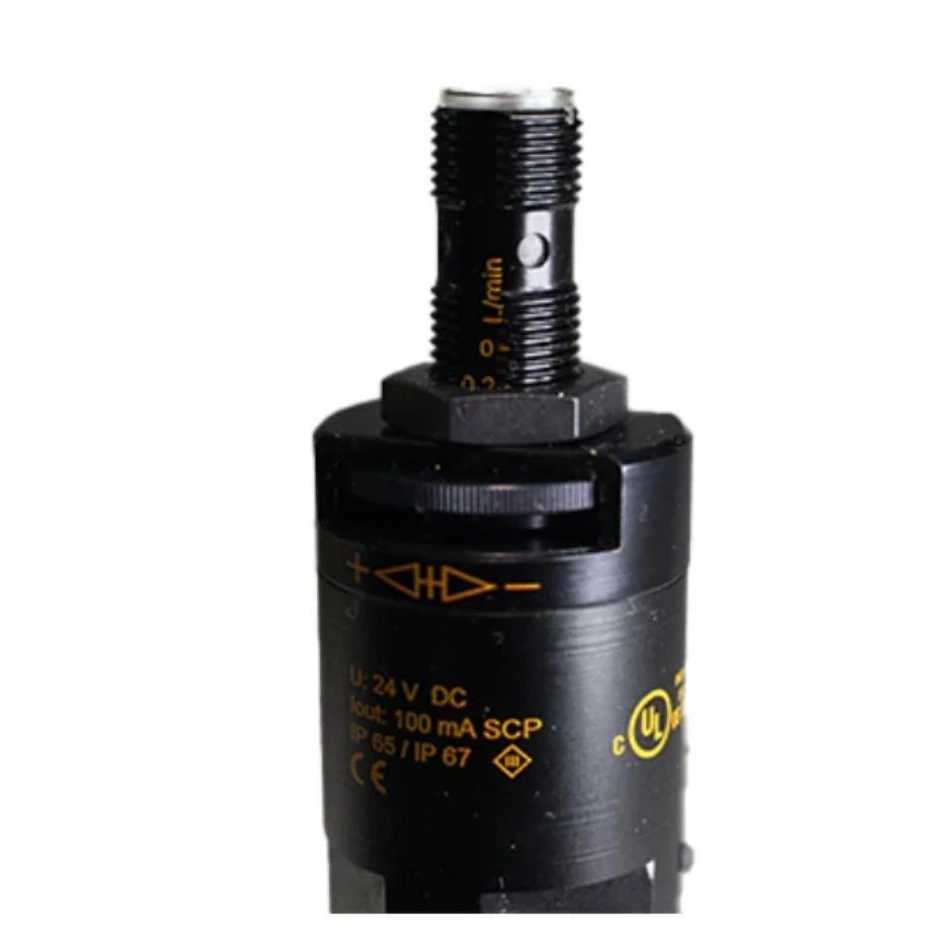

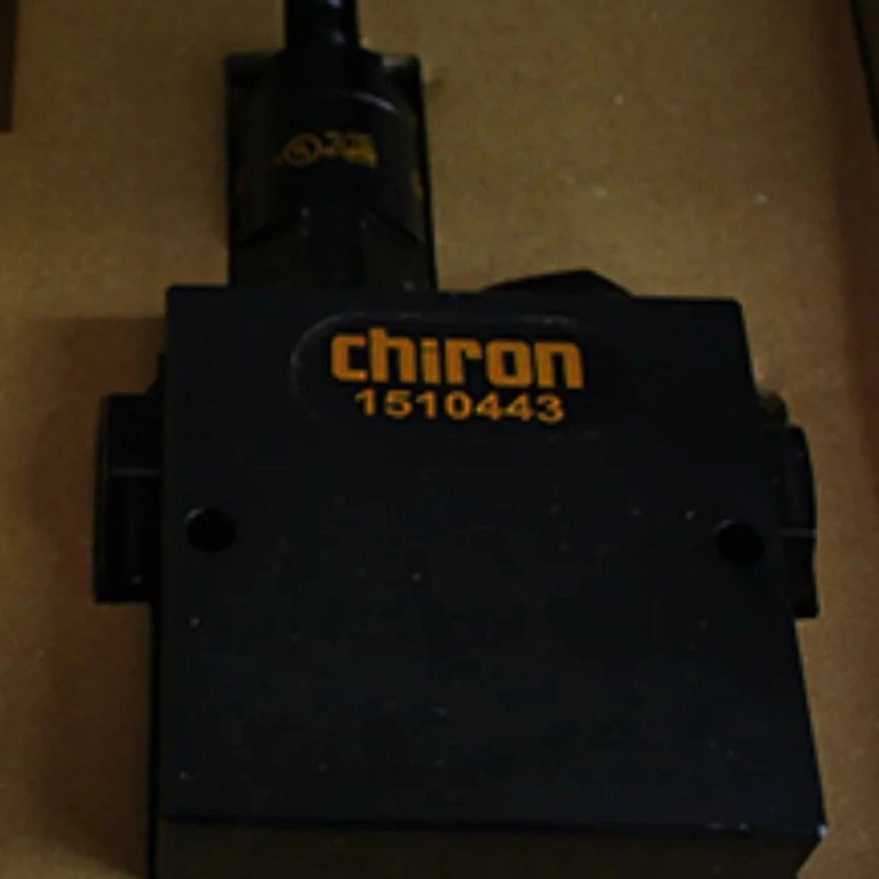

IFM flow sensor CHIRON 1510443

is an advanced sensor for measuring and monitoring fluid flow in industrial applications. This sensor with its precise features is specially designed for machine tools and internal cooling systems of drills. Below are the specifications and applications of this sensor:

Technical specifications:

Connections and Design:

• Number of digital outputs: 1

• Process connection type: G 1/2 (threaded connection)

p> • Weight: 767 g

• Body material: anodized aluminum, PA plastic

• Material of parts in contact with fluid: stainless steel (1.4301 and 1.4310), PBT, PU , FKM O ring

Performance range:

• Working voltage: 10 to 30 DC Volt (SELV/PELV)

• Current consumption: less than 15 mA

• Electrical protection class: III

• Output type: digital signal (PNP ), operation as Normal Open

• Flow measurement range: 0.3 to 25 liters/minute

• Maximum measurable flow: 75 liters/minute

Accuracy and response time features:

• Repeatability: 1% of the final value

• Measurement error: ±5% of the final value

• Response time: less than 0.01 seconds

• Hysteresis: 0.1 to 1 l/min

Operating conditions:

• Working environment temperature: 0 to 60 degrees Celsius

• Storage temperature: -15 to 80 degrees Centigrade

• Maximum withstand pressure: 200 bar (20 MPa)

• Degree of protection: IP65 and IP67 (excellent protection against dust and water)

p>

Tests and certifications:

• Shock resistance: according to DIN EN 60068-2-27 (20g to duration 11 milliseconds)

• Vibration resistance: according to DIN EN 60068-2-6 (5g in the range of 10 to 2000 Hz)

• MTTF (mean time to failure): 15.78 years

Display features:

• LED display: 4 yellow LEDs to display the status Switching

Applications:

1. Internal cooling systems: especially in drilling machines and drills that need accurate measurement of cooling fluid flow.

2. Machine tools: monitoring fluid flow in precision tools and reducing the risk of failure.

3. Management of cooling processes: application in industries that They use oils or cooling fluids.

4. Pressure and flow control: use in high pressure industrial environments.

Recommendations:< /p>

• It is better than filters with a capacity of 200 microns to maintain accuracy and longevity...
