Cochlear Sand is one of the key equipment in the mineral processing and sand production industry used for washing, separating and separating fine and large particles. It is also classified into sandy and filler equipment and has an important role to play in improving the quality of sand output products, and this product can be manufactured and manufactured in various dimensions such as 9 -meter salty sand and 7 meters salty sand in the gold industry.

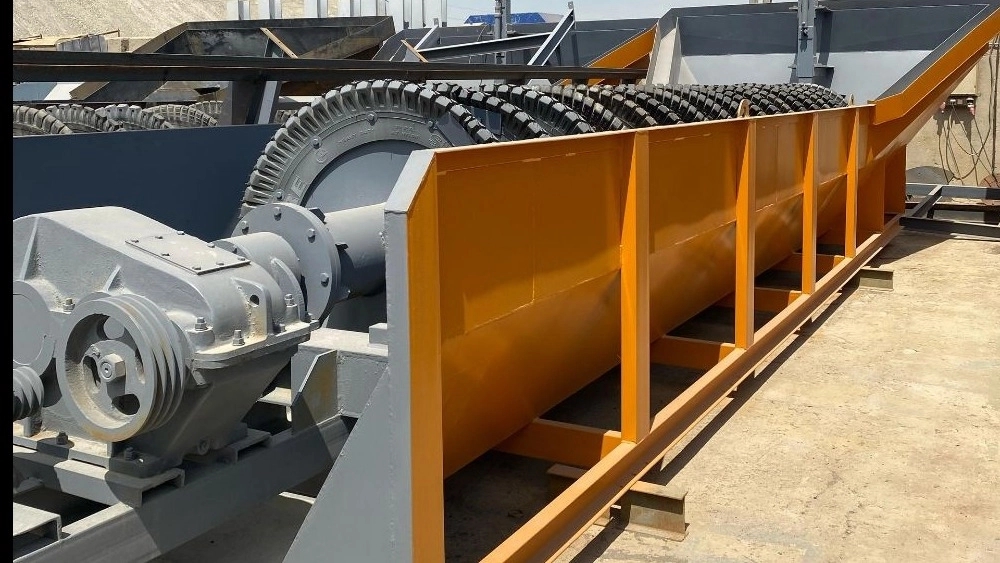

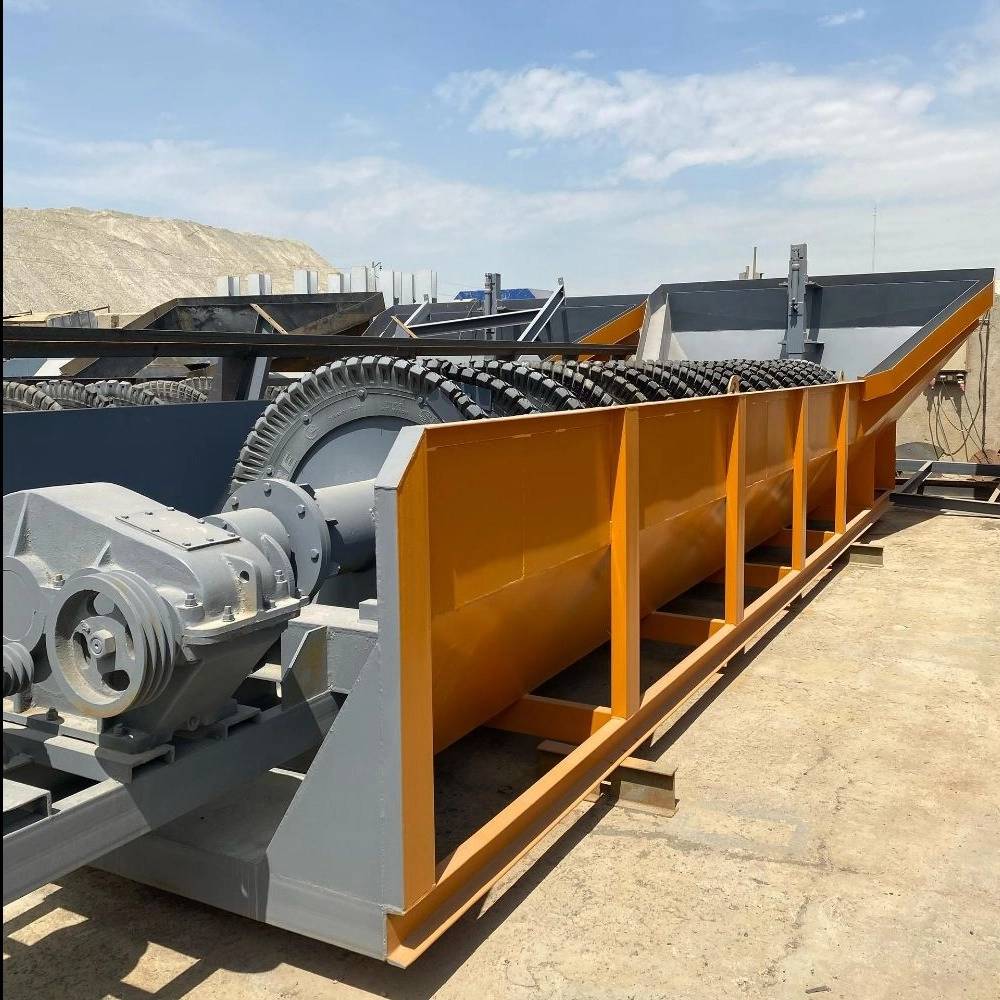

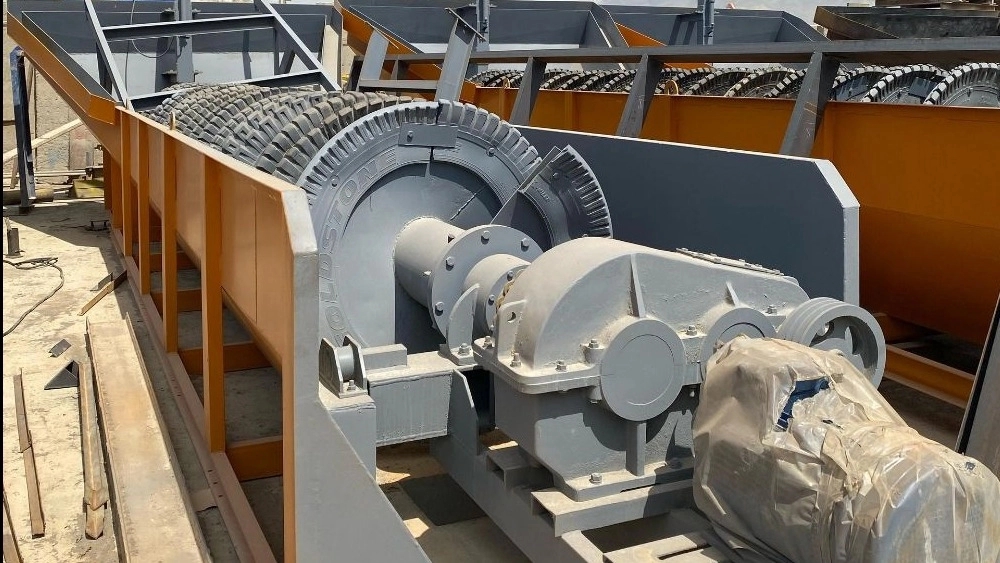

The spiral or coil salty sand consists of the following components: * Resistant metal body: Designed in the form of a rectangular or cylindrical tank. * Spiral or snail: which moves and separates the material. * Electromotor and gearbox: Power transfer for spiral rotation. * Sprinkler nozzles: To wash the sand uniformly and remove flowers and light materials. * Strength bearings and fittings: To bear weight and prevent high tremors. Sometimes to improve washing efficiency, this device is used with hydrocyclone to separate very fine fillers.

The process of functioning of the saline sand machine is as follows: 1- Slur entry: Mixed water and minerals enter the input of the machine. 2. Washing and moving materials: The spiral with its rotation directs larger and heavier particles to the outlet. 3. Discharge of fine materials: Lighter particles (filler and flower) are separated from the drainage ducts with water. 4- Cain segregation: Depending on the design of the device and the proper installation and sloping, the sand is separated by specified sizes and this is very important for miners.

- Wash and remove mud from sand grains. - Improve the quality of sand production for concrete and asphalt. - Separation of coarse and fine particles for the production of standard sand.

- Lead, zinc, copper and magnetite and hematite iron ore after Asia

* Cost of construction and maintenance than hydrocyclone. * Simple structure, long life and require less repairs. * Ability to wash and separate the high volume of materials per unit of time. * Continuous and reliable performance even in hard work conditions.

The washing capacity varies from 1 to 2 tons per hour depending on the length and diameter of the spiral. Custom design for higher capacities is also possible by the goldsmiths equipment.

* Body: ST37 sheet is high in abrasion. * Spiral: From a proper thickness. * Bearings: High -resistant alloy steel and vibration.

Coil saline sand depending on the slope adjustment, spiral speed and sprinkler design can be different from: * Soft sand (1 to 2 mm) * Medium sand (1 to 2 mm) * Produce fine sand (1 to 2 mm). This feature allows the device to act as both sandy and as a filler.

The price of the device depends on the following factors: - Capacity (tone per hour) - Material - Design Type (Custom or Standard) - body dimensions and spiral diameter - Extra options such as mobile hydrocyclone, automatic washing system and ... You can contact the goldsmiths of the Zarineh Industry Equipping Industry for accurate prices and expert advice.

1- Engineering design based on project requirement.

* Preparation of a solid bed and alignment to prevent vibration. * Installation of the proper slope of the device (usually 1 to 2 degrees) * Exact electromotor and gearbox alignment. * Install inlet water lines with enough pressure to nozzles. * Proper design of heavy and muddy water discharge system. The installation and commission consulting of the device is provided by the experienced team of the goldsmiths of the Zarineh Industry.

Curriculum program: * Daily: Visual review of the machine and surface cleaning. * Weekly: Lubrication of bearings and examination of outputs. * Monthly: Controlling device alignment and reviewing spiral abrasion. Seasonal: Replacement of depreciated parts, complete gearbox review.

• Use appropriate lubricants and lubricants. • Clean the nozzles to prevent cramps. • Control of straps and coupling. • Examine and fix any vibration or abnormal sound quickly. • Ensure that the discharge of materials and water is open.

• Complete power out of the device before any service. • Use standard tools and safety coating. • Avoid direct contact with moving parts in bright mode. • Use water -controlled water to wash the device.

The goldsmiths of the Zarineh Industry, using technical expertise, quality material and engineering design, produce the best cochlear sand machines for various industries in the country. If you are looking for high efficiency, low maintenance costs and long shelf life, contact us today.
